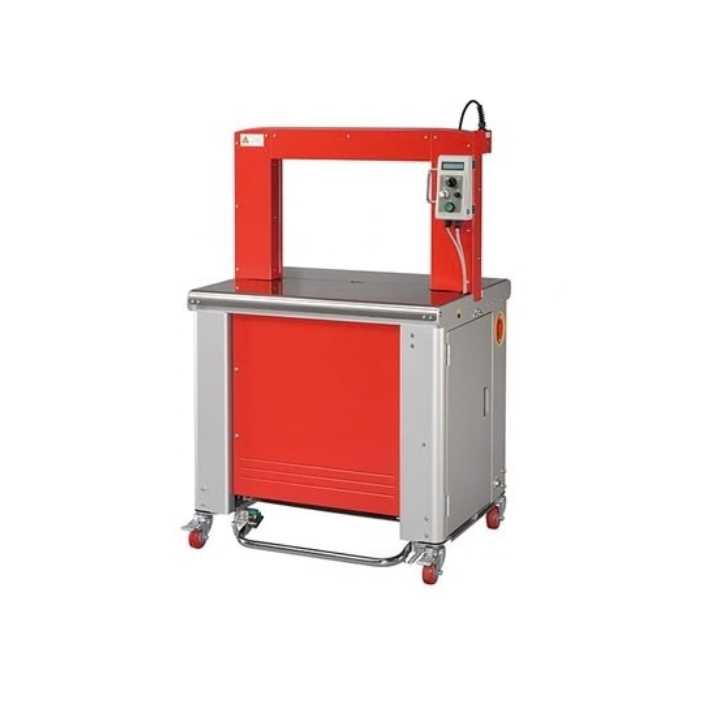

STEP TP-702-15W Automatic Strapping Machine

Reference 41190215-A65.50 Items available 0

0.00 DKK

Tax excluded

Fully automatic high-speed strapping machine designed for 15.5 mm PP strap, featuring a 650 × 500 mm arch, electrically adjustable tension, and foot-bar operation.

Delivery date will be informed on order confirmation

The STEP TP-702-15W is a fully automatic high-speed strapping machine designed for efficient and reliable packaging operations. It provides fast strapping speeds of up to 60 straps per minute and uses 15.5 mm PP strap.

The machine features electrically adjustable strap tension, automatic strap feeding, a convenient front foot-bar switch, and a mobile design with castor wheels. The 650 × 500 mm arch makes it suitable for a wide range of cartons and packaged products.

Option

-Photocell with timer box

Technical Specifications
Model	STEP TP-702-15W
Arch Size	W650 × H500 mm
Strap Type	PP strap
Strap Width	15.5 mm
Strap Core	Ø200 mm
Strapping Speed	Up to 60 straps/min
Tension Range	1–45 kg, electrically adjustable
Machine Dimensions	1350 × 770 × 1650 mm
Net Weight	167 kg
Electrical Requirements	230 V, 50 Hz, 1Ph
Item Number	41190215-A65.50
