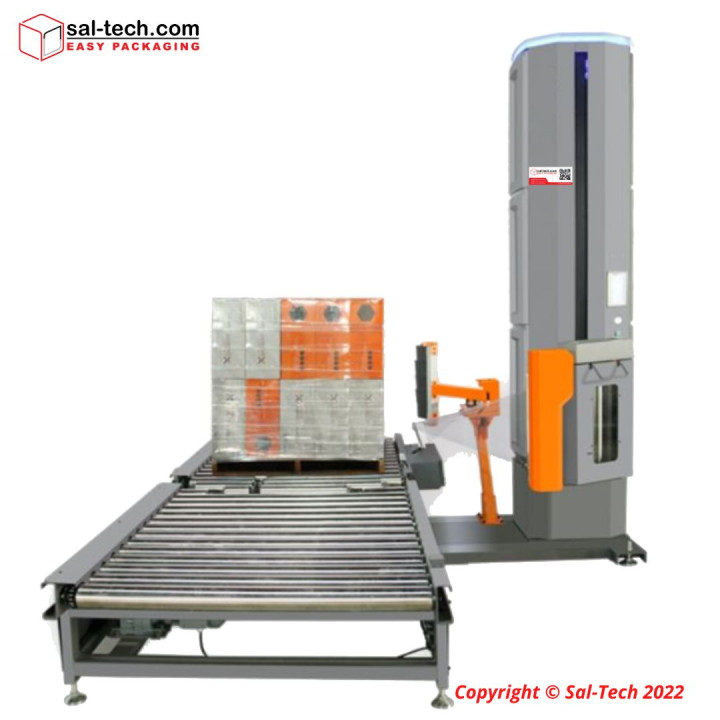

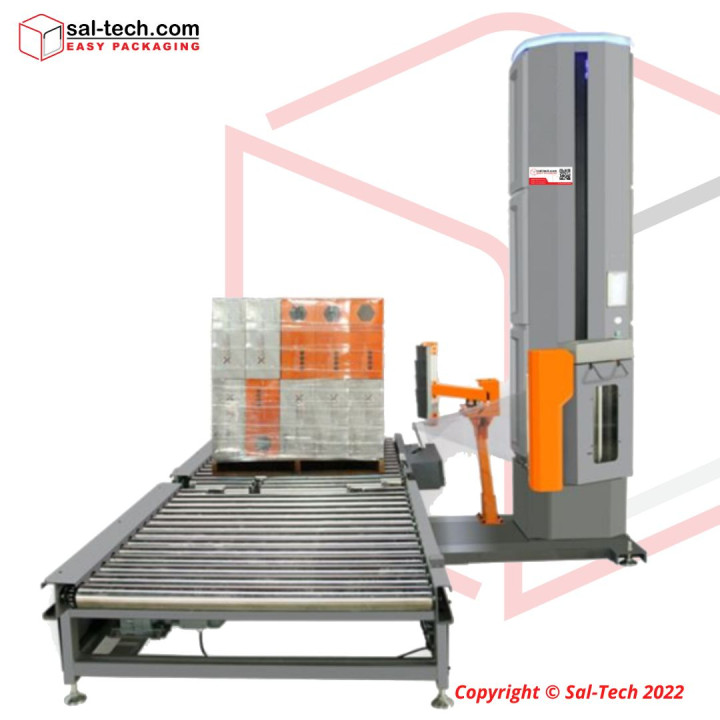

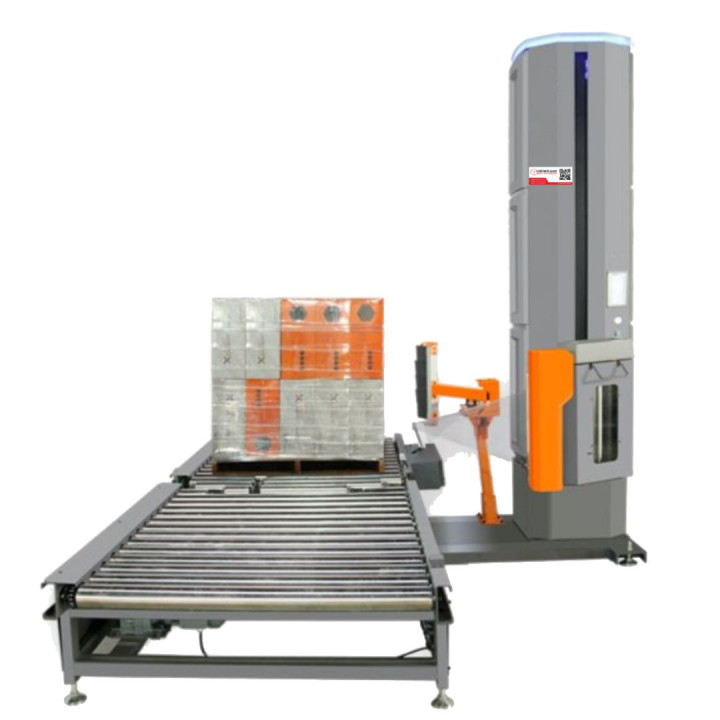

STEP S300 Fully Auto Pallet Wrapper

Reference 43010300 Items available 0 Condition New

kr149,800.00

Tax excluded

STEP S300 Fully Auto Pallet Wrapper is a 300% pre-stretch rate, saving 30% film compared to a typical pallet wrapping machine.

Out-of-Stock

Automatic pallet grip system in which the film bottom narrows to form a film rope, and the film rope grips the pallet and the items while wrapping.

Features:

1. Save Packing Supplies
2. Pallet gripping mechanism that works automatically
3. Intelligent Control Panel
4. Turntable with Slewing Bearings
5. Conveyor that is long-lasting
6. Heat type cut film and clamp film function in a new design
7. Control System SIEMENS
8. Remote control System

Specifications
Model	STEP S300 Fully Auto Pallet Wrapper
Item No.	43010300
Maximum wrapping speed	25-30 loads/hour
Load Size	1.2x1.2m
Maximum Wrapping Height	2300mm
Turntable Speed	0-16RPM(Adjustable)
Turntable Size	1800mm(length side)
Turntable Drive	1.5PH
Film & Clamp Cut	Automatic (Heat type)
Max load weight	2000KG
Standard Film Width	500mm
Constant Film Delivery Force	Standard
Standard Pre-Stretch	250% pre-stretch
Roller Materials	Galvanized Roller diameter:76mm
Film Capacity	250mm Diameter
Film Delivery System	Power Roller -Stretch Plus
Film Rope System	Optional
Weighing Scale	Optional
Machine Weight	1200KG
Machine Size	Approx. L:3202 x W:2006 x H:3202 mm See Layout
Turntable technology	Slewing Ring
Voltage	380V/50HZ 3phase
