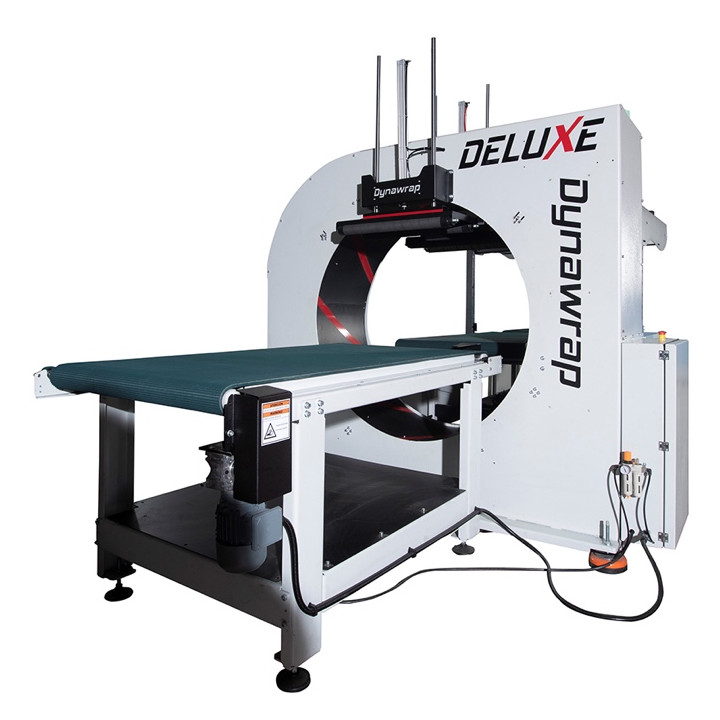

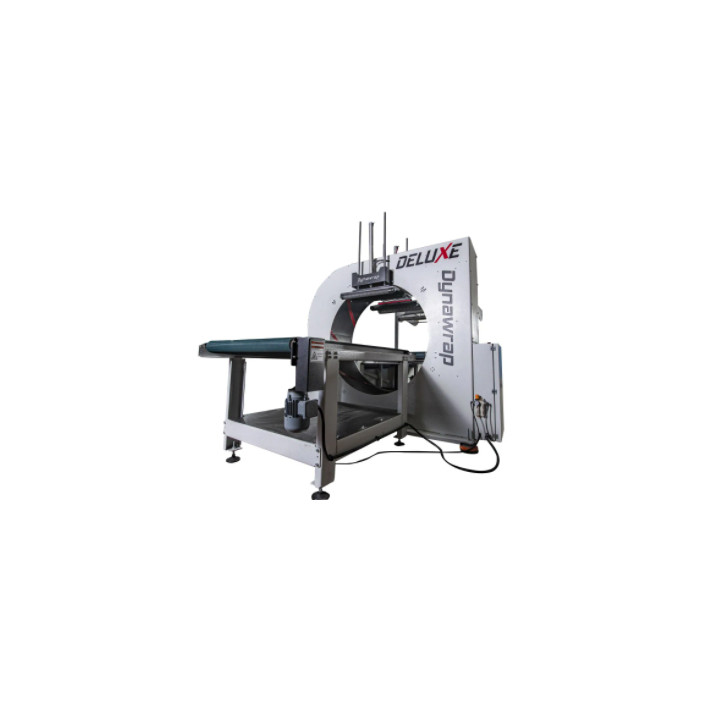

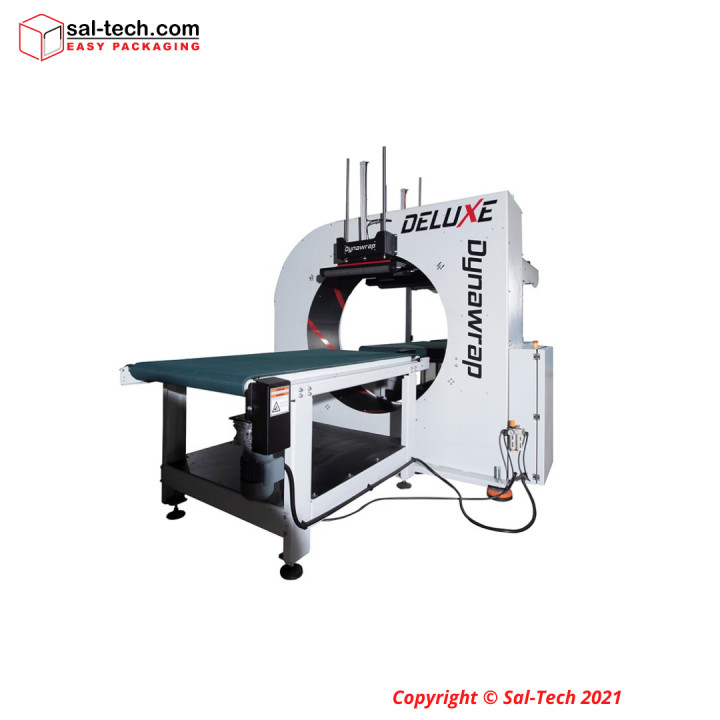

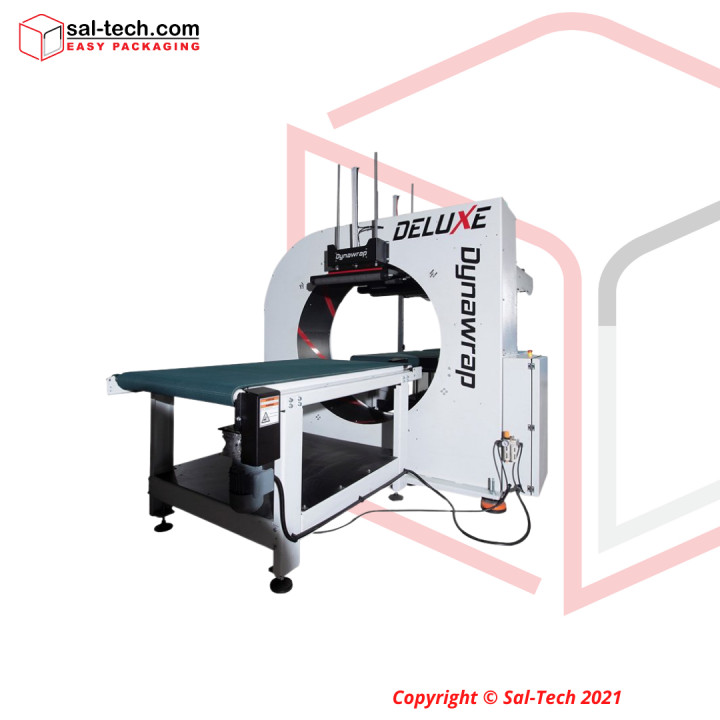

STEP DW Pro 1400

Reference 43800100-1400 Items available 0 Condition New

kr0.00

Tax excluded

STEP DW Pro 1400 is Heavy on Features Affordable on Price. For high-volume operations, the Perfect Pro Series Fully automated orbital wrapping system delivers the perfect combination of high speed, through put and efficiency.

Out-of-Stock

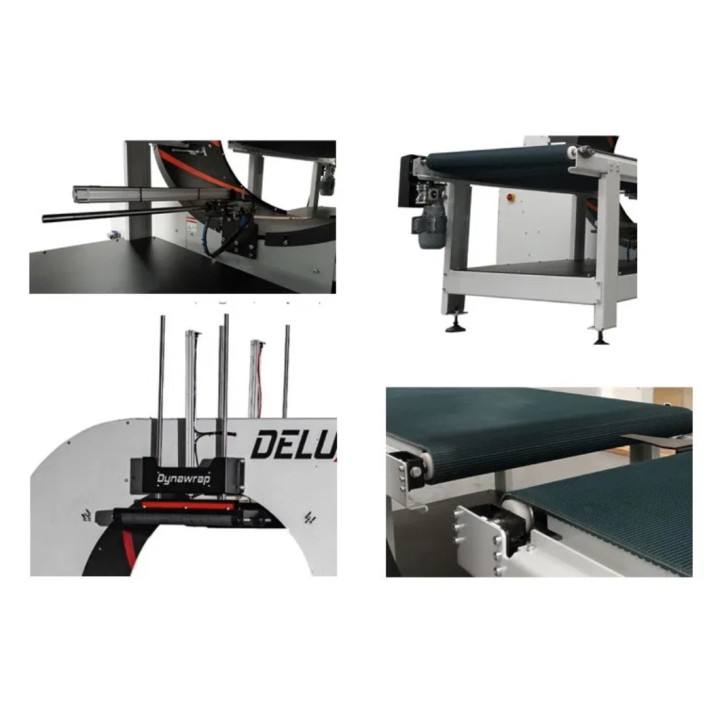

Standard Package INCLUDES

• Top Presses
• Cutting and Clamping Unit
• Motorized Infeed and Outfeed Conveyors
• Smart Touch Panel
• PLC Control Automation
• Short Part Bridge

Specifications
Model	STEP DW PRO 600	STEP DW PRO 1100	STEP DW PRO 1400	STEP DW PRO 1700
Ring Diameter	600	1100	1360	1700
Max Width (mm)	1600	2250	2600	2600
Max Height (mm)	1400-1680	1850-2250	2200-2650	2300
Conveyor Height (mm)	700	870-900	870-900	870-900
Conveyor Width (mm)	400	750	900	1000
Infeed Conveyor Length (mm)	1300	1300	1300	1800
Welding Unit Conveyor	1200	1800	1800	1800
Outfeed Conveyor	1300	1300	1300	1800
Conveyor Load Capacity (kg/m)	100	120	120	140
Max. Crown Velocity (rpm)	120	80	70	45
Total Weight (kg)	320	710	950	1700
Welding Unit Weight (kg)	260	360	410	480
Installed Power (kw)	2-2	3	3	3.75
Power Supply (V)	400V 3Ph+N 50/60 Hz	400V 3Ph+N 50/60 Hz	400V 3Ph+N 50/60 Hz	400V 3Ph+N 50/60 Hz
Working Pressure (Bar)	5-7	5-7	5-7	5-7
Item Number	438000100-0600	438000100-1100	438000100-1400	438000100-1700
