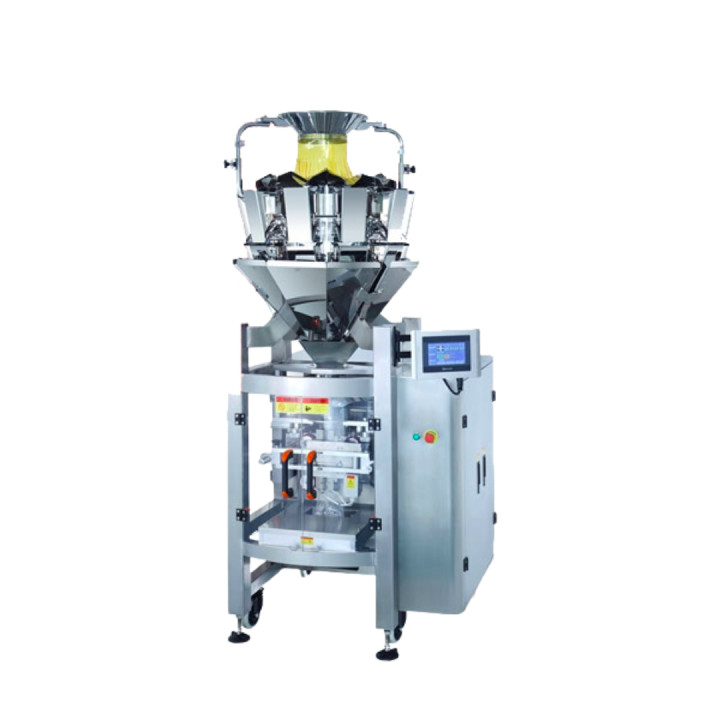

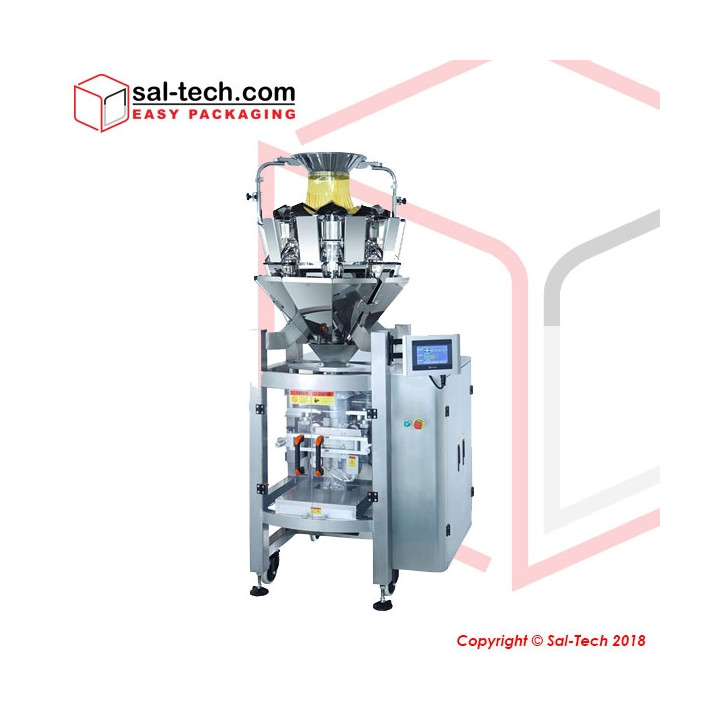

STEP VFFS V420.2 + MHW-14-10 Vertical bag packaging machine

Reference 48381220 Items available 0 Condition New

kr199,990.00

Tax excluded

STEP VFFS V420.2 + MHW-14-10 - Double Servo Vertical Bagging machine + Multihead Weigher 14head 1L, is a complete product that will do Weighing, Filling, Film Pulling, Bag Punching, printing and counting. A great Combination for a Vertical Bagging Machine with 14 Head Multihead Weigher, it is a complete automatic weighing machine.

#Project machine for agreement of specification#

STEP VFFS V420.2 + MHW-14-10 - Double Servo Vertical Bagging machine + Multihead Weigher 14head 1L, is a complete product that will do Weighing, Filling, Film Pulling, Bag Punching, printing and counting.

Features:

• Microcomputer Scale, unique operation and improved weighing and packing features.
• PLC with Touch Screen convenient for operation and maintenance.
• Compact Size, unique one-piece structure, reduces factory height requirement.
• Precise positioning, Servo control film pulling and electric film tracking.
• 14 heads
• 10-750gram weighing range
• Stainless steel machine frame
• Controlled by PLC and HMI
• Max film width: 420mm
• Packing speed: 25-100 bags per min
• Bag width: 60-200mm
• Bag length: 50-230mm
• End sealing pneumatic
• Film pulling Servo driven
• 230V 50Hz power supply
• Air supply 0.65Ma 0,6m3/min
• Dimension 1450 x 1050 x 2400
• Weight 800kgs
