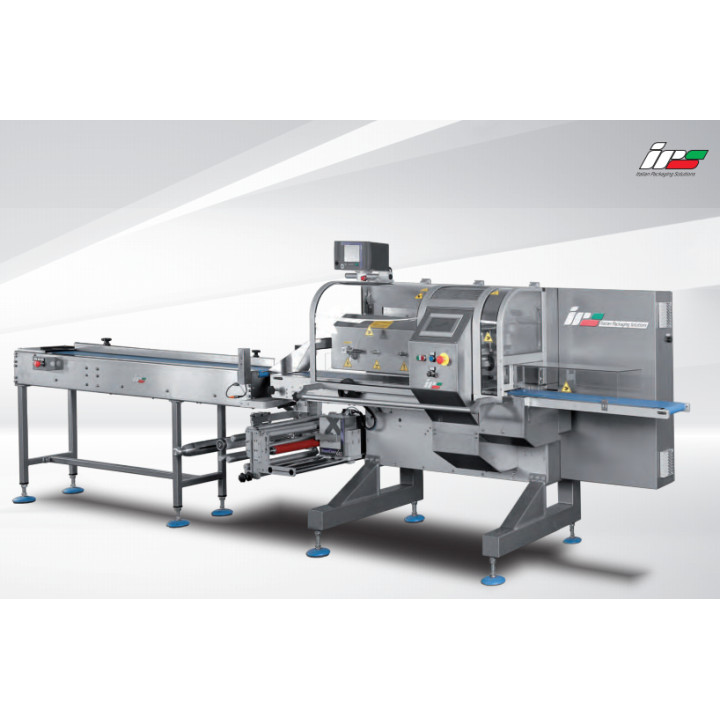

STEP FBR-50 Flow pack from IPS Italy

Reference 43852050 Items available 0 Condition New

kr0.00

Tax excluded

Electronic rotary jaws flow-pack machine with film roll from the bottom. Its main features are reliability and adaptability, which

allow the machine to fulfill both medium and high production requirements. Also available with different automatic feeding systems. It is an ideal solution for sticky products.

Out-of-Stock

Rotary jaws flow pack machine with film roll from the bottom

- Machine structure in steel with covers in stainless steel
- Product contact parts in stainless steel
- 2000 mm long infeed conveyor with nylon pushers
- 3 sets of wheels for longitudinal sealing
- Transverse rotary sealing jaw
- Reel holder with air expanding shaft
- Discharge conveyor belt complete of AC motor
- 4 brushless servo motors
- Motorised film unwinding
- Control panel with a 7” HD touch screen
- Remote maintenance

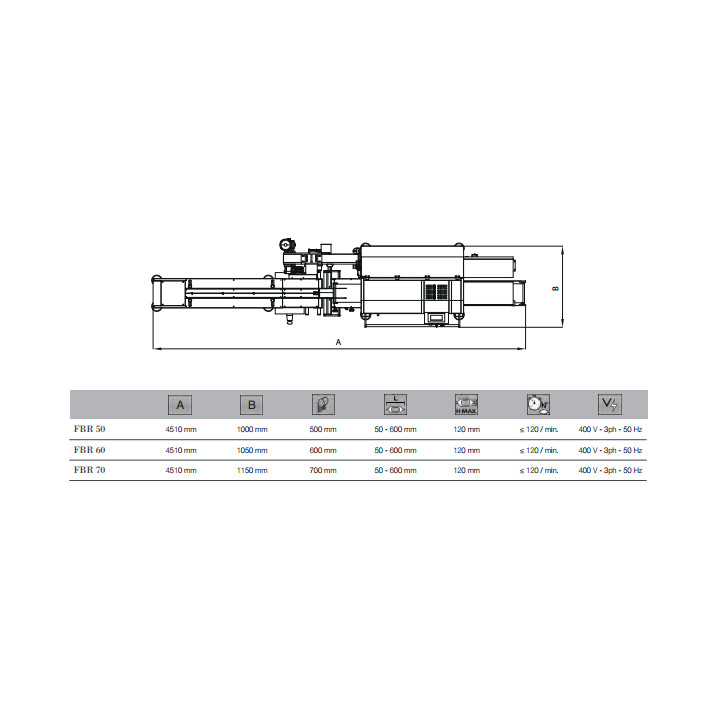

Specifications
Model	STEP FBR-50 Flow Pack	STEP FAR-60 Flow Pack	STEP FBR-70 Flow Pack
Dimensions L x W	4510mm x 1000mm	3800mm x 1060mm	4510mm x 1150mm
Film	500mm	600mm	700mm
Speed	≤ 120/ min	≤ 120/ min	≤ 120/ min
Power	400 V - 3ph - 50 Hz	400 V - 3ph - 50 Hz	400 V - 3ph - 50 Hz
Item No.	43852050	43852060	43852070

Optional

- Photocell for print registered film
- Photocell “no product no bag”
- Belted infeed conveyor
- Pneumatic opening of wheels (longitudinal sealing)
- Printers
- Labelling devices
- Two or more up-jaws
- Double film reel holder
- Automatic film splicer
- Automatic feeding systems
- Zig-zag knife
- Euroslot die cutting system
- Full Inox version
