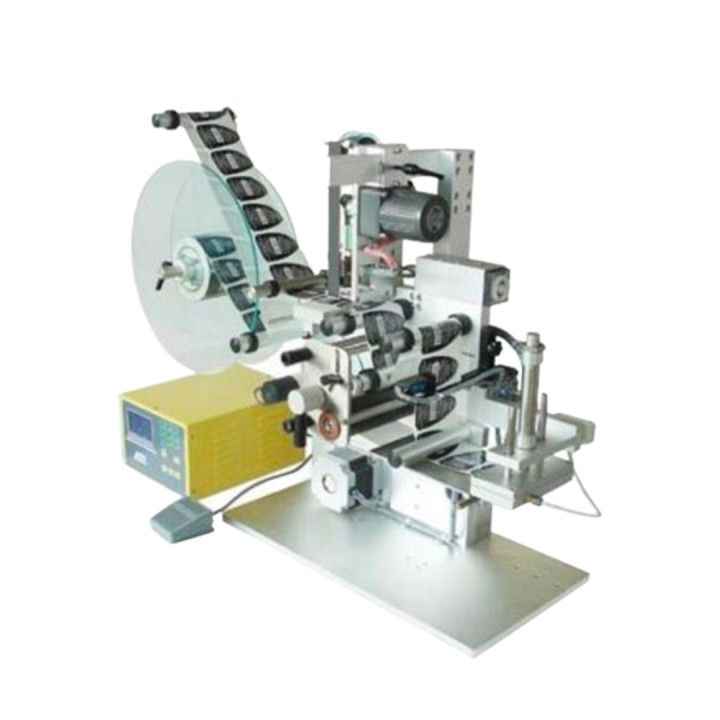

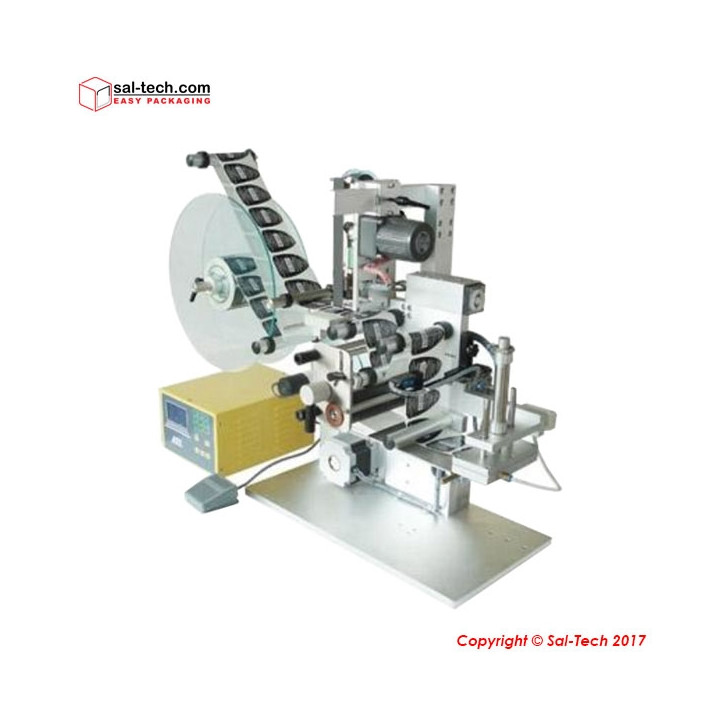

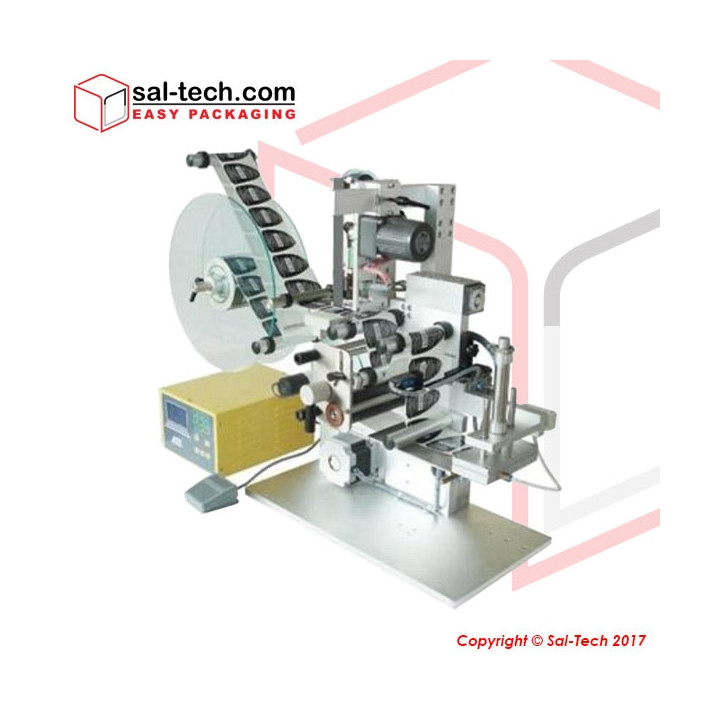

STEP ATL-106 Square Shapes and Doy Bags Labelling Machine

Reference 42217140 Items available 0 Condition New

kr0.00

Tax excluded

Semi-automatic labeling machine perfect for squared-shaped, irregular-shaped bottles, doy bags, and paper coding. This enhances labeling operation speeding from 20 up until 40 bottles per minute. Securing accuracy and swiftness of processes for increased productivity.

Out-of-Stock

STEP ATL-106 is a labelling machine for irregular bottles at high speed. This uses manual feeding of 1 bottle per cycle. An option of printing content before labelling is available. As for the maximum out-net label roll and maximum in-net label roll, they are φ300mm and φ76mm, respectively. Cutting-edge design for a technologically-advancing business.

Taking you to the next level with its:

1. Compact Design: A compact and innovative design that ensures effectivity and added efficiency in the warehouse
2. Accuracy: Provides exactness in labelling requirements and consistency in operation
3. Speed: Improves labelling production rate at speed of up to 40 bottles per minute
4. Suitable for Square Shaped or Irregularly Shaped Bottles, Doy Bag and Paper Coding
5. Feeding: Manual feeding, 1 bottle per cycle and labeled on bottle body
6. Stamping: Ribbon coder is used. Printing content before labelling is an option

SPECIFICATIONS:
Dimension (Standard), HxWxL	520mm x 315mm x 510mm
Speed	20 – 40 bottles/minuteManual in-feed bottles
Max Out-net Label Roll	φ300mm
Max In-net Label Roll	φ76mm
Label Size	W15mm – 100mm, L20mm – 320mm
Bottle Diameter	φ25mm – φ100mm
Speed of Label Roll Consumption	10 M/minute
Power Supply	AC220V, 50/60Hz, 200W
