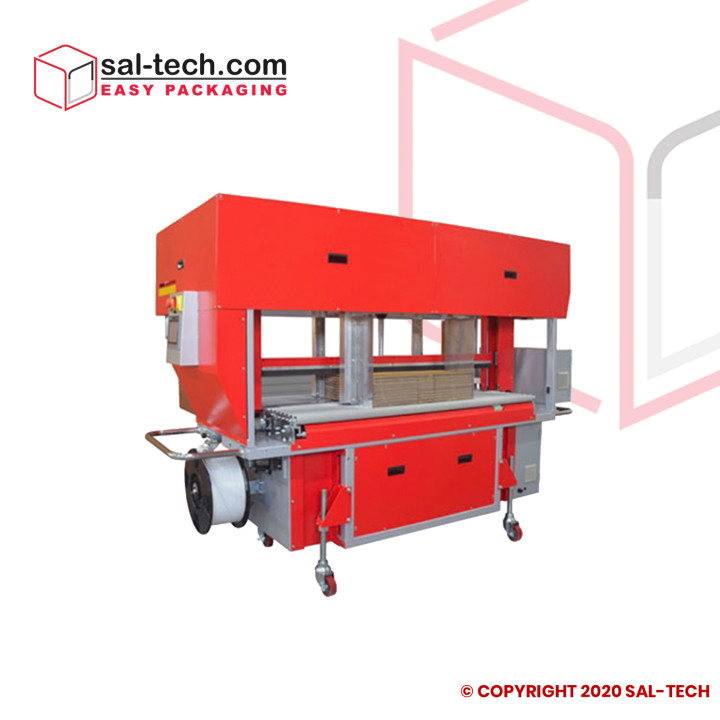

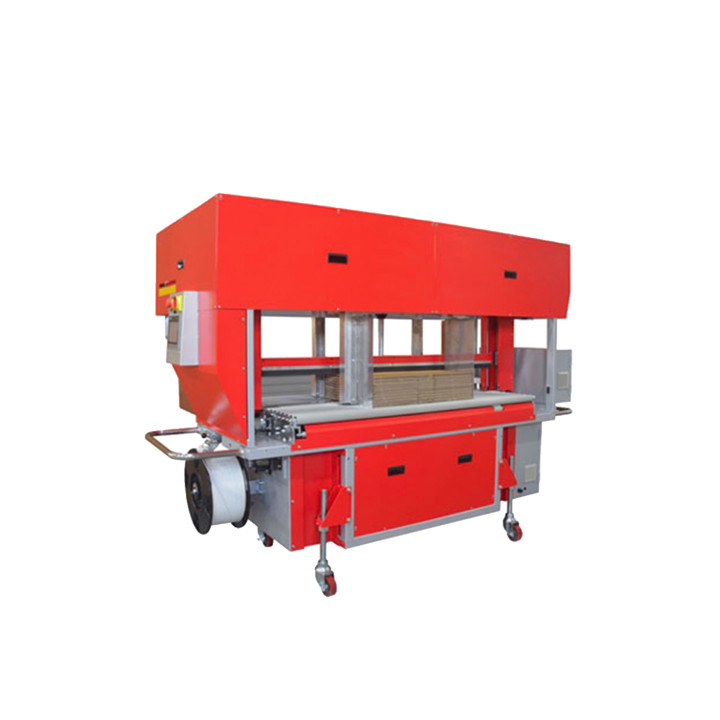

STEP TP-702CQ3-S Corrugated Strapper, Squaring & Back stop machine

Reference 41202170 Items available 0 Condition New

kr225,000.00

Tax excluded

STEP TP-702CQ3-S is an all-electric high-speed corrugated strapper with integrated squaring and backstop functions. Motorized squaring and backstop devices provide precise bundle handling and positioning for forming perfect bundles. It can meet the speed requirement of the fastest Flexo Folder Gluer and Casemaker.

Out-of-Stock

Features
• Compact & robust strapping head
• 3-side squaring bundle control
• Automatic bundle size setup system
• Motorized full-width press bar
• Siemens PLC and HMI (touch panel)
• Good for small bundle
• Free access to strap guides (patents registered)
• Hinged roller table

Options
• Dual dispensers with auto coil change
• Light tower with low strap sensor
• Energy saving transit with auto sleep mode
• Floor rails
• Foot pedal switch
• Bus interface for bundle size data transfer from upstream equipment

Technical Data
• Arch Size 1650 mm (W) x 450 mm(H)
• Capacity Up to 26 bundles/minute (single strap)
• Up to 13 bundles/minute (double straps)
• Strap Width 5 mm, 6 mm, or 9 mm
• Tension Range 1 - 32 kg
• Electrical Requirements 220V, 380V, 400V, 415V 50/60Hz 3PH
