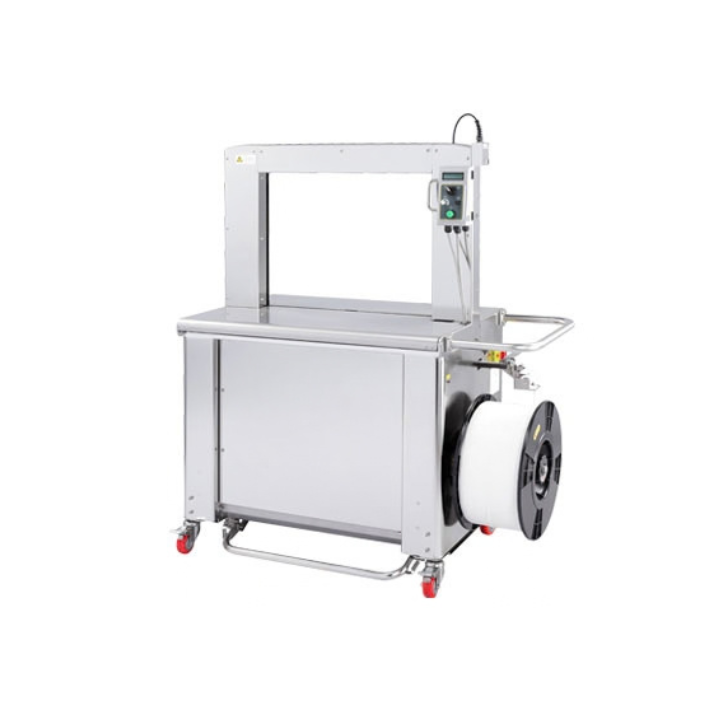

The STEP TP-702S-12 is a stainless steel automatic strapping machine developed for production environments where moisture, cleanliness and corrosion resistance are important.
Its SUS 304 stainless steel frame makes the machine well suited for fish and seafood processing, food production and other wet or harsh working environments. The machine handles 12 mm PP strap and provides strapping speeds of up to 60 cycles per minute.
Operator-friendly features include waist-high automatic strap feeding and coil change, a turnable operating control panel and automatic strap ejection. Adjustable strap tension from 1–45 kg allows the machine to accommodate a variety of packages and applications.
Key Features
- SUS 304 stainless steel frame
- Designed for wet and demanding environments
- Up to 60 strapping cycles per minute
- Uses 12 mm PP strap
- Adjustable strap tension from 1–45 kg
- Robust and compact mechanical strapping head
- Waist-high automatic strap feeding
- Convenient quick coil change
- Turntable operating control panel
- Automatic strap ejector
- Adjustable working height
- Suitable for fish, seafood and food-processing applications
| Technical Specifications |
| Model |
STEP TP-702S-12 |
| Machine Type |
Automatic strapping machine |
| Frame Material |
SUS 304 stainless steel |
| Arch Size |
W650 × H500 mm |
| Strapping Speed |
Up to 60 cycles/min. |
| Strap Type |
PP |
| Strap Width |
12 mm |
| Strap Core |
Ø200 mm |
| Strap Tension |
1–45 kg |
| Table Height |
Adjustable 820–920 mm |
| Electrical Connection |
230 V, 50 Hz, 1PH |
| Machine Weight |
167 kg |
| Item Number |
41190512-A65.50 |
