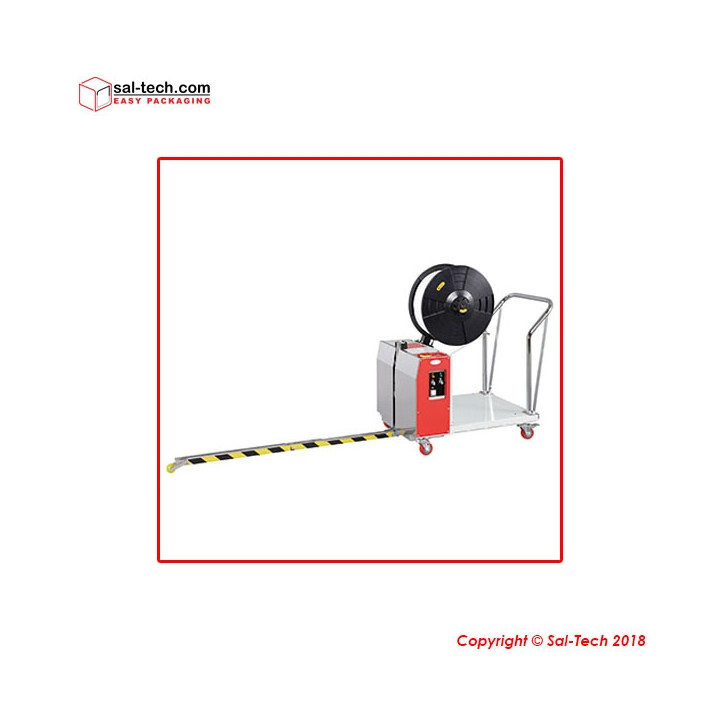

STEP TP 502MV Strapping Machine

Reference 41000150 Items available 4

kr17,500.00

Tax excluded

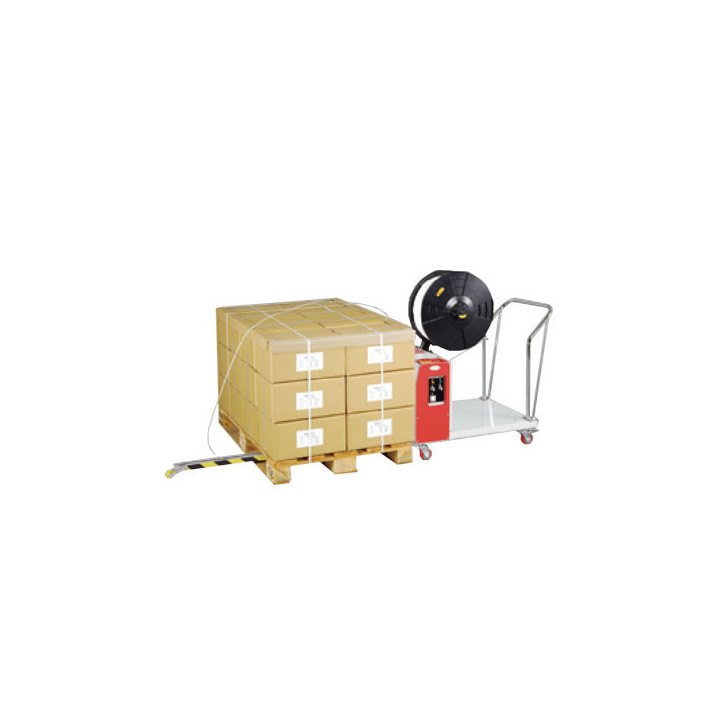

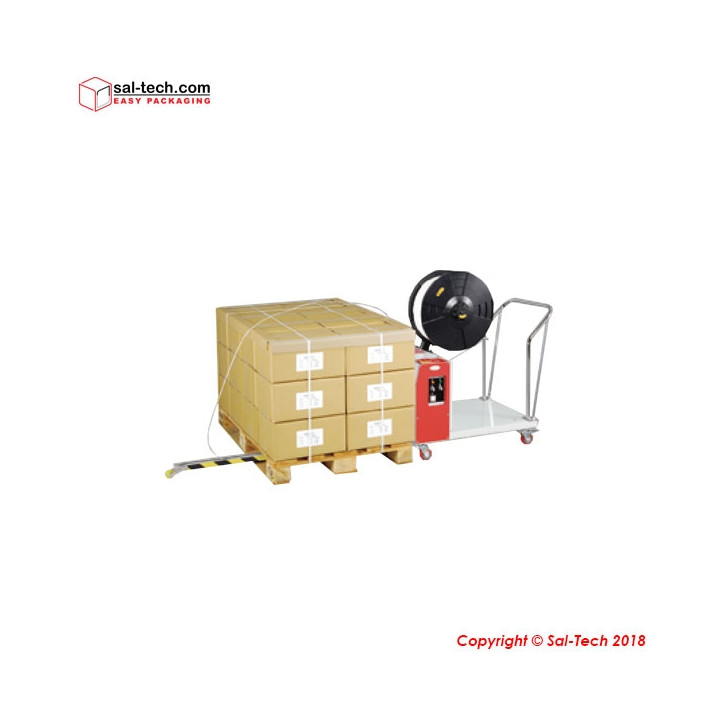

STEP TP 502 MV or Mini Vertical. a Semi-Automatic Pallet Strapping Machine, suitable for corrugated card boards, concrete blocks and loaded pallet with cardboard boxes holding any type of products. Provides ergonomic and cost – effective solution for low volume vertical pallet strapping applications.

Option

#ON STOCK#

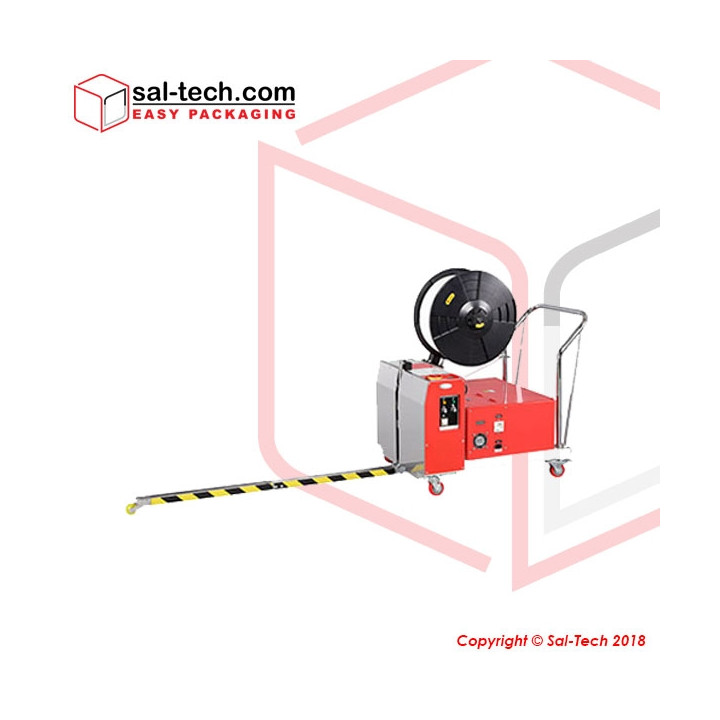

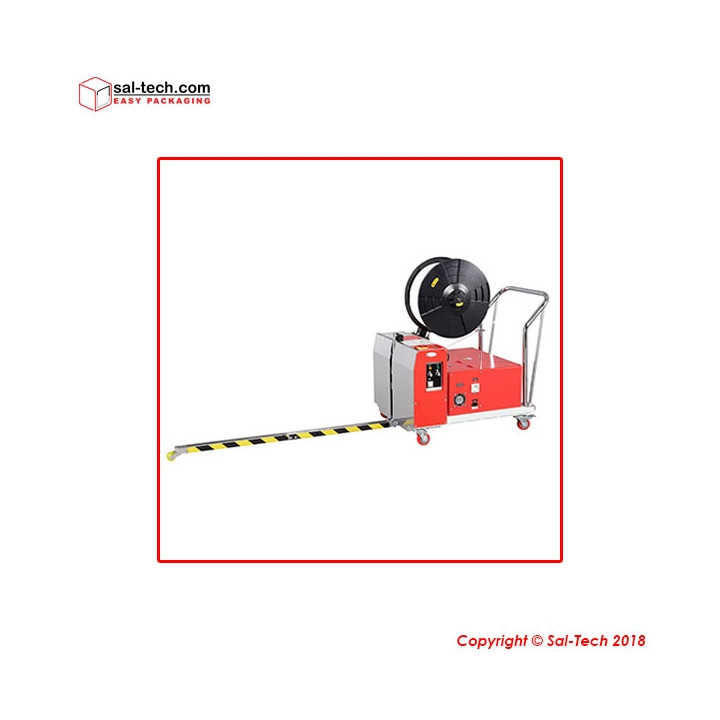

STEP TP-502MV / TP-502MVB STEP TP-502MV / TP-502MVB

Semi-Automatic Pallet Strapping Machine

A semi-automatic pallet strapping machine, suitable for corrugated cardboard boxes, concrete blocks, and loaded pallets holding any type of products. It provides an ergonomic and cost-effective solution for low volume vertical pallet strapping applications.

Eliminates the use of manual tools and dispensers, and can be moved easily beside the load you want to strap — without moving the pallet.

Standout Feature

Bring the machine to the load, not the other way around — German-made DC motors with direct drive technology, built for mobility and various applications.

Key Features

Direct Drive Technology — Powered by German-made DC motors.

Electronic Tension Control

Compact Mechanical Strapping Head

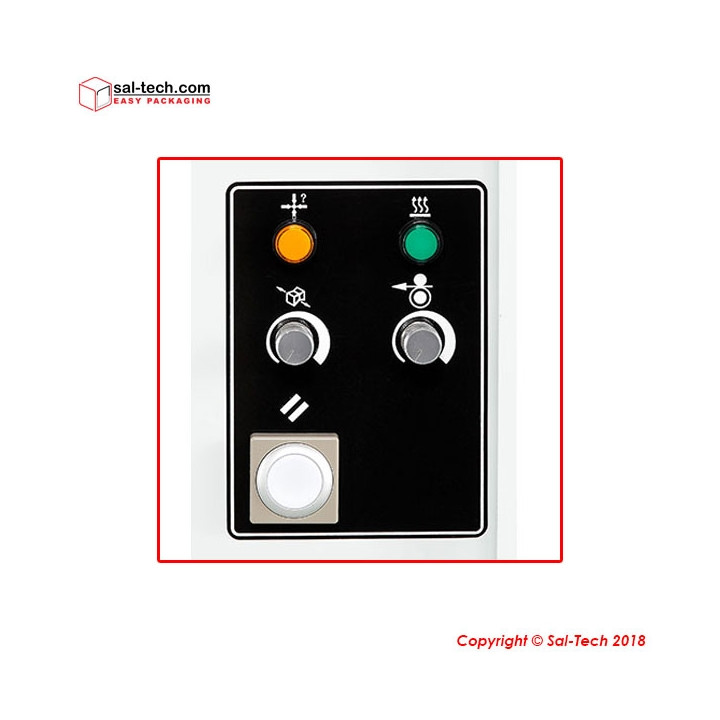

Jog Switch

Good for Lower Height Pallets

Adjustable Weld-Cooling Time

Mobility — Moves easily beside the load.

Various Applications

Specifications

Description	TP-502MV	TP-502MVB
Strap Type	PP Strap	PP Strap
Strap Width	9mm, 12mm, 15.5mm	9mm, 12mm, 15.5mm
Strap Thickness	0.6 – 0.8mm	0.6 – 0.8mm
Strapping Speed	18 sec./strap (Package size 1200L x 800W x 1000H mm)	18 sec./strap (Package size 1200L x 800W x 1000H mm)
Min. Package Height	380mm (pallet included)	380mm (pallet included)
Strap Core Inner Diameter	200mm (280mm also available)	200mm (280mm also available)
Tension Range	8kg – 70kg	8kg – 70kg
Length of the Sword	1250mm	1250mm
Net Weight	93kg	153kg

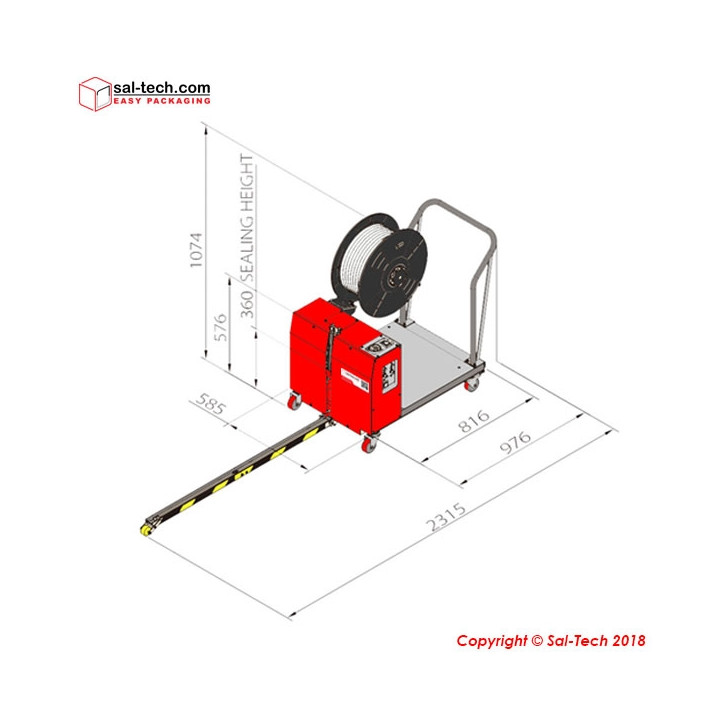

Machine Dimension	585W x 2315D x 1074H mm	585W x 2315D x 1074H mm
Power Consumption	0.33 KW	0.33 KW
Working Temperature	5 – 40°C	5 – 40°C
Electrical Requirements	230V 50Hz 1Ph (other voltage on request)	115V 60Hz 1Ph or Battery 230V 50Hz 1Ph or Battery (other voltage on request)
Battery Spec	—	VRLA type, 12V, 50Ah (2 pieces)
Battery Charge Time	—	5–7 hours (depends on environment)
Battery Capacity	—	Approx. 1,000 – 1,500 strapping cycles per charge (depends on package size and tension)
Battery Lifespan	—	Approx. 300 charges
STEP Item No.	41000150 (230V 50Hz version)	41000160 (230V 50Hz version) 41000161 (115V 60Hz version)
