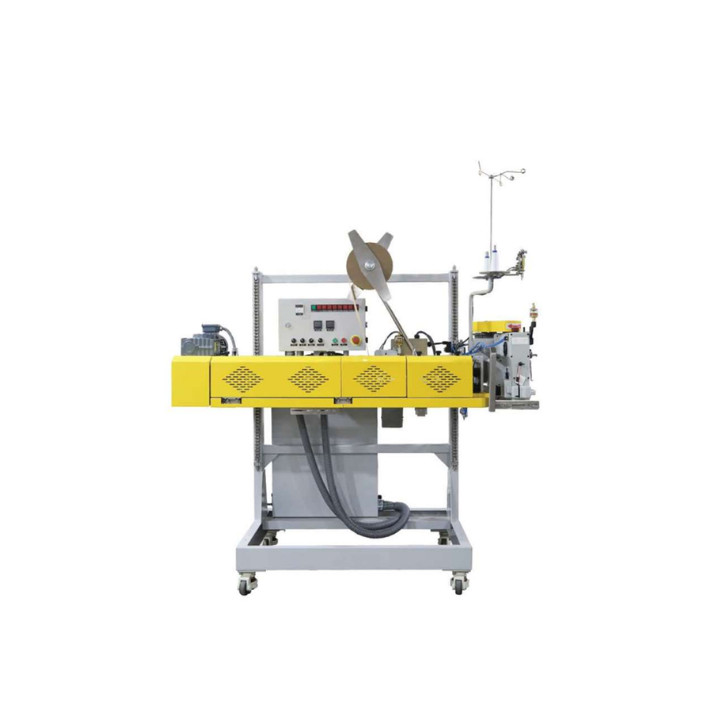

STEP FBK-12C One-Line Sealing and Stitching Automatic Packaging Machine

STEP FBK-12C One-Line Sealing and Stitching Automatic Packaging Machine

Reference 42853010 Items available 0 Condition New

kr0.00

Tax excluded

FBK series automatic sewing and enveloping sealer for heavy-duty bag, fit for packing single layer Kraft paper, multi-layer Kraft paper, paper/plastic laminated bag.

Out-of-Stock

This series machine adopts the advanced technology of light, electricity, and mechanism to guarantee its full automation and high performance.

Specification Details
Model	STEP FBK-12C One-Line Sealing and Stitching Automatic Packaging Machine
Voltage (V/Hz)	(3PH) AC380/50
Gross Power (kW)	3.5
Motor Power of Sewing Machine (kW)	0.37
Sealing Speed (m/min)	8.5 (11 can be customized)
Height from Sealing Center to the Floor (mm)	800 ~ 1400
Air Source Pressure (Mpa)	0.6
Heating Power (kW)	0.5 x 4
Temperature Range	0 ~ 300
Applications	Multi-layer paper bag, paper PE compound bag and 2 in 1 or 3 in 1 bag
Height Space Request of Bag Top (mm)	180
Dimension ( L x W x H ) (mm)	2200 x 950 x 1800
Net Weight	400
Item Number	42853010
