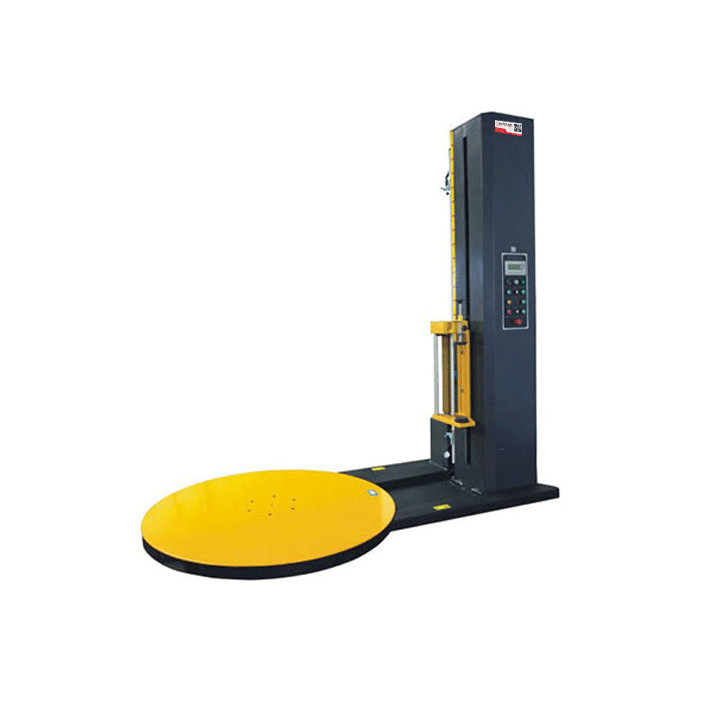

STEP Basic Pallet Wrapper

Reference 43081000 Items available 0 Condition New

kr42,000.00

Tax excluded

Semi-auto Pallet Wrapper Mechanical Brake offers the best value for factory operators to increase worker efficiency and reduce labor.

Out-of-Stock

STEP Basic Pallet Wrapper - is a Semi-Auto Pallet Wrap Machine Mechanical Brake for wrapping palletized loads with stretch film. It is provided with different functions, as: turntable soft start, manual or automatic mode and adjustable film pallet overlap. It is mounted with mechanical carriages. It is an economical model that meet general wrapping needs.

Features:

• PLC controlled, easy wrapping program setting.
• Both one touch automatic programs and manual run are available.
• Turntable speed & carriage speed adjustable on panel.
• Turntable stop start & stop.
• Turntable home position.
• Automatic detection of pallet height by photocell
• Open type carriage for easy film threading
• Carriage driven by dual chain system.

Specifications:
Wrap Speed	30-40 Pallets/hour
Turntable Diameter	1500 mm
Turntable Speed	3-5rpm
Max Load Weight	2000kgs
Wrapping Height	2100mm
Turntable Height	82mm
Carriage Type	Mechanical brake, 150% ratio
Wrapping Settings	Wrap cycles/top wraps/bottom wraps/overwrap
Carriage Speed	5 meters/min max
Turntable Motor	0.75kw
Carriage Lifter Motor	0.37kw
Power	1 PH 220VAC, 50/60Hz
Film Type	Stretch film thickness 17-35microns, width 450-500 paper core 76mm, max weight 18kgs

Options:

• Turntable diameter 1650mm, 1800mm, or 2000mm
• Wrapping height 2400mm or 2600mm
• Access ramp for loading
• Turntable could be M-shaped
• Top platen driven Pneumatically for light products
• Ring bearing structure turntable for extra heavy loads.
