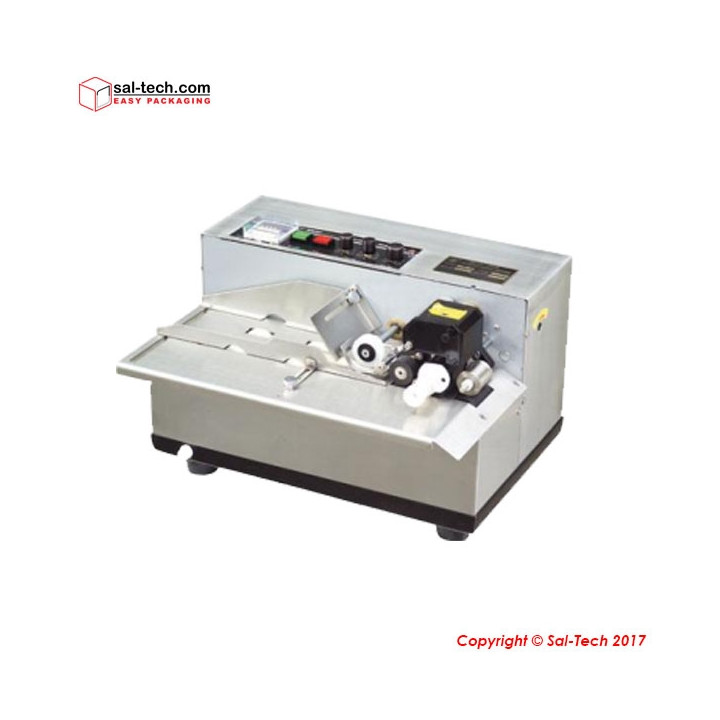

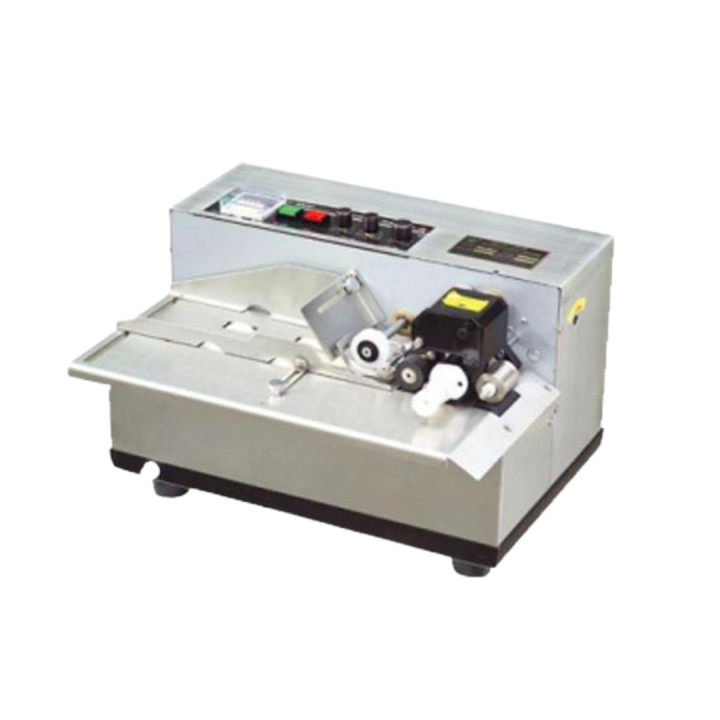

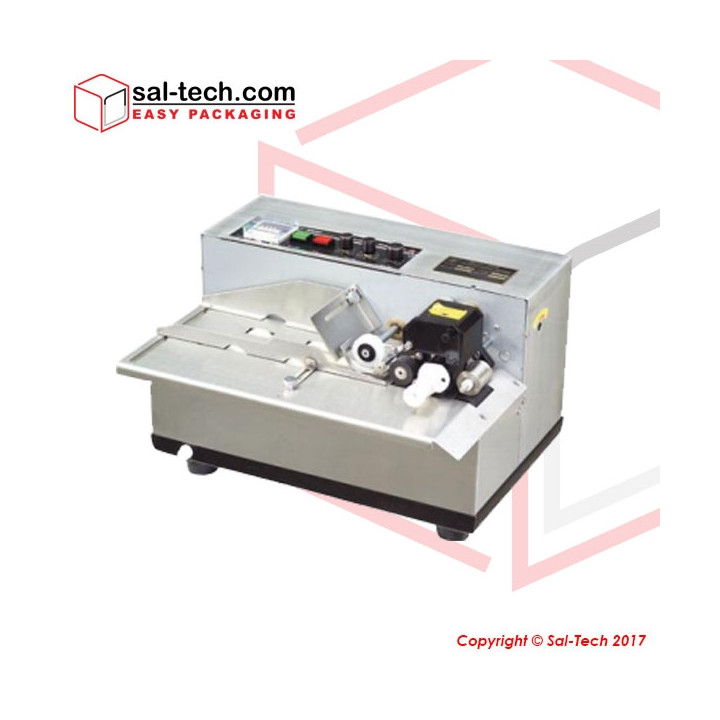

STEP DH-20 Doy Bag Ink Roller Labeling Machine

Reference 42217120 Items available 0 Condition New

kr0.00

Tax excluded

This Semi-Automatic Ink Roller Coder that is perfectly fit for doy bag and paper coding. A tool that is compact and accurate with speed up to 300 imprinting per minute. A cost-effective solution for long term production efficiency.

Out-of-Stock

STEP DH-20 is engineered to cater automatic stamping of bags from an array at a maximum speed of 300 prints per minute. This tool is equipped with a customizable print size of 30mm to 300mm for width and 55mm to 500mm when it comes to length. Printing position is also adjustable with a 5-line printing capacity while noting of 15 characters per line. A high-speed labelling for a high paced warehouse production requirement.

Taking you to the next level with its:
1. Compact Design: A compact and innovative design that ensures effectivity and added efficiency in the warehouse
2. Accuracy: Provides exactness in labelling requirements and consistency in operation
3. Speed: Improves labelling production rate at speed of 300 times per minute
4. Suitable for Doy Bags and Paper Coding
5. Dispense Bags: Dispenses bags automatically from folded array of bags
6. Stamping: Continuous stamping using a hot ink roller at a high speed

SPECIFICATIONS:
Dimension (Standard), HxWxL	260mm x 345mm x 440mm
Speed	300 times/minute
Print Size (can be customized)	W30mm – 300mm, L55-500mm
Coder Size	2mm, 2.5mm, 3mm
Printing Position	60mm – 250mm, Adjustable
Number of Lines	5 lines, max of 15 characters per line
Hot Ink Roll Size	35mm x 32mm, 35mm x 16mm
Power Supply	AC220V, 50/60Hz, 180W
