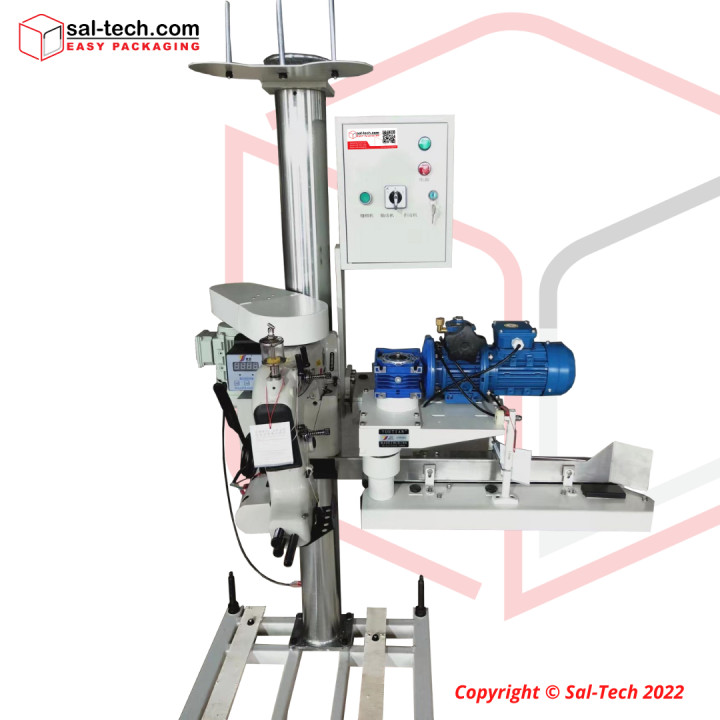

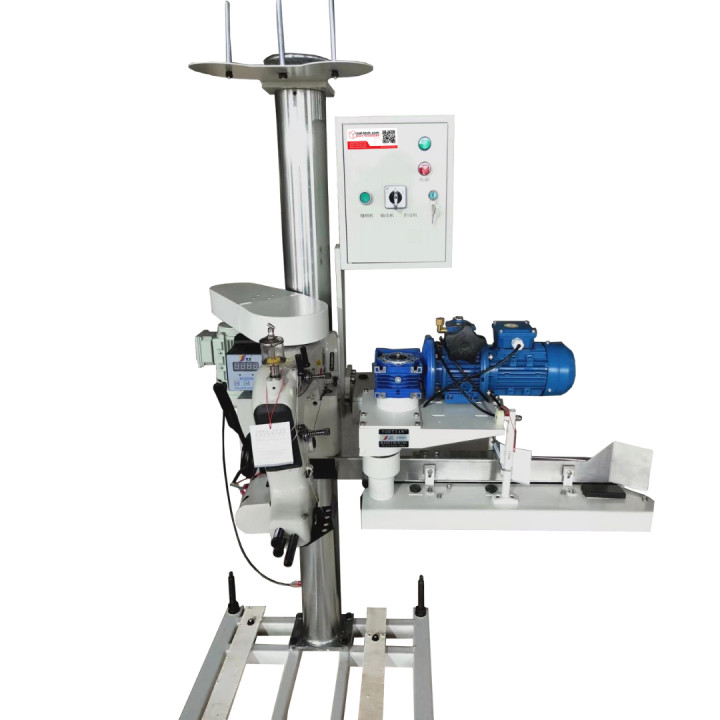

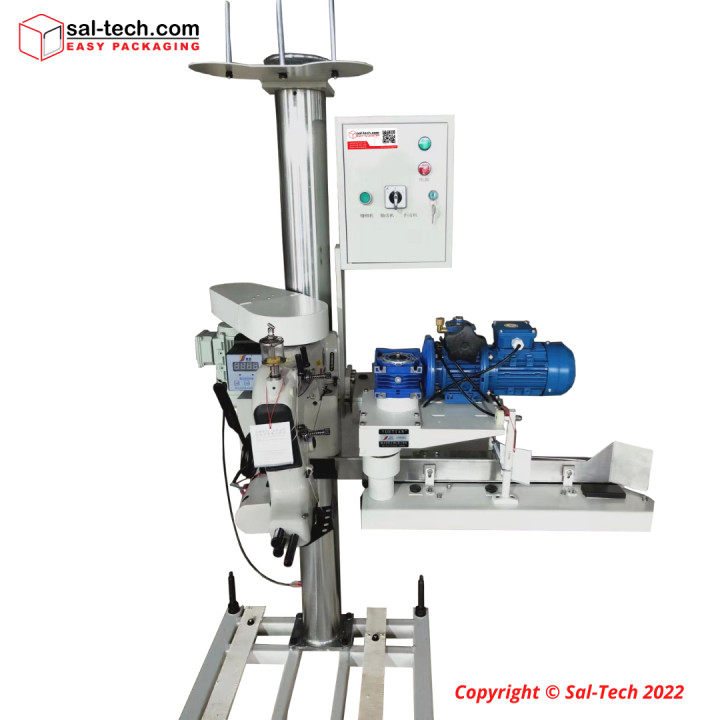

STEP GK35-6A w. Column & Autofolding Aggregate

Reference 42818050 Items available 1 Condition New

kr38,575.00

Tax excluded

Automatic single needle machine for plain closing of all kinds of filled bags. The machine will start automatically by photo switch actuated by the bag being fed into the machine.

In the same way, the machine stops after the bag passes through, and at the same time the thread/crepe-tape is cut automatically by built-in air cylinder operated guillotine type cutter

Last items in stock

Application:

With folding device and column for adjustable height.
Stainless steel version for moist and semi wash down areas.
Not suited for direct wash down, but splash or similar will be acceptable.
Thread stand 6kg thread coils
Capacity 6 – 12 bags per minute or higher depending of infeed conveyor, sack type and sack infeed method and automation
Adjustable speed of motors for auto folding and sewing machine

Features:

Stainless Steel Column
Stainless Steel product interface parts
Special protection of steel parts not able to be made of stainless steel in general
Sewing head STEP SK35-6A is not stainless steel, but optimized with special protection of steel parts not able to be made of stainless steel
Stainless steel covers for CE norm certification
IP 21/23 or above protection of electrical components

Diagram, schematic Description automatically generated

SPECIFICATIONS
Model	STEP GK35-6A w. Column & Auto folding Aggregate –Mild Steel Version	STEP GK35-6A w. Column & Auto folding Aggregate – Stainless Steel Semi Wash Down Version
Product Interface Parts	Mild Steel	Stainless Steel
Seam Package Altitude	400-900mm	400-900mm
Seam Package Weight	10-50kg	10-50kg
Necessary Electrical Machinery	740W	740W
Outlook Size	1500 x 1500 x 750 (mm)	1500 x 1500 x 750 (mm)
Gross Weight	150kg	150kg
