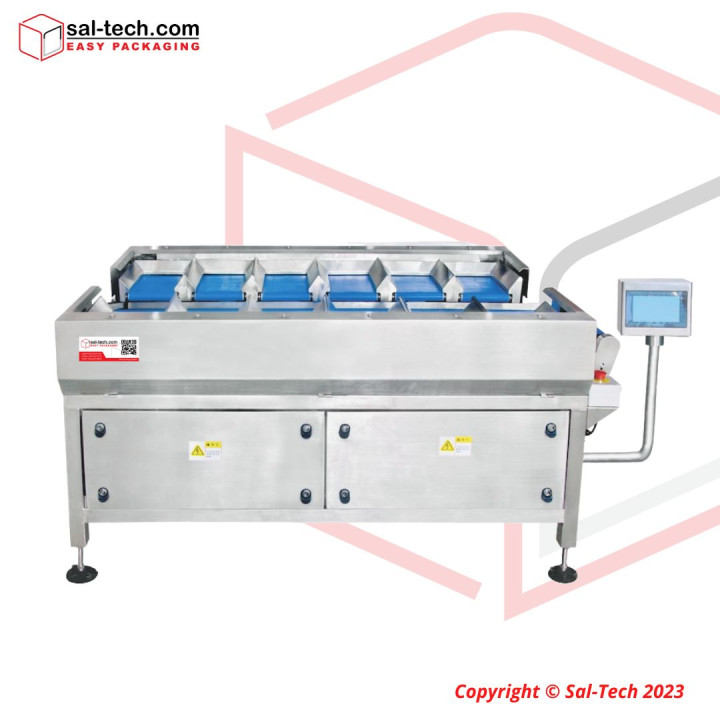

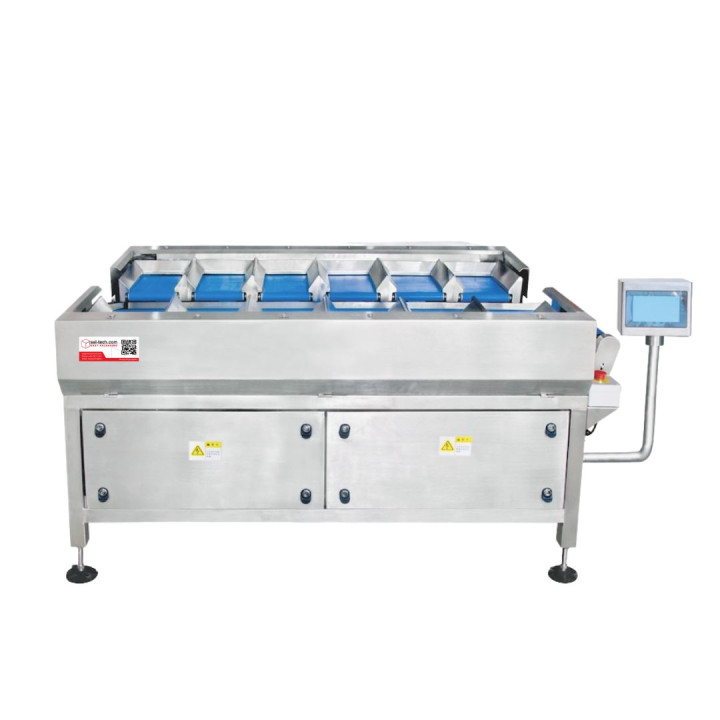

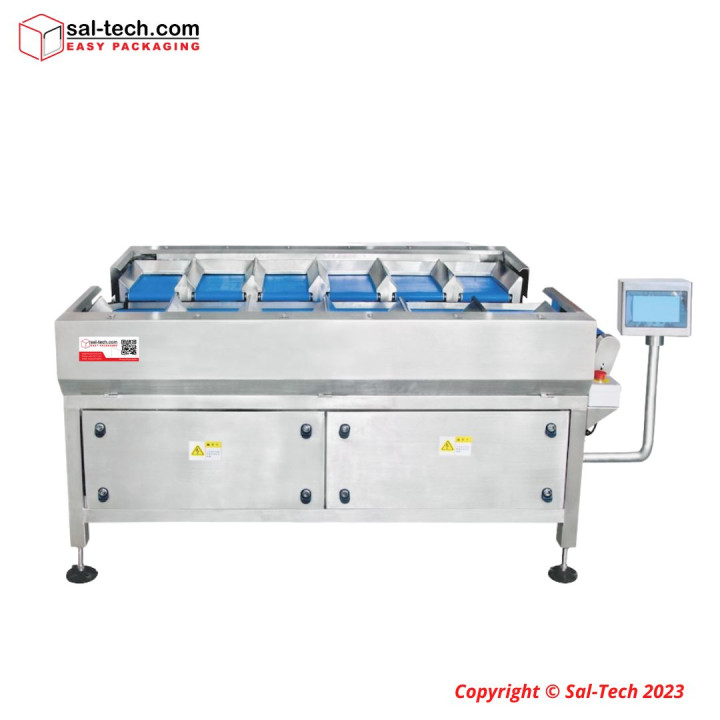

STEP MHWLB

Reference 43854070 Items available 0 Condition New

kr0.00

Tax excluded

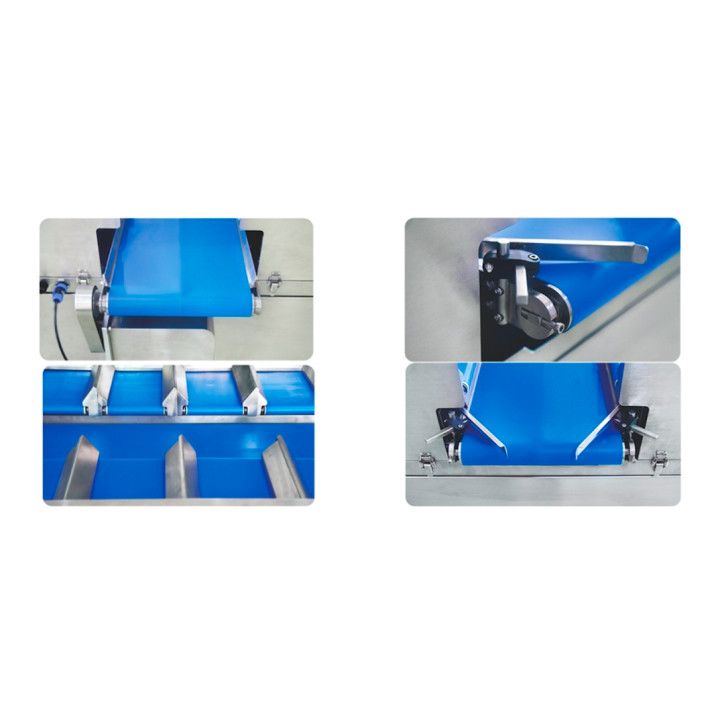

STEP MHWLB is suitable for weighing large block, strip and stem materials with poor fluidity, such as fish, noodles, shrimp, meat products, medicinal materials and other aquatic products. Belt-type open weighing tray design structure can effectively solve the feeding of the sticky or bulky materials with poor fluidity.

#Project machine produce to order specification#

Features:

• Using high-precision, high-standard special load cell.
• Accurate Weighing.
• Intelligent fault alarm.
• High Speed Running.
• Intelligently customize the number of weighing trays to achieve double standards of weighing and counting.
• Easy to operate by workshop staff.
• Visualize LED signal light, clear the feeding direction and feeding area, and effectively identify the current status of the corresponding tray.

SPECIFICATIONS
Model	STEP MHWLB-12-60	STEP MHWLB-14-60
Weighing Range	10-6000g	10-6000g
Accuracy	X (0.5)	X (0.5)
Max Speed	30 P/M	25 P/M
Level of Protection	IP 65
Weighing Belt Dimension	300 (L) x 180 (W)
Control Panel	10.1 Touch Screen
Driving System	Step Motor
Power Requirement	220V/ 800W/50/60Hz/ 3.6A
Packing Dimension (mm)	2200(L) x 1200(W) x 1160(H)	2560(L) x 1200(W) x 1160(H)
Gross Weight	370kg	450kg
Item Number	48291260	48291460
