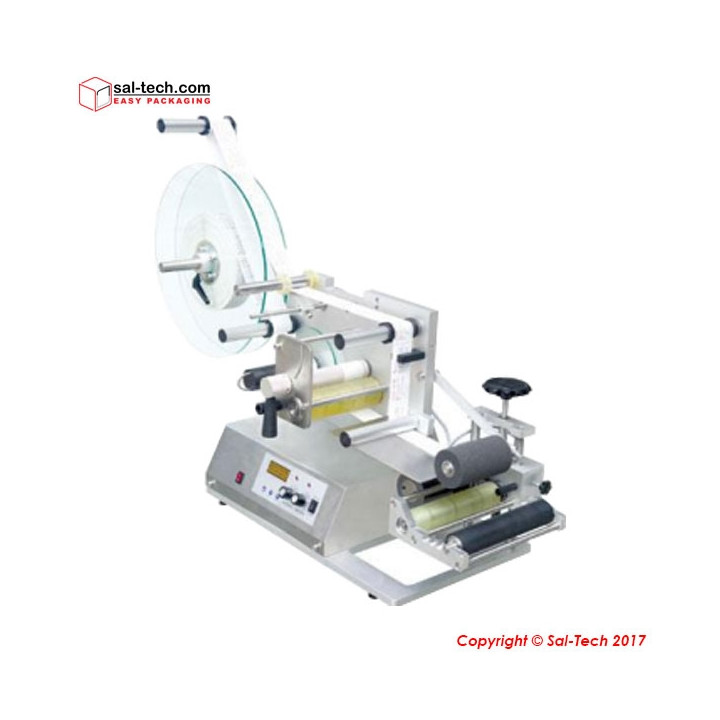

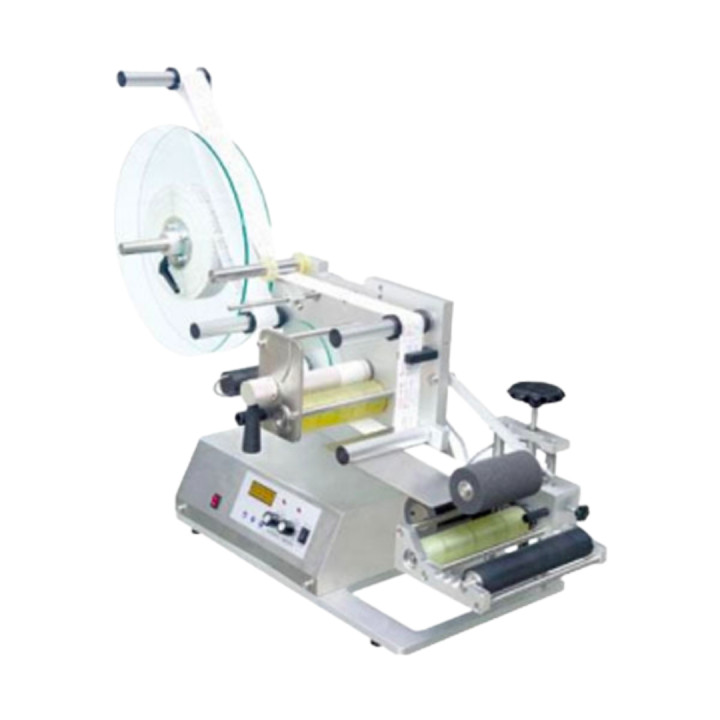

STEP ATL-109 Round Shape Bottles Labelling Machine

Reference 42217130 Items available 0 Condition New

kr0.00

Tax excluded

A semi-automatic bottle labeling machine that feeds 1 bottle per cycle with speed of up to 50 bottles per minute. Appropriate for round shaped bottles with bottle diameter of φ25mm to φ100mm.

Out-of-Stock

STEP ATL-109 is a simple round bottle labeling machine that requires manual dispensing of bottles. A tool with maximum outer label roll of φ300mm and a maximum inner label roll of φ76mm. It’s label size may vary between 15mm and 100mm for width, while when it comes to length, variations are between 20mm and 320mm. High-speed branding of bottles and maximum efficiency rate at a reasonable price.

Taking you to the next level with its:

1. Compact Design: A compact and innovative design that ensures effectivity and added efficiency in the warehouse
2. Accuracy: Provides exactness in labeling requirements and consistency in operation
3. Speed: Improves labelling production rate at speed of up to 50 bottles per minute
4. Suitable for Round Shape Bottles
5. Feeding: Manual feeding, 1 bottle per cycle and labeled on bottle body
6. Stamping: Ribbon coder is used. Printing content before labeling is an option

SPECIFICATIONS:
Dimension (Standard), HxWxL	520mm x 315mm x 510mm
Speed	30 – 50 bottles/minuteManual in-feed bottles
Max Outer Label Roll	φ300mm
Max Inner Label Roll	φ76mm
Label Size	W15mm – 100mm, L20mm – 320mm
Bottle Diameter	φ25mm – φ100mm
Speed of Label Roll Consumption	10 M/minute
Power Supply	AC220V, 50/60Hz, 200W
