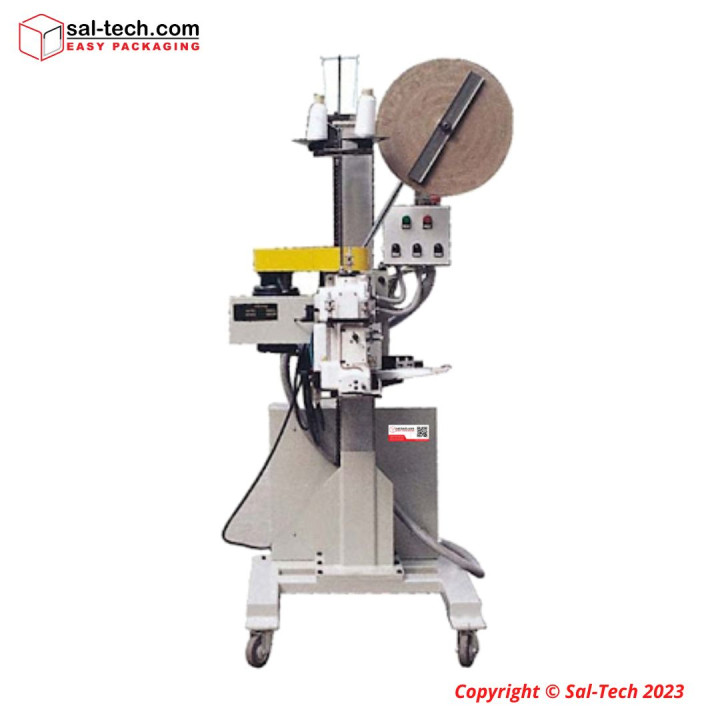

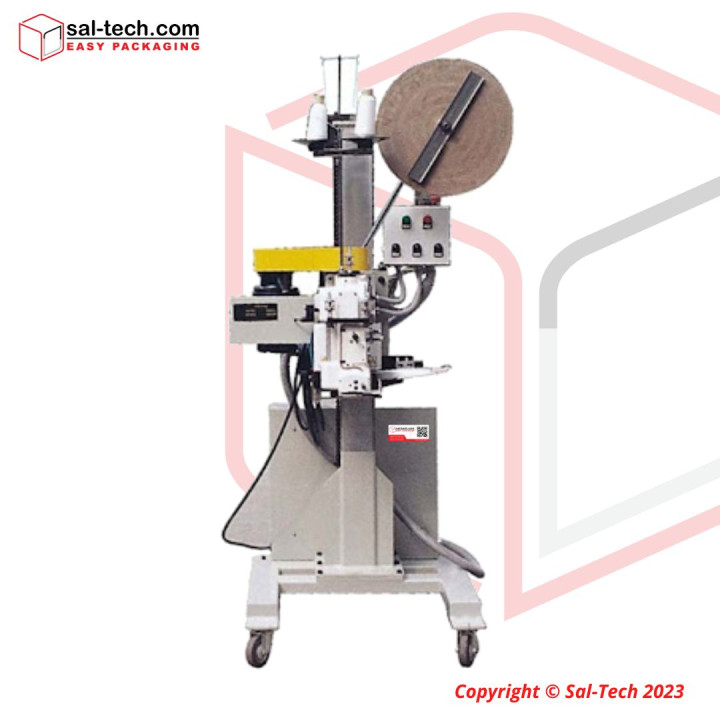

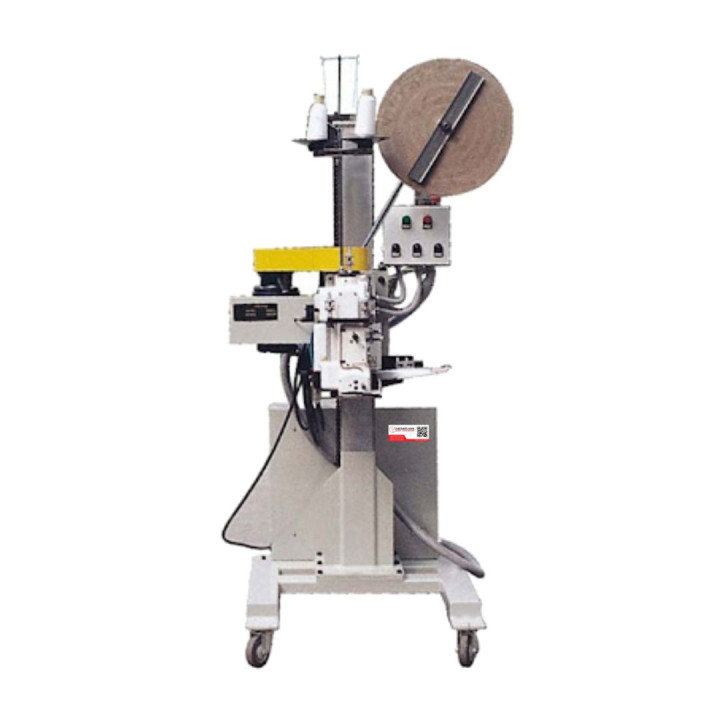

STEP FBS-10B Automatic Edge- Binding Stitching Packaging Machine

STEP FBS-10B Automatic Edge- Binding Stitching Packaging Machine

Reference 42851030 Items available 0 Condition New

0.00 DKK

Tax excluded

STEP FBS-10 Automatic Edge-folding Stitching Packaging Machine is suitable for bag top binding and stitching of thick paper bags, it has wide application in the fields of foodstuff, feed, chemical industry.

Out-of-Stock

This machine adopt photoelectric control system, which could automatically and continuously finish all the processes of bag top trimming, paper tape binding, stitching, paper tape snipping and thread snipping, of plastic woven bags.

Features:

1. Pneumatic system act the thread-snipping and lube spray.
2. Auto, gauge filling machine and conveyor.
3. Optional device: 5-digits counter, thread-break alarm.

MbXAMnK8QxOsH2LYqUDSjics8O2PFDoKyo_pUSfo

ZQd7XV3ztx4WFKlbmvBx9cOgb57-NW6Htxu0lEM1

SPECIFICATIONS
Model	STEP FBS-10B Automatic Edge- Binding Stitching Packaging Machine
Voltage	(3PH) AC380/50
Gross Power	0.4
Motor Power of Sewing Machine	0.37
Sealing Speed	8.5 ( 11 can customized to be Max. )
Height from Sealing Center to the Floor	700 ~ 1400
Gas Source Pressure	0.6
Paper Tape Width	50
Sewing Machine Model	DS- 7C
Needle Mode	80800 x 250#
Sewing Machine Specification	20S/ 6 ` 20S/ 9 Fiber Thread
Height Space Request of Bag Top	150 ~ 170
Dimension ( L x W x H )	750 x 1000 x 1870
Net Weight	150
Item Number	42851030
