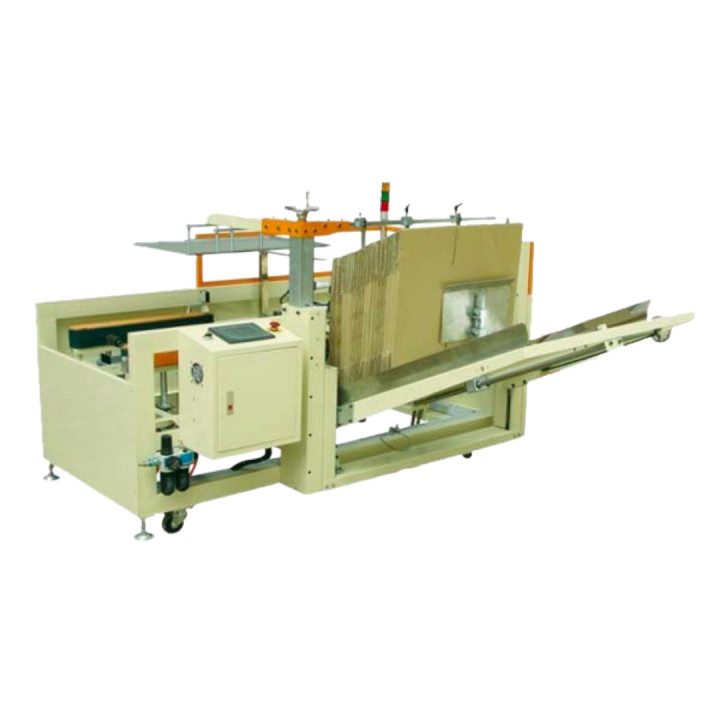

STEP K40H18 Carton Erector

Reference 42121020 Items available 0 Condition New

kr89,900.00

Tax excluded

Packaging machines used to automatically prepare and erect the carton box.

Full automatic carton travel for Centre closed corrugated cartons of the same size in aseries.

Carton size: length 200-400 mm x width 150-350 mm x height 100-350 mm

Speed: 18 cartons per minute.

#Project machine for agreement of specification#

Carton rejsere for larger cartons right approach. Also, we have equipment for fully automatic raising and conversion between random size per vent from between 1 to 125 cartons. These machine can also be set to the same series whereby the speed is increased.

Carton size: length 200-400 mm x width 150-350 mm x height 100-350 mm
Speed: 18 cartons per minute
Tape width: 50 mm Option: 48, 60 or 75 mm (optional by order, not adjustable)
Tape Length Up to 2000meter.
Vertical magazine for plano cartons.
Electrical connection: 3x380V, 50 Hz Option 3x220V 50 Hz
Machine size L2400xB2050xH1450
Weight: 550kg
