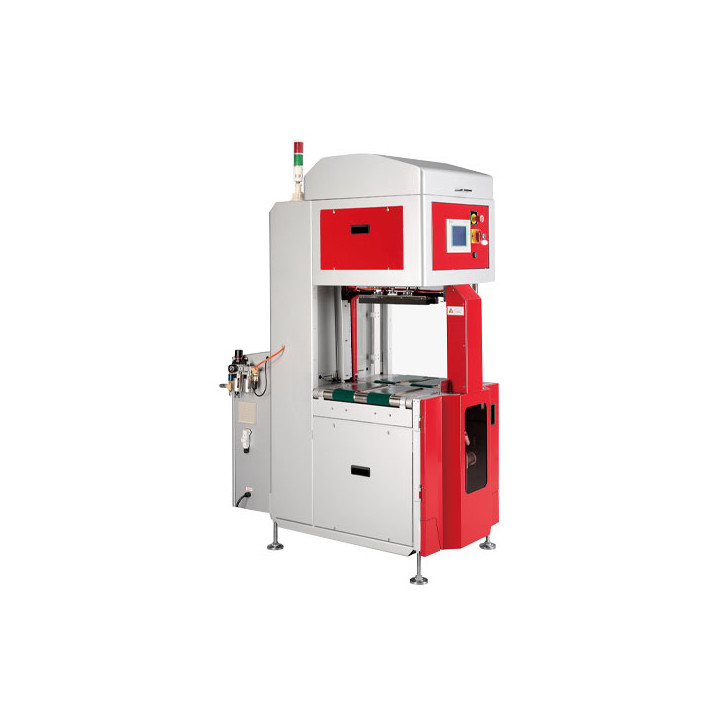

STEP TP-702NS Fully Automatic Print Media Strapping Machine

STEP TP-702NS provides a more accurate and reliable strapping for your bundles. This is a fully automatic machine with a variable conveyor speed, improving performance rate and efficiency at low maintenance level and cost.

Taking you to the next level with its:

1. Strapping Head: Equipped with a durable and compact strapping head
2. Patent Automatic Tension Control: Tension from 1 to 32kg
3. Pneumatic Press
4. Siemens Touch Panel: Easy operation guides and troubleshooting
5. Free access to strap guides: Requires simpler maintenance and enables free access to strap guides, this is patent registered
6. Easy access to strapping head: Motor technology of latest version provides a higher accuracy and reliability, this is patent registered
7. Adjustable Height: Table height is modifiable between 800mm and 900mm, as desired
8. Automatic strap loop ejection
9. Light tree alarm (Dual Lamp)
10. Coil change: A speedy coil change for a more efficient operation
11. Stream Interlock: Up and down stream interlock with complete plug connection

Options:

• Energy saving with automatic sleep mode
• Triple lamp, user-friendly low strap sensor
• Soft press for convex bundles
• Height adjustable between 730mm to 800mm
• Side squaring, automatic
• Reverse bundle flow
• Low volume bundle bypass
• Caster movable


Available in different models:

STEP TP-702NL Fully Automatic Longitudinal Strapping Machine
STEP TP-702NIL Fully Automatic Strapping System for In-Line Cross Strapping
STEP TP-702NAD Fully Automatic Print Media Strapping Machine with Multi-Angle Diverter Function
STEP TP-702MGZ Fully Automatic Print Media Specialty Strapping Machine
