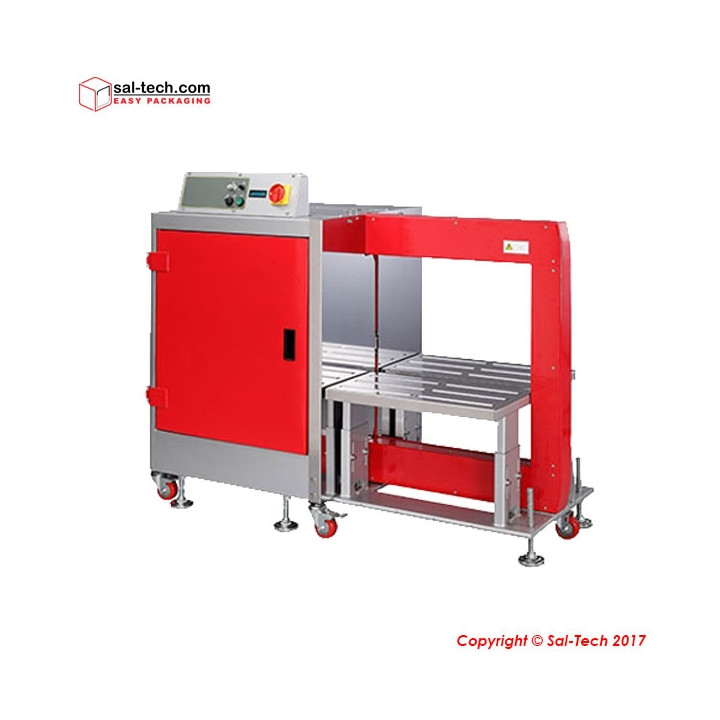

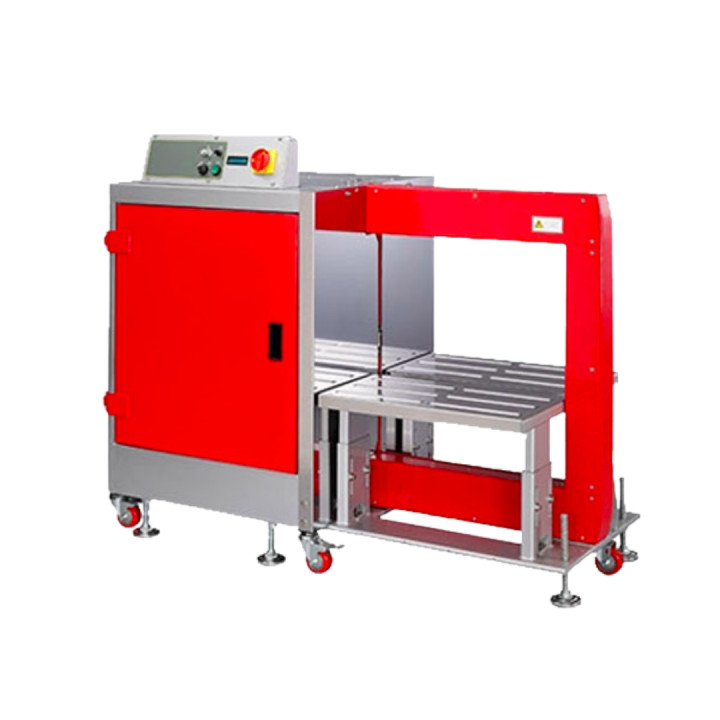

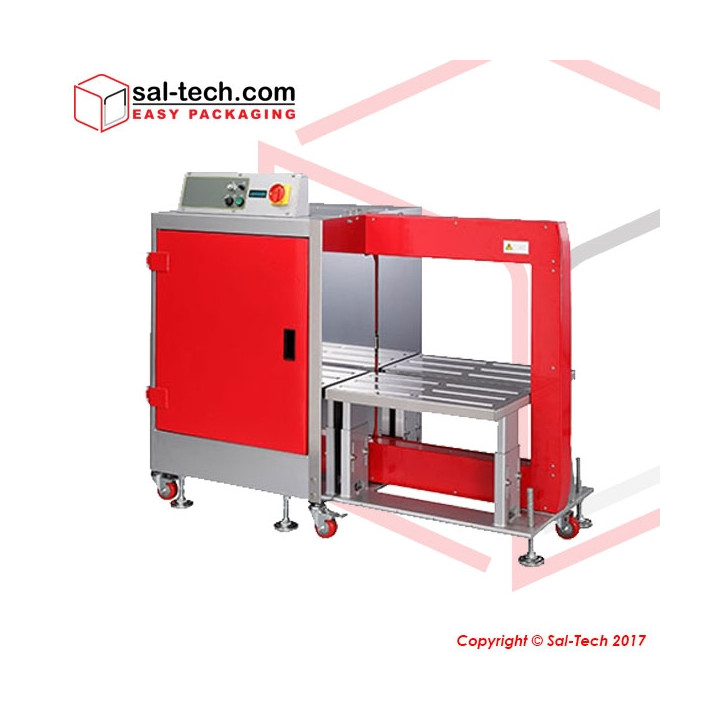

STEP TP-702Y Automatic Side Sealing Strapping Machine

STEP TP-702Y Automatic Side Sealing Strapping Machine

Reference 41199680 Items available 0 Condition New

kr89,990.00

Tax excluded

An automatic side sealing strapping machine that is suitable for a wide range of application. Appropriate for tying a huge and heavy product and household appliances. Strapping speed at 60 straps per minute, production is with certain accuracy and reliability.

Out-of-Stock

STEP TP-702Y is an automatic strapping machine with a sealing head fixed on the side. Designed for use in dusty environment which may be situated in sawmill plants, brick and/or tile industry. This machine has various arch size availability and an easy control display for less maintenance effort enhancing a fast operating business.

Taking you to the next level with its:
1. Strapping Head: Design for accuracy and reliability, the machine’s motor is German-made and is equipped with the latest brushless motor technology
2. Display Panel: A user friendly function to control operation and maintenance without difficulty
3. Free Access to Strap Guides: Patents registered. This enables a quick access to strap guides without use of different tools for a user friendly maintenance design
4. Tension Force: This downward force plays a consistent role to keep hold of bundle for a much stronger package
5. Strap Dispenser: A fully ergonomic strap dispenser design makes changing of coil convenient with less labor effort which also moisture resistant

SPECIFICATIONS:
Strapping Speed	60 straps/minute
Strap Requirement	Width: 5mm, 6mm, 9mm, 12mm
Strap Requirement	Thickness: 0.35mm – 0.65mm
Tension Range	1kg – 32kg for 5mm, 6mm, and 9mm1kg – 45kg for 12mm
Dimension (WxDxH)	1450mm x 670mm x 1200mm – 1300mm
Table Height	445mm – 645mm
Machine Net Weight	294kg
Package Weight (Maximum)	80kg
Package Dimension (WxH)	Min: 30mm x 80mm
Package Dimension (WxH)	Max: 550mm x 415mm(Arch Size 600mm x 650mm)
Strap Core Diameter	200mm
Conveyor Speed	10M – 45M/minute
Power Consumption	500W
Electrical Requirements	110/220/230/240V 50/60Hz 1PH220V, 380V, 400V, 415V 50/60Hz 3PH

Arch Size:

H W	400	600<	800	1000	1300
650		STANDARD		N/A
850	N/A			N/A
1050	N/A
1250	N/A
1650	N/A	N/A	N/A		N/A

Options:

• End cycle and error signals
• Dual Press bar
• Small package
• Foot pedal switch
• Side Pusher
• Light tree alarm with low strap sensor (triple lamp)
• Energy saving transit with auto sleep mode

Also available in different models:

• TP-702YA Fully Automatic Side Sealing Strapping Machine
• TP-702YM Steel Frame Automatic Side Sealing Machine
• TP-702YAM Steel Frame Fully Automatic Side Sealing Machine
