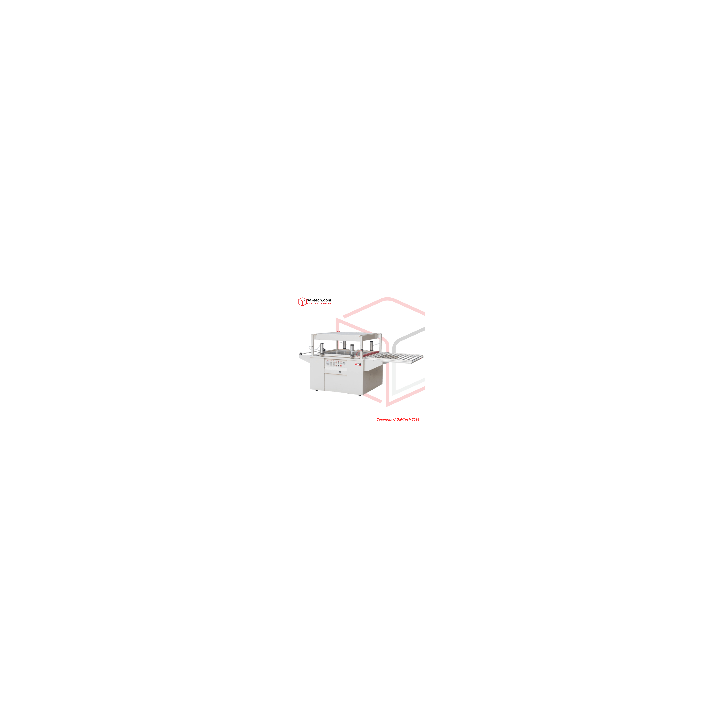

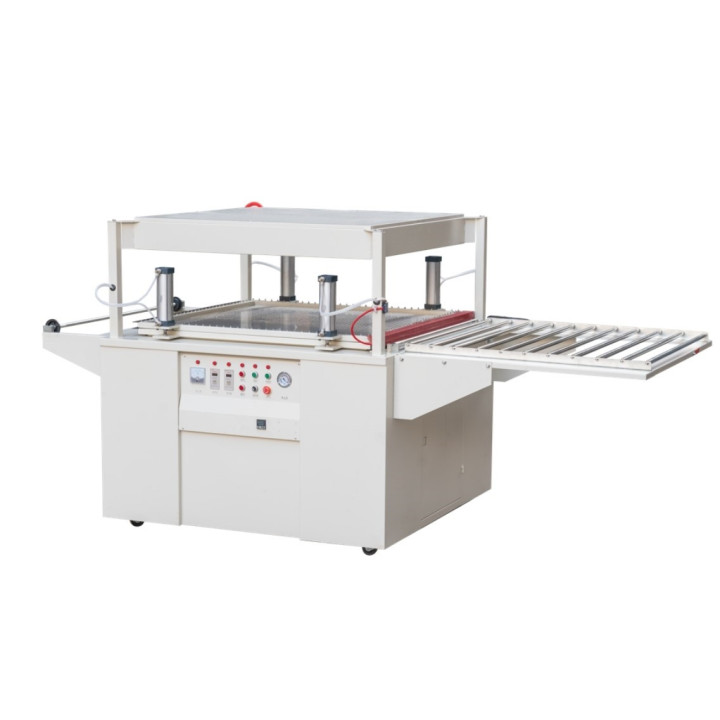

STEP Skinpack 8080

Reference 43811030 Items available 0 Condition New

48,900.00 DKK

Tax excluded

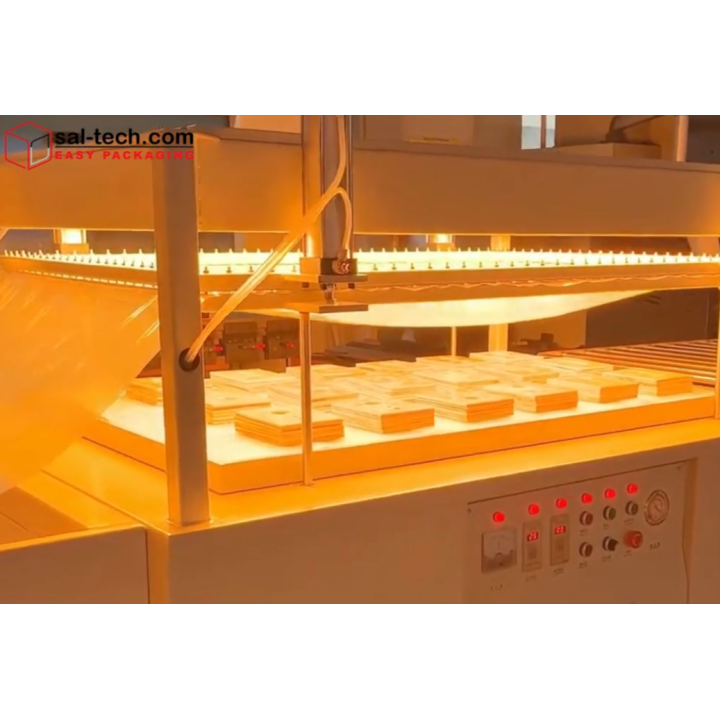

The STEP Skinpack Packaging Machines are available in two (2) models. Both are suitable for packing products of small to medium sizes. The machine makes a skin pack, where you have a sheet of cardboard. Then you place the products and the machine sucks the air inside film around the product while laminating the said film.

#Project Based#

Delivery date will be informed on order confirmation

The STEP Skinpack is compatible with a wide variety of packaging films ranging from PE films to PVC films which all produces different effects.

Skin packaging or vacuum packaging, is termed because plastic forms a sort of skin around the product and card. It is used in wide variety of packaged goods and consumer products. Most ideal as a display packaging and is commonly used in toys, tools, materials and even food products.

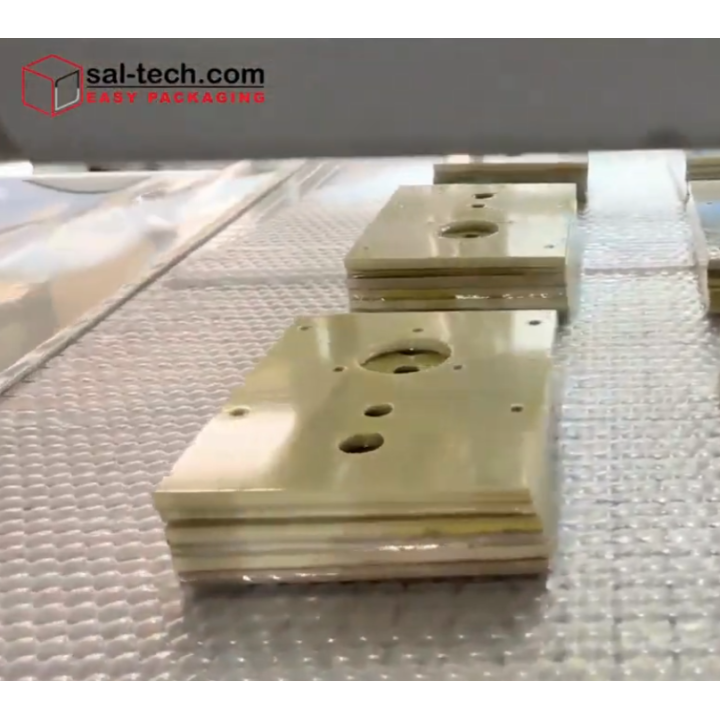

Multiple units can be grouped on the back board and then separated after the skin packaging, as this will increase capacity significantly.

The STEP Skinpack is compatible with a wide variety of packaging films ranging from PE films to PVC films which all produces different effects.

Specifications	STEP Skinpack 8080
Model	STEP Skinpack 8080
Voltage	380V/50HZ 3P
Air Compressor	0.5-0.8MPa
Working Surface	800 x 800 mm
Way of Running	With a slide
Quantity of Vacuum Pump	2-3 units (depends on the best effect)
Capacity	20-50 s/cycle
Suitable Film	PVC, PE
Film Width	880 mm
Method for Installing Film	Hang
Cutting Way	Constant temperature cutting
Heating Way	Instant heat heating tube
Packing Dimension	1960 x 1168 x 1680 mm
Weight	235 kg
Item Number	43811030
