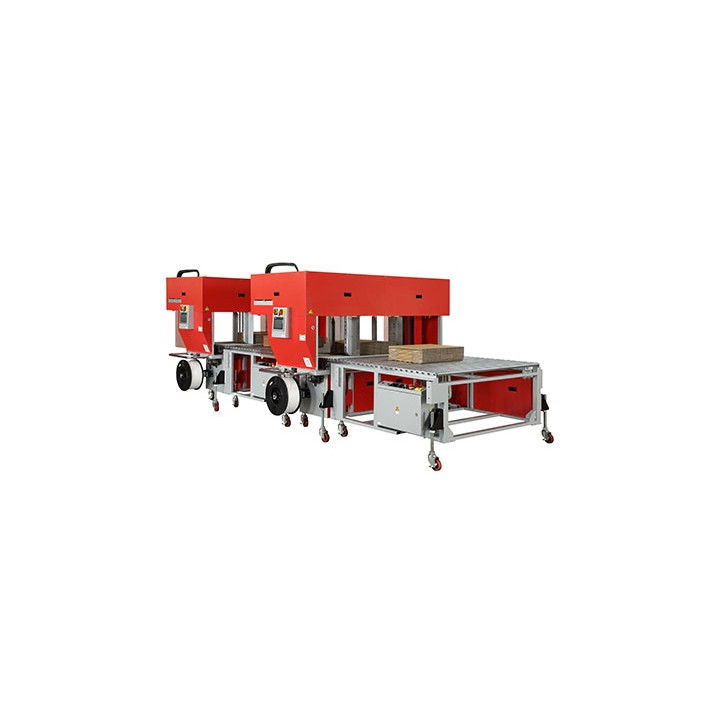

STEP TP-702CQ3-T Corrugated Tandem Strapper, Squaring & Back stop machine

Reference 41202180 Items available 0 Condition New

kr565,500.00

Tax excluded

STEP TP-702CQ3-T Tandem High Speed Corrugated Strapper- with Integrated Squaring System is an all-electric TANDEM system with 3-side squaring design. Built on the quality proven Transpak TP-702C corrugated strapper, it carries all the innovative features of the TP-702C. Motorized squaring and backstop devices provide precise bundle handling and positioning for forming perfect bundles.

Out-of-Stock

Features

• Compact & robust strapping head
• 3-side squaring bundle control
• Automatic bundle size setup system
• Up to 32 bundles per minute
• Motorized full-width press bar
• Multiple operation modes
• Siemens PLC and HMI (touch panel)
• Good for small bundle
• Free access to strap guides (patents registered)
• Hinged roller table

Options

• Dual dispensers with auto coil change
• Light tower with low strap sensor
• Energy saving transit with auto sleep mode
• Floor rails
• Press roller on accumulating conveyor
• Bus interface for bundle size data transfer from upstream equipment

Technical Data
Arch Size	1650 mm (W) x 450 mm(H)
Capacity	Up to 32 bundles/minute (single strap)Up to 26 bundles/minute (double straps)
Strap Width	5 mm, 6 mm, or 9 mm
Tension Range	1 - 32 kg
Electrical Requirements	220V, 380V, 400V, 415V 50/60Hz 3PH
