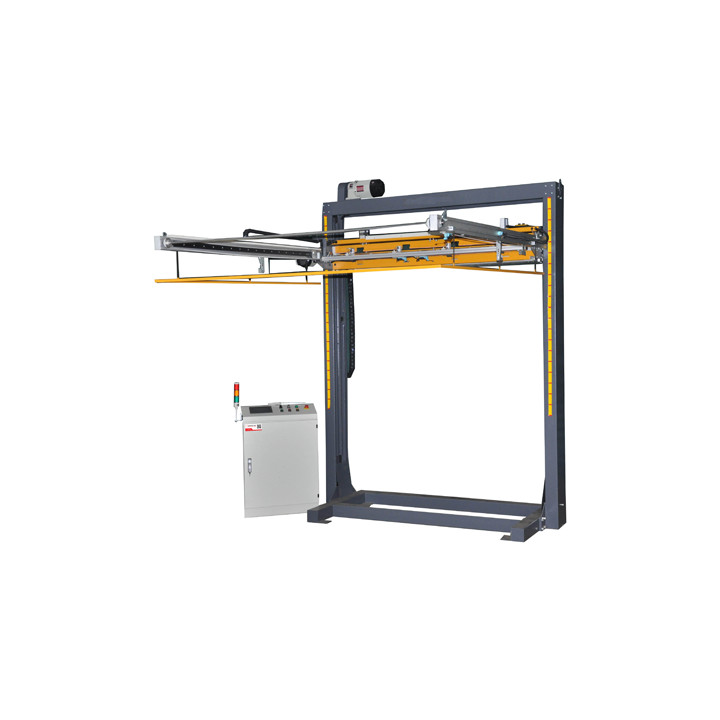

STEP WRAP 3800 Top sheet dispenser Automatic

Reference 43083800 Items available 0 Condition New

kr0.00

Tax excluded

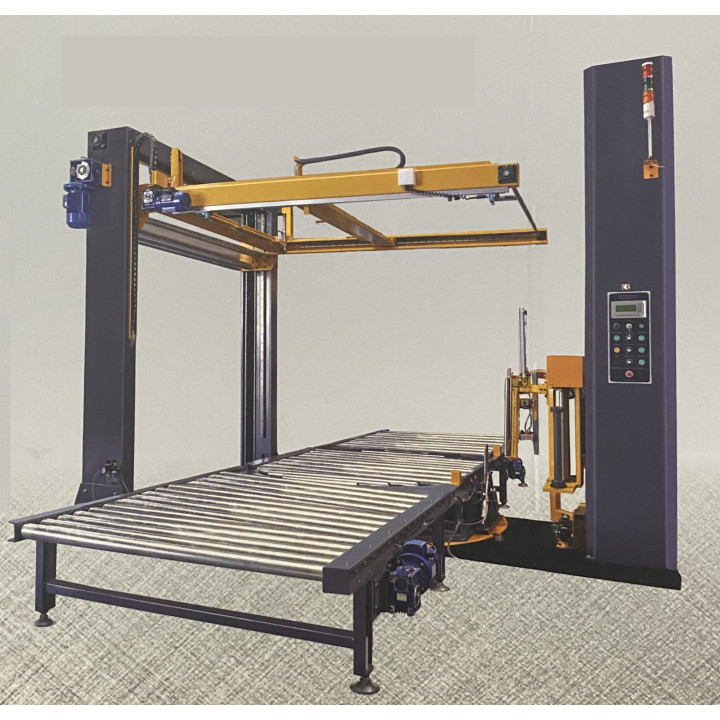

STEP WRAP 3800 Top sheet dispenser can be integrated with STEP Wrap 3700 Pallet Wrapper Fully Automatic, to achieve top cover and wrapping of loads. So the loads can be fully prevent from rain drop.

Out-of-Stock

Product advantage

• In-line use, automatic cover the top of loads.
• Can be integrated with STEP Wrap 3700 Pallet Wrapper Fully Automatic.

Features:

• This is conveyorized wrapper for automated unmanned packing lines.
• Machine automatically detects loads and load height, and starts dispensing process.
• Automatically cut top sheet by motor driven knife.
• Top Sheet changing location for easy sheet roll change.
• Top sheet dispensing speed and conveyor speed variable.
• Top sheet off alarm.
• This machine could be integrated with STEP Wrap 3700 Pallet Wrapper Fully Automatic

Options:

• Load size and height could be custom made to specific applications.
• Safety fencing for better protection of operators Under conveyor.
• Top sheet lifting crane for loading of sheet roll.

Specifications:
Fit for Pallet size	L1200W1200H1800mm
Conveyor line height	500±30mm
Top dispensing unit lifting speed	3m/min
Top Sheet Pulling Speed	12m/min
Top Sheet Size	Width 1700mm max, Length variable
Control	PLC
Cut Method	Knife cutting (rodless cylinder)
Air Pressure	0.4-0.7Mpa
Power	3PH 380V AC, 50 Hz
