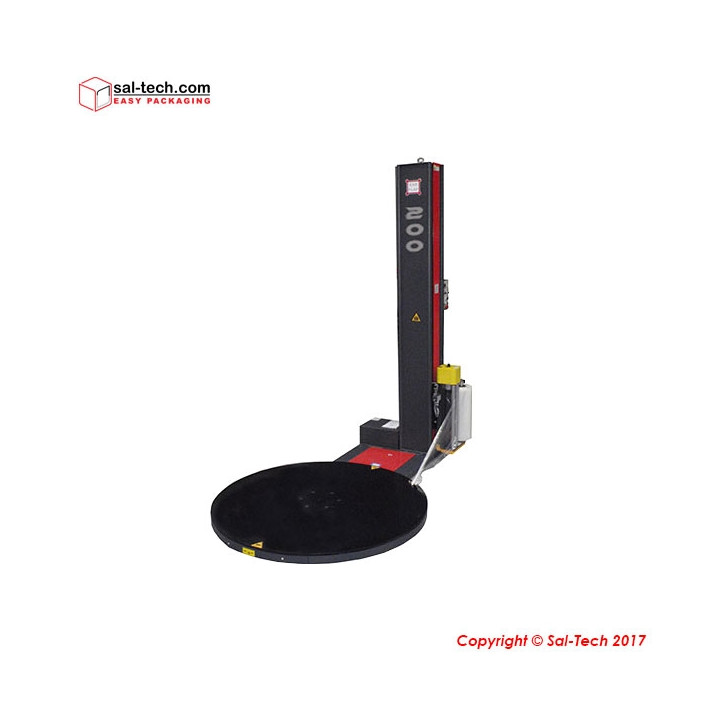

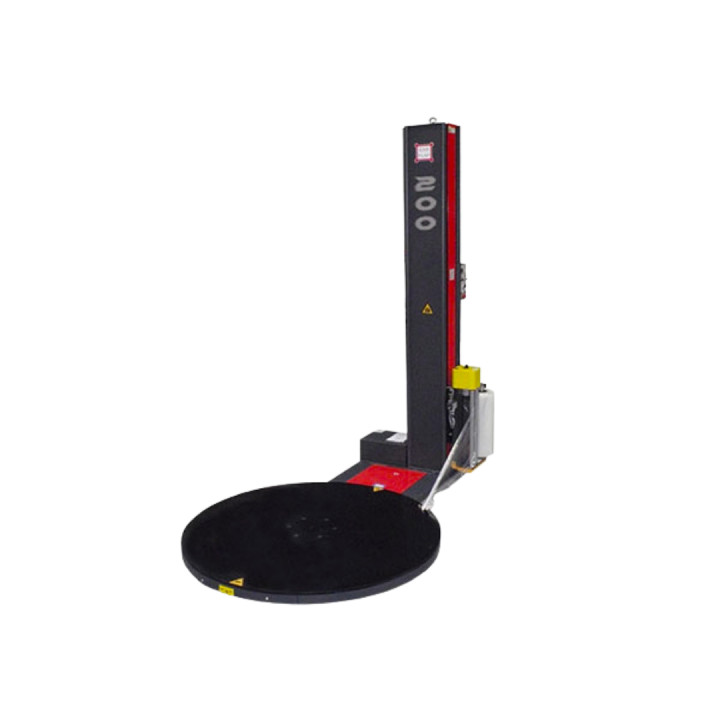

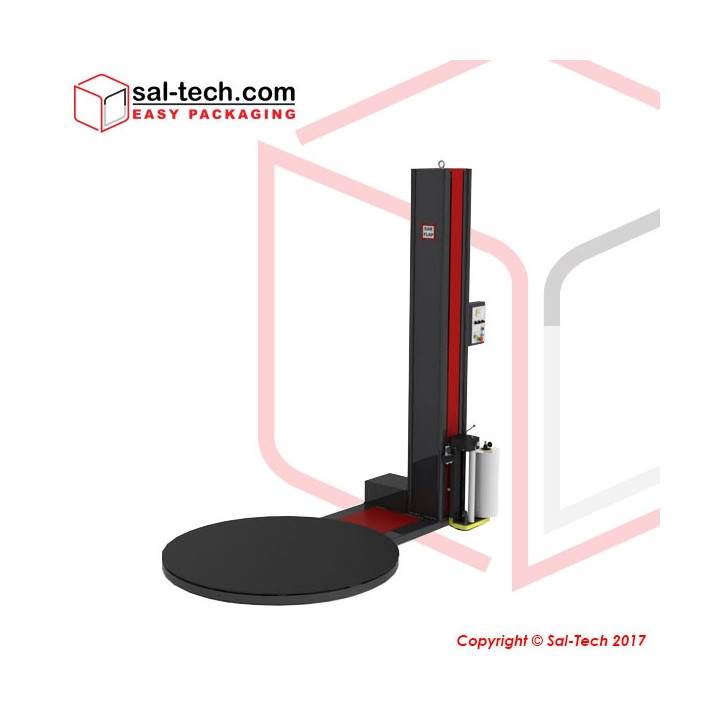

STEP MODEL 200 Semi-Automatic Turntable Pallet Wrapper

STEP Model 200 Semi-Automatic Turntable Pallet Wrapper

Reference 43050200 Items available 0 Condition New

kr35,000.00

Tax excluded

Semi-automatic machine that wraps pallets using PE sheets, this equipment is made with a robust plate and 1650mm-diameter turntable.

Out-of-Stock

STEP Model 200 is a semi-automatic machine that wraps pallets at variable speed. Designed with a PLC Control panel to make operation simple and an installed wrapping programs, from single, cross wrap, cross-plus, and full. Promoting an ergonomic and compact solution for meeting production up to 20 pallets per hour.

Features:

1. Variable Speed: 20 pallets per hour

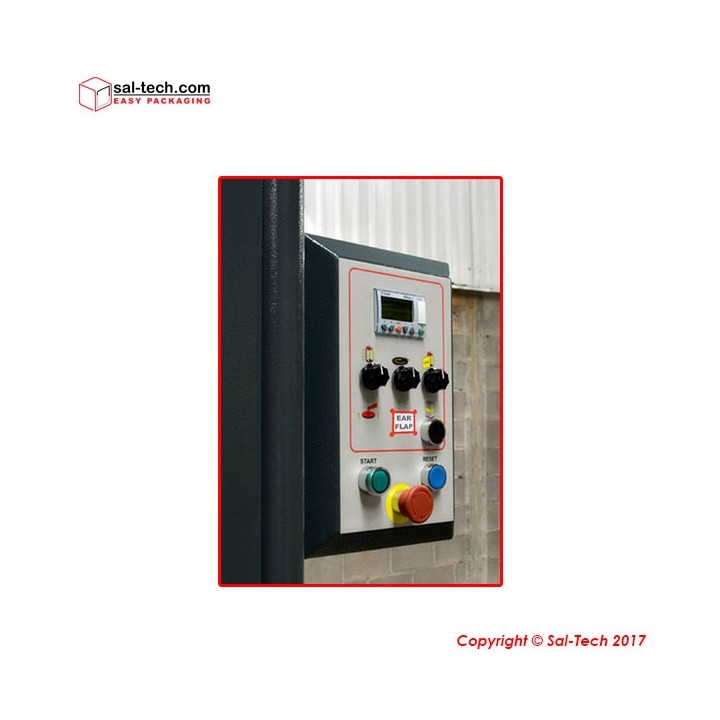

2. PLC Control Panel Installed
3. Automatic Height Detector
4. 4 Wrapping Programs

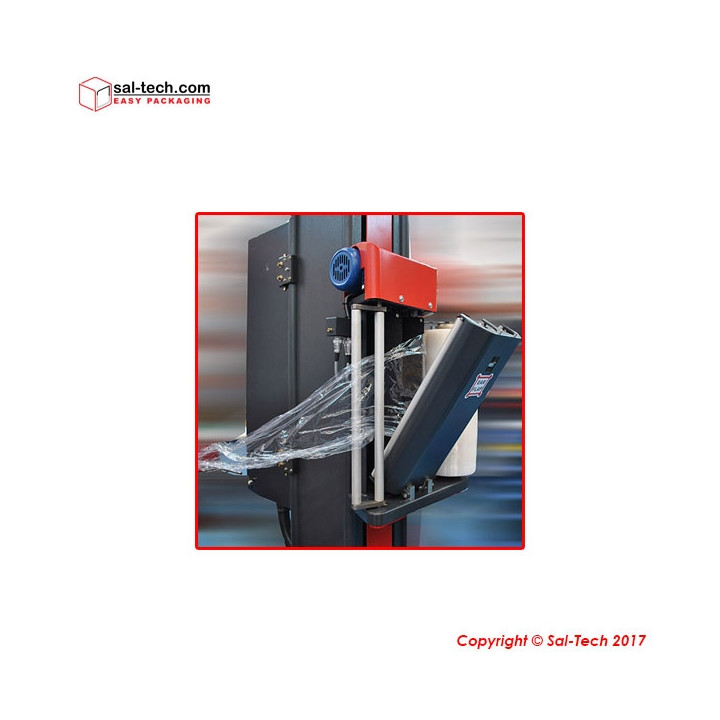

5. Film Dispenser with Modifiable Speed
6. Modifiable Mechanical Film Brake
7. 1650mm Turntable Diameter and a Robust Plate
8. Counter for Wrapping Cycle
9. Soft Start Turn and Frequency Inverter
10. Wraps Reinforcement, at any time during cycle

Specifications:
Speed	Max 20 Pallets per Hour
Turntable	Yes
Display	PLC Control Touch Screen
Wrapping Programs	4 Programs
Power	1KW
Turntable Diameter	1650 mm
Turntable Plate Thickness	10 mm
Pallet Features
Wrapping Process	Vertical
Height	Maximum of 2400 mm
Pallet Dimension	1200 mm x 1100 mm
Weight	Maximum of 2000 kg
Coil Features
Type	PE Sheet
Width	500 mm
Thickness	Maximum of 50 Microns
Description of Option
STEP Item No. (Standard Version)	43050200
STEP Item No. (Pre-stretch Brake)	43050220
STEP Item No. (Access Ramp)	43050200-100
STEP Item No. (Top Pressing Device)	43050200-110
STEP Item No. (Platform 2000mm)	43050200-120
STEP Item No. (Platform 2400mm)	43050200-130
STEP Item No. (Platform 3000mm)	43050200-140
STEP Item No. (ATEX Version)	43050200-150
STEP Item No. (Sub Zero Temperature)	43050200-160
STEP Item No. (Column max. Height 2800mm)	43050200-170
STEP Item No. (Ultrasound Detector for Black Loads)	43050200-180
STEP Item No. (Pit Frame Platform 1650mm)	43050200-190
STEP Item No. (Scale with Display)	43050200-200
STEP Item No. (Powered Film Pre-Stretch)	43050200-210
STEP Item No. (Twin Film Holder)	43050200-230
STEP Item No. (Special Top Holder for Flat Loads)	43050200-240
STEP Item No. (Stainless Steel Version)	43050200-250

Options:

• Pre-stretch brake
• ATEX Version
• Sub Zero Temperature Version

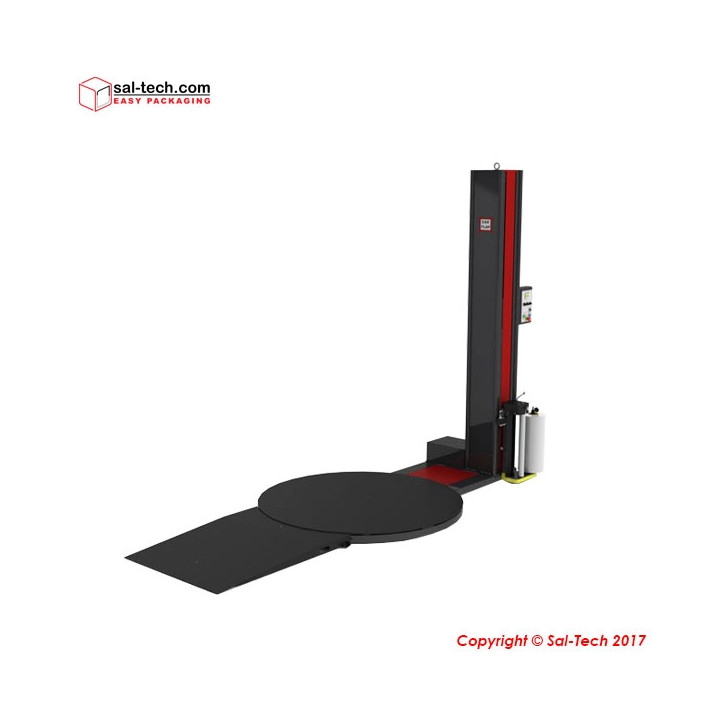

• Turntable accessing ramp.
• Embedding frame.
• Powered film pre-stretch.
• Twin film holder.
• Powered top platen.
• Special top holder for flat loads.
• Load detection options: ultrasound.
• Platform 2000mm
• Platform 2400mm
• Platform 3000mm
• Column max. height 2800mm
