STEP TP-502MH Semi-Automatic Strapping Machine

Reference 41000130 Items available 0 Condition New

kr48,500.00

Tax excluded

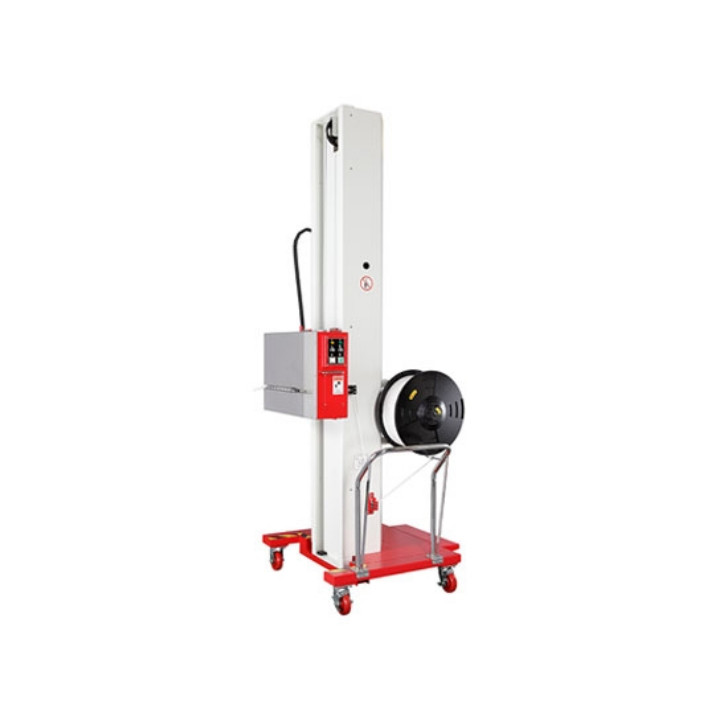

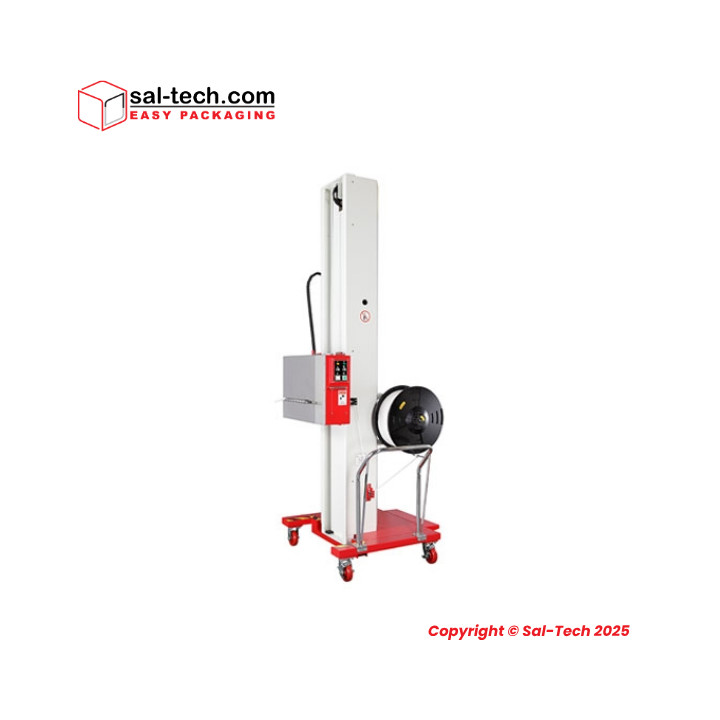

The STEP TP-502MH Semi-Automatic Strapping Machine is designed for horizontal pallet strapping without the need to lift or reposition pallets.

Machine will be back ordered according to agreed specifaction

STEP TP-502MH STEP TP-502MH

Semi-Automatic Strapping Machine

Engineered for low volume applications, this machine is built around German-made DC engines for quicker strap sealing and a higher rate of efficiency. It's also crafted with ergonomic and economic qualities — adjustable height and movable equipment make for a simpler strapping process and strong value for money.

Standout Feature

A compact mechanical strapping head with no chains, pulleys, or belts — quieter operation and fewer maintenance issues to worry about.

Key Features

Compact Mechanical Strapping Head — Guarantees low noise. No chains, pulleys, or belts, so it's less prone to maintenance issues and troubles.

Adjustable Strapping Height — Adapts to pallets from 175mm to 2200mm tall, with easy adjustment for the operator.

Electronic Tension Control — Adjust tension through the electronic control panel, with tension force up to 700N (70kg).

Jog Switch — Lets you fine-position the machine for proper maintenance.

Adjustable Weld-Cooling Time — Extend cooling for higher tension efficiency.

Moving Direction — Moves sideward and forward as needed for precise strapping of boxes.

Specifications

Dimension (W x D x H)	891mm x 1130mm x 2822mm
Strapping Height	Minimum: 175mm \| Maximum: 2200mm
Machine Net Weight	292kg
Battery Charging Time	—
Strap Requirements	PP Straps — Width: 9mm, 12mm, 15.5mm \| Thickness: 0.6mm – 0.8mm
Strapping Speed	45s, 3 straps (for package size 1200W mm x 800H mm)
Tension Range	8 – 70kg
Minimum Package Height	200mm (pallet included)
Strap Inner Core	200mm (diameter)
Electrical Requirements	110V/220V/230V/240V, 50/60Hz, 1PH
Power Consumption	0.33kW
