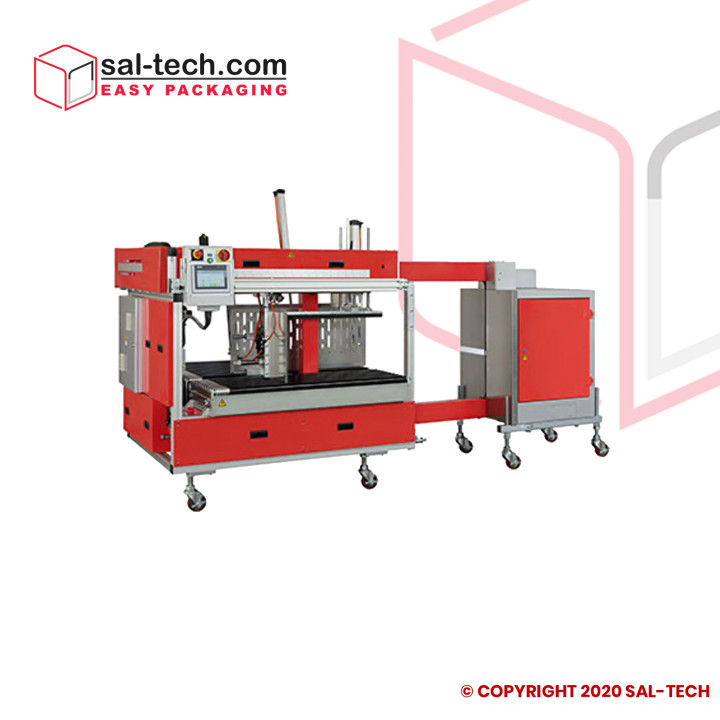

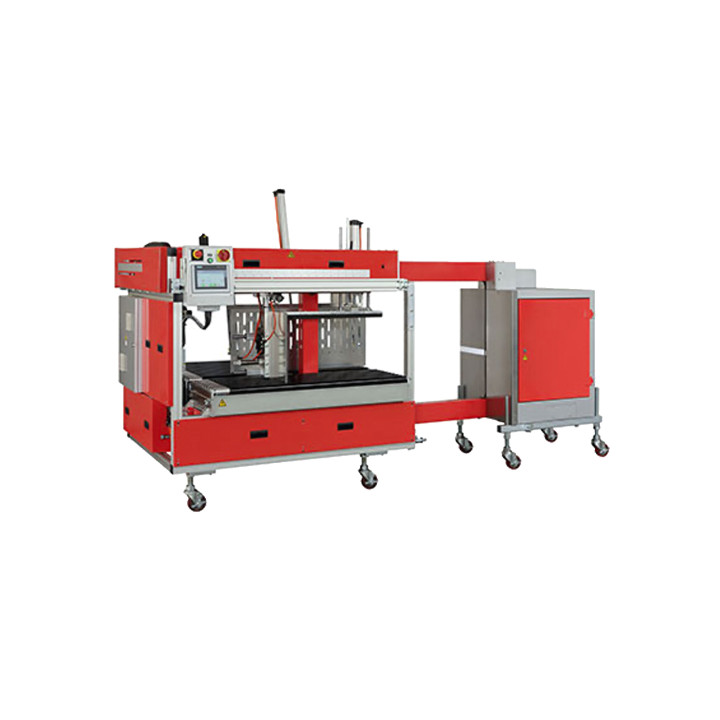

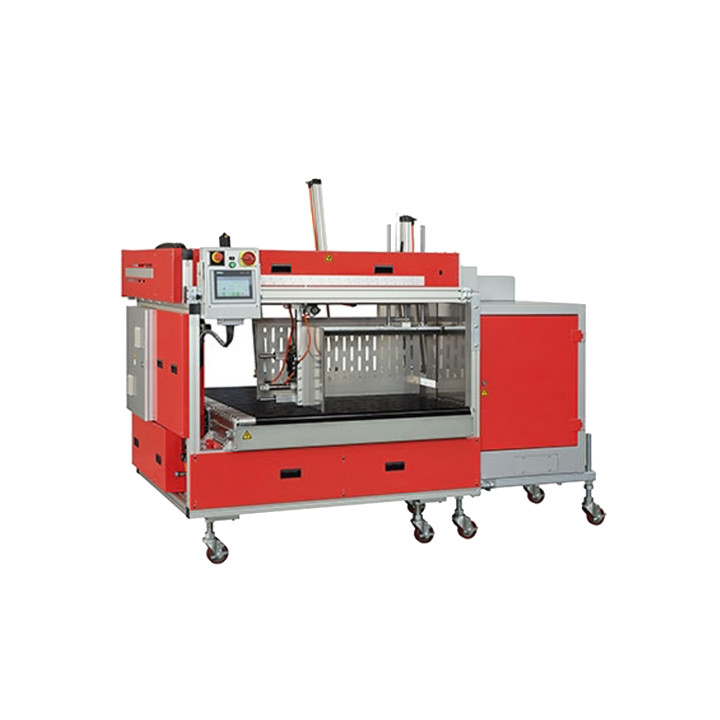

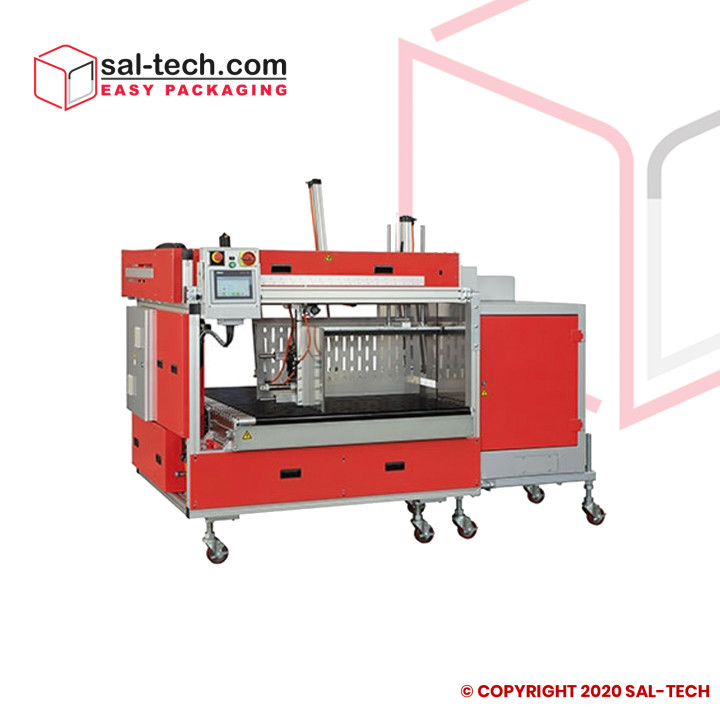

STEP TP-702CTRS High Speed Strapper for Specialty Folder Gluer Boxes

Reference 41202190-1000 Items available 0 Condition New
kr0.00
Tax excluded

STEP TP-702CTRS High Speed Strapper for Specialty Folder Gluer Boxes is designed to strap specialty boxes, including crash lock boxes, four corner tray and other folded type boxes from shingled-stream folder gluer output.

Out-of-Stock
Share

Features

• Compact & robust strapping head
• Ascending backstop with sensor
• Quick and effortless changeover
• Easy maintenance
• Siemens PLC and HMI (touch panel)
• Free access to strap guides (patents registered)

Options

• Light tower with low strap sensor
• Foot pedal switch
• Powered top conveyor
• Additional backstop

Specifications:
Maximum Bundle Size (arch width width height length) 1000 mm 950 mm x 400 mm x 1300 mm 1300 mm 1250 mm x 400 mm x 1300 mm 1600 mm 1550 mm x 400 mm x 1300 mm
Capacity Up to 23 bundles/minute (single strap)
Strap Width 5 mm, 6 mm, 9 mm, or 12 mm
Strap Tension 1 - 32 kg (for 5 mm, 6 mm, 9 mm)
1 - 55 kg (for 12mm)
Electrical Requirements 220V, 380V, 400V, 415V 50/60Hz 3PH
Item Number 41202190-1000 41202190-1300 41202190-1600
  • Reference41202190-1000
STEP TP-702CTRS CatalogOpen or download document Download
