STEP TP-6000CE1 with Center Sealing Point

STEP TP-6000CE1 with Center Sealing Point

Reference 41100342-CS-A125.40 Items available 0 Condition New

kr41,030.99

Tax excluded

The STEP TP-6000CE1 2050x400 is a high-performance packaging machine designed for efficiency and precision in sealing operations. This model features a center sealing point, making it ideal for various industrial applications that require robust and reliable packaging solutions.

Out-of-Stock

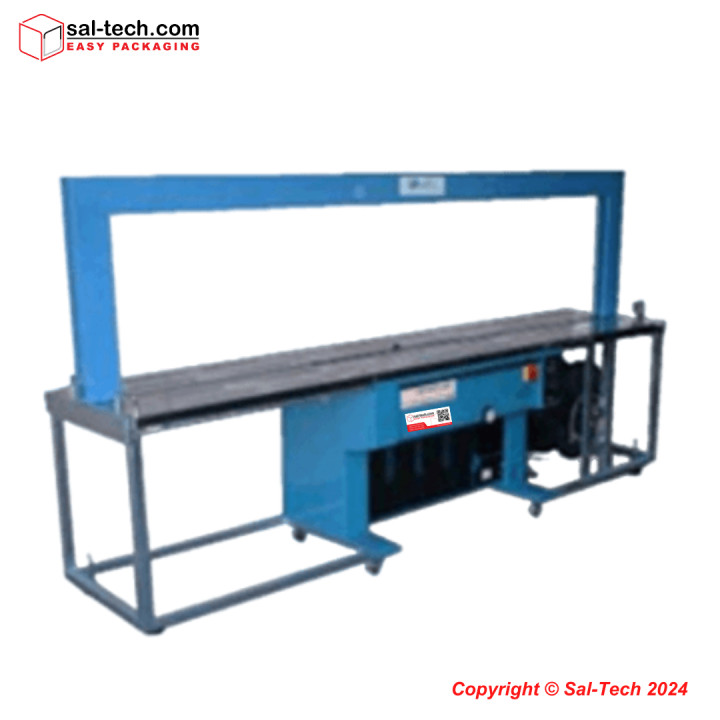

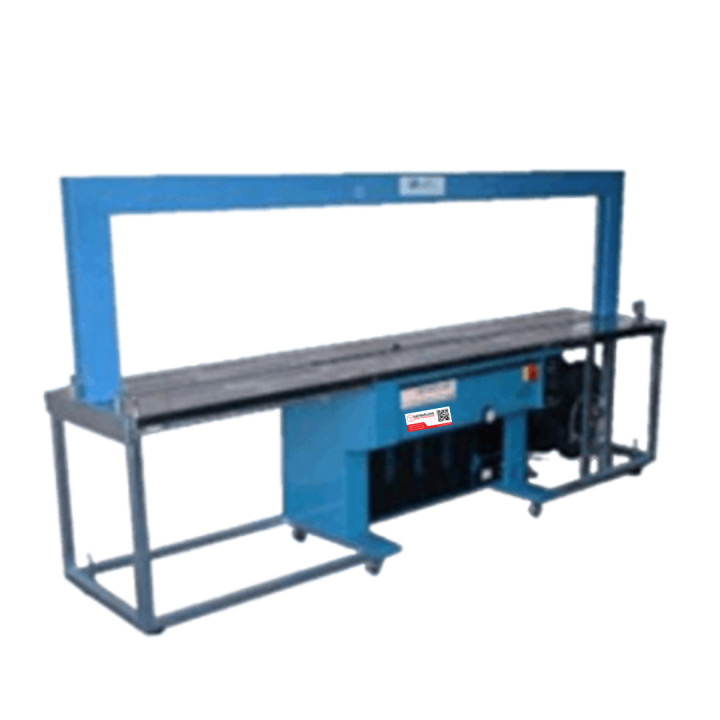

Center Seal Strapping Arch STEP TP-6000CE1

Automatic Strapping Machine with Center Sealing Point

A center seal point matters when the strap needs to land in the middle of a bundle rather than off to one side — better balance, cleaner presentation, and a more secure hold on irregular or bulky loads. The STEP TP-6000CE1 is built around that need: precision strapping in an automatic arch, with the flexibility to run with or without the arch attached.

Produced in Taiwan and engineered as part of a project built in Denmark. Assembled dimensions are 2520mm x 770mm x 1500/1050mm (with/without arch), shipping at 260kg.

Standout Feature

Runs with or without the arch attached — one machine that adapts to different bundle sizes and floor layouts without a separate setup.

Key Features

Film Compatibility — Runs standard strapping material without needing a special or proprietary supply.

Efficiency — Cycles through 5 to 27 straps a minute, depending on the product, for high-throughput lines.

Safety Features — Built-in safeguards protect operators during automatic cycling.

Compact Design — Fits into tight production lines without demanding extra floor space.

User-Friendly Interface — Straightforward controls for setup, operation, and monitoring.

Specifications

	2050 x 400	1650 x 400	1250 x 400
Model	STEP TP-6000CE1 2050x400	STEP TP-6000CE1 1650x400	STEP TP-6000CE1 1250x400
Arch Size	2050mm x 400mm	1650mm x 400mm	2050mm x 400mm
Strap Size	12mm
Strap Tension	10kg – 70kg (CE version: up to 45kg)
Capacity	5–27 cycles/min, product-dependent
Table Height	810mm
Net Weight	220kg
Electrical Connection	230V, 50Hz
Item Number	41100342-CS-A205.40	41100342-CS-A165.40	41100342-CS-A125.40
