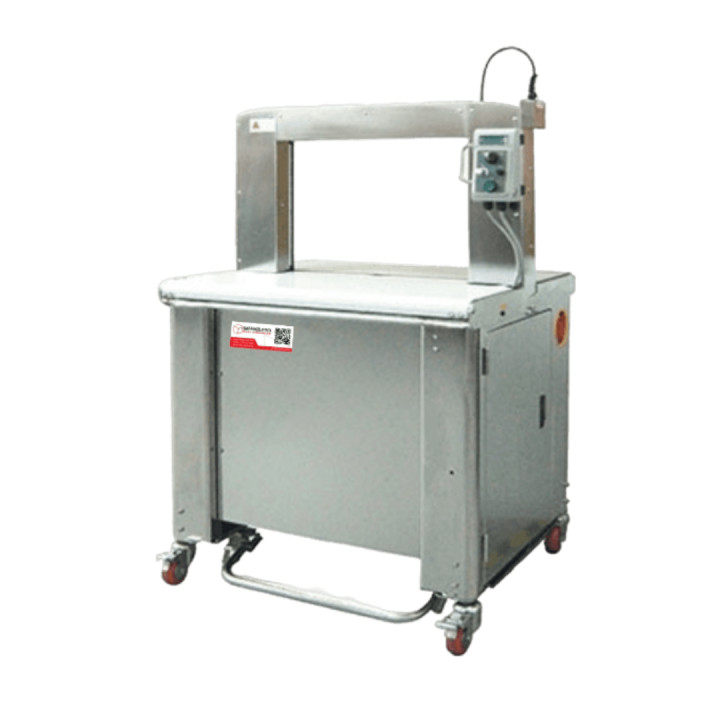

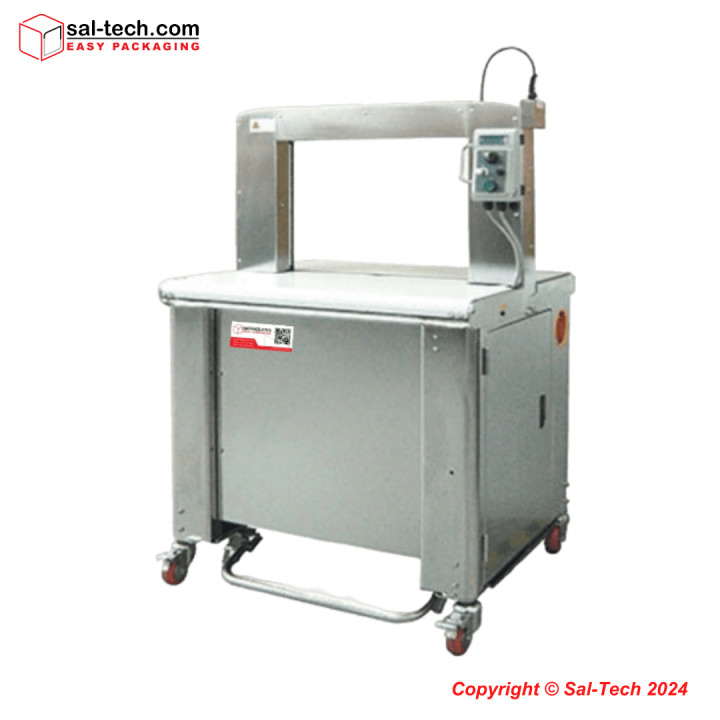

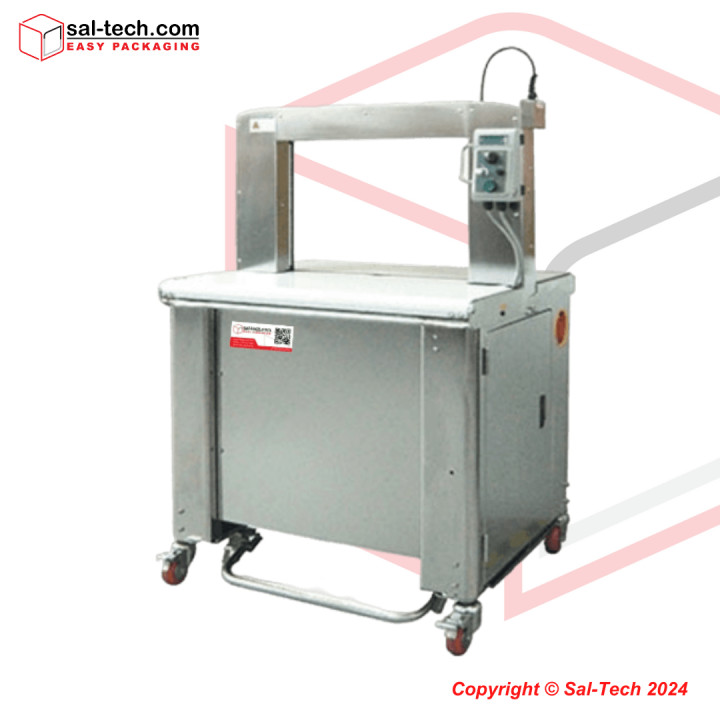

STEP TP-702RSS 5mm Mercury Strapping Machine

STEP TP-702RSS Mercury Strapping Machine Stainless Steel

Reference 41190605-A55 Items available 0 Condition New

kr59,990.00

Tax excluded

The STEP TP-702RSS is a high-speed automatic strapping machine with a stainless steel frame. It delivers dependable high speed performance for tiny or round package applications and is suited for damp working environments such as meat, seafood, poultry, and agricultural processing operations.

Strap width

On Backorder

Delivery date will be informed on order confirmation

Mercury Strapping Machine STEP TP-702RSS

Automatic Strapping Machine with Stainless Steel Frame

Key Features

Robust & Compact Strapping Head — A mechanical head built for durability without adding bulk.

Free Access to Strap Guides — Patented design for easier access during setup and maintenance.

Waist-High Quick Coil Change — Patented design that keeps coil swaps at a comfortable height.

Waist-High Auto Strap Feeding — Feeds strap automatically at the same comfortable height.

Turnable Control Panel — Rotates to face the operator from any working angle.

Auto Strap Ejector — Clears the finished strap automatically after each cycle.

Dispenser Release Switch — Quick manual release for the strap dispenser.

Sensor-Controlled Heater — Regulates sealing heat automatically for consistent results.

Low Voltage — Runs on a low-voltage circuit for added safety.

Strap End Ejector — Ejects the strap end cleanly after sealing.

Front Foot Bar Switch — Hands-free activation from the front of the machine.

Adjustable Table Height — Adjusts between 820mm and 920mm to fit the operator.

Specifications

	5/6mm Strap	9mm Strap
Model	STEP TP-702RSS Mercury Strapping Machine
Strap Width	5/6mm	9mm
Capacity	Up to 65 cycles/minute
Tension Range	1–32kg
Weight	158kg
Electrical Requirements	110V / 220V / 230V / 240V — 50/60Hz — 1PH
Item Number	41190605-A55	41190609-A55

Options

— Photo-eye switch
— Rear foot bar switch
— Foot pedal switch
— Lower adjustable table height (770–820mm)
— Stainless steel frame, SUS 304 (TP-702RSS)
