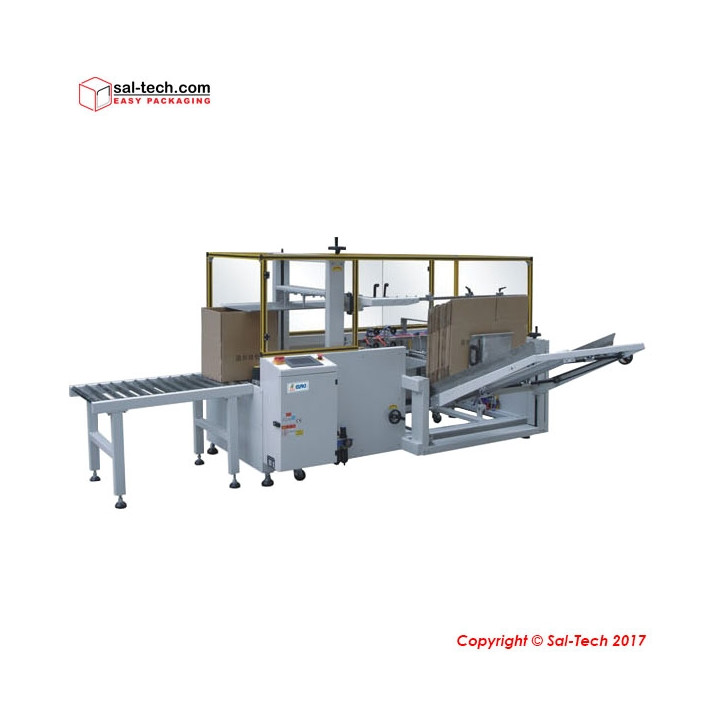

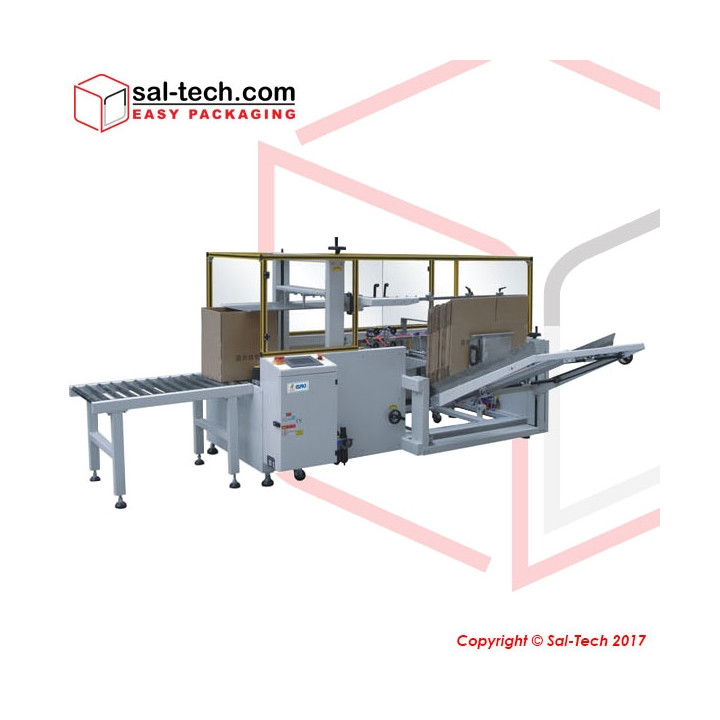

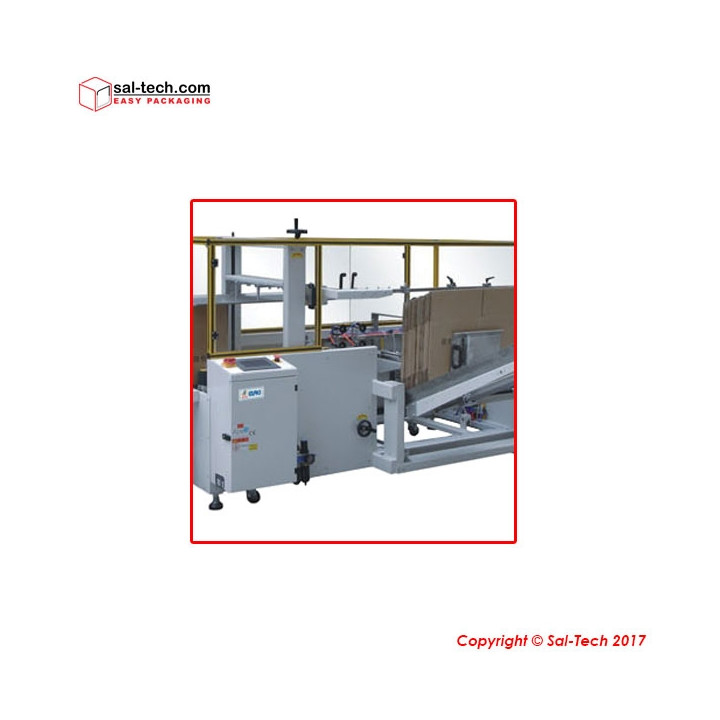

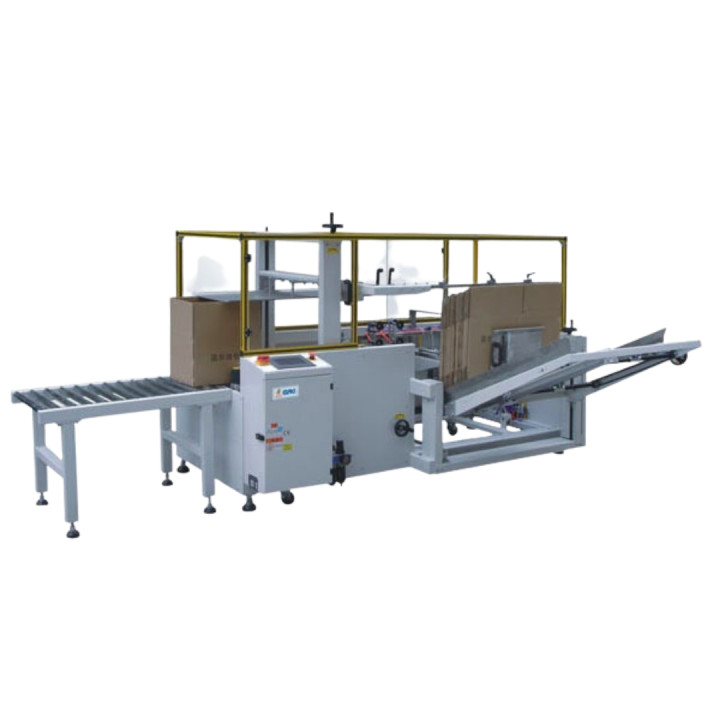

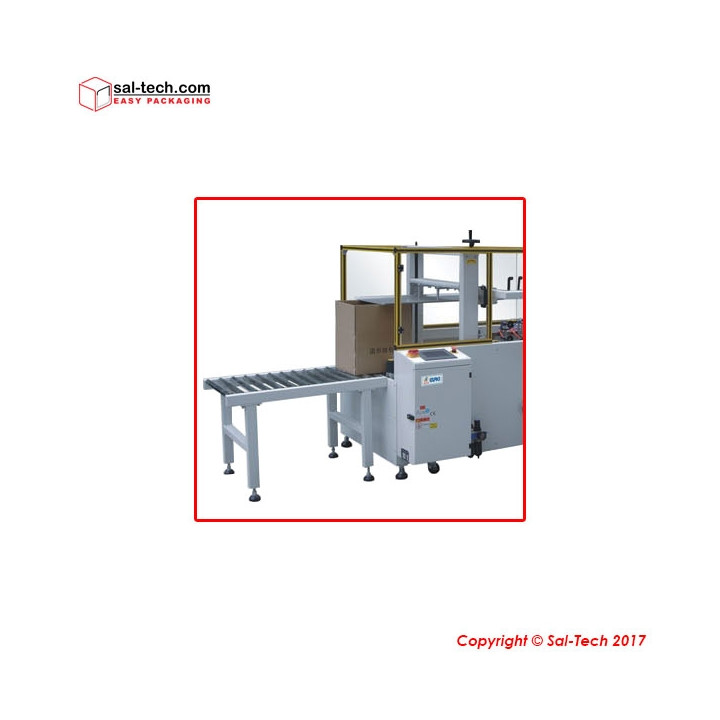

STEP K-40H18 Carton Forming and Bottom Sealing Machine

Reference 42121020 Items available 0 Condition New
Price: kr0.00
Tax excluded

A fast and reliable carton forming and bottom sealing machine that is equipped with high standard components to achieve great efficiency and effectivity in the warehouse. Programmed to form and seal boxes and is adjusted to cater corrugated boxes of different size and heighten process of forming at 18 cartons per minute.

Product availability: #Project machine for agreement of specification#
Share

STEP K-40H18 is a former and sealer of corrugated boxes. Difference from STEP K-40 is the added output per minute - measured as 18 boxes/min. This is innovatively designed to cater medium to large scale businesses that has high demand on box processing. Lightweight compared to other machines of same output in the market and is proven excellent when it comes to performance.

Taking you to the next level with its:
1. High Standard Materials: Electrical and pneumatic parts are imported and of high standard quality
2. Easy Feeding of Cartons: Cartons may be added without stopping machine operation, eliminating downtime
3. Forming and Sealing: Applicable for forming and sealing cartons of same sizes
4. Adjustable Carton Size: Manual modification to change carton size, finishing in 2 to 3 minutes
5. Photoelectricity Induction Control System
6. Safety System: Cutter is safe for use, and injuries from stabs are prevented
7. Durable and Compact Built: Reduces waste of time as machine forms, folds, and seals simultaneously
8. Vertical Storage
9. Lightweight
10. Speed
11. Quality Performance

SPECIFICATIONS:
Dimension (LWH) 2400mm x 2050mm x 200mm
Adhesive Tape 48/60/75mm
Weight 550kg
Model K-40H18
Packaging Size (LWH) 200-400mm x 150-350mm x 100-350mm
Speed 18 cartons per minute
Power Supply 110/220V 50/60Hz 200W
Air Compression 6kg/cm3
Air Consumption 450NL/minute
  • Reference42121020
