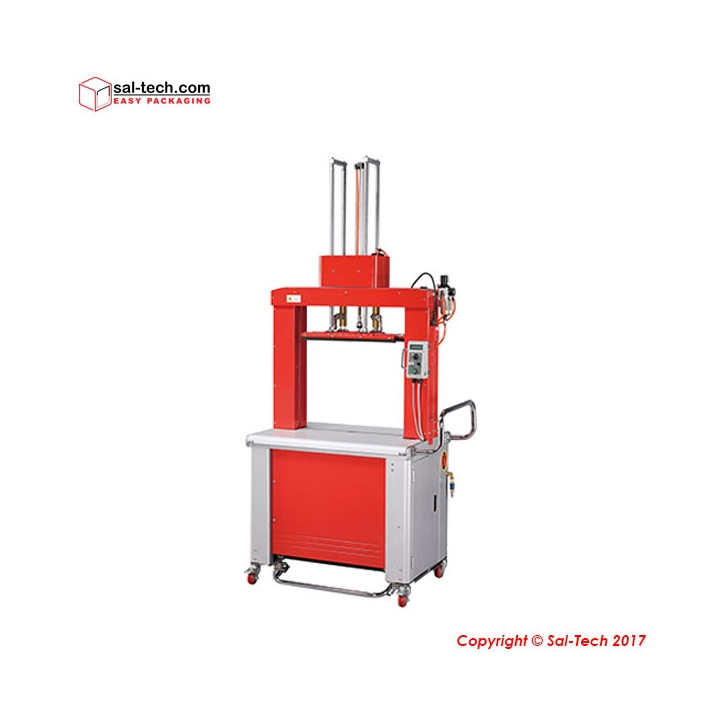

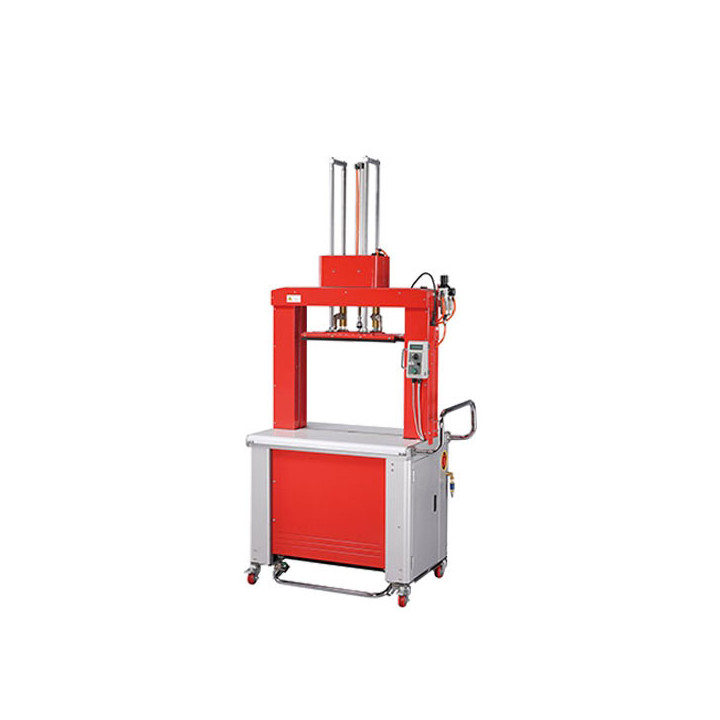

STEP TP-702P Automatic Strapping Machine with Pneumatic Press

STEP TP-702P Automatic Strapping Machine with Pneumatic Press

Reference 41193010 Items available 0 Condition New

kr98,500.00

Tax excluded

STEP TP-702P is an automated PP strapping machine equipped with Pneumatic Press feature. Best suitable for strapping materials/goods/products that can be compressed such as cardboard boxes, Papers/Magazines, and others.

Back ordered to order

STEP TP-702P

Dual Pneumatic Press Strapping Machine

The STEP TP-702P comes with a Dual Pneumatic Press function for compressing produce and strapping such efficiently and effectively. This equipment helps secure overall bundling productivity in the warehouse by eliminating downtime on coil change and strap end ejection. A compact design with German-made motors also requires less maintenance, reducing cost.

Taking You To The Next Level With Its:

01	Strapping Head	Crafted without belts, clutches, or pulleys but uses the latest motor technology providing reliability and accuracy. A compact design requiring less maintenance and cost due to its fewer components.

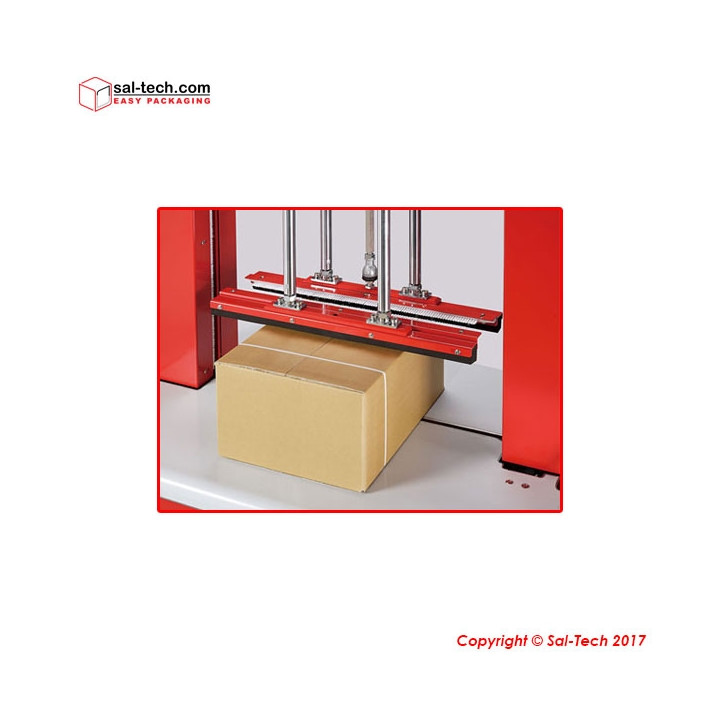

02	Dual Pneumatic Press	Compresses produce and strapping efficiently and effectively.
03	Free Access to Strap Guides	Enables fast access to strap guides, making a friendly design for maintenance.
04	Waist-High Auto Strap Feeding	Robotically feeds strap from the upper side of the coil.

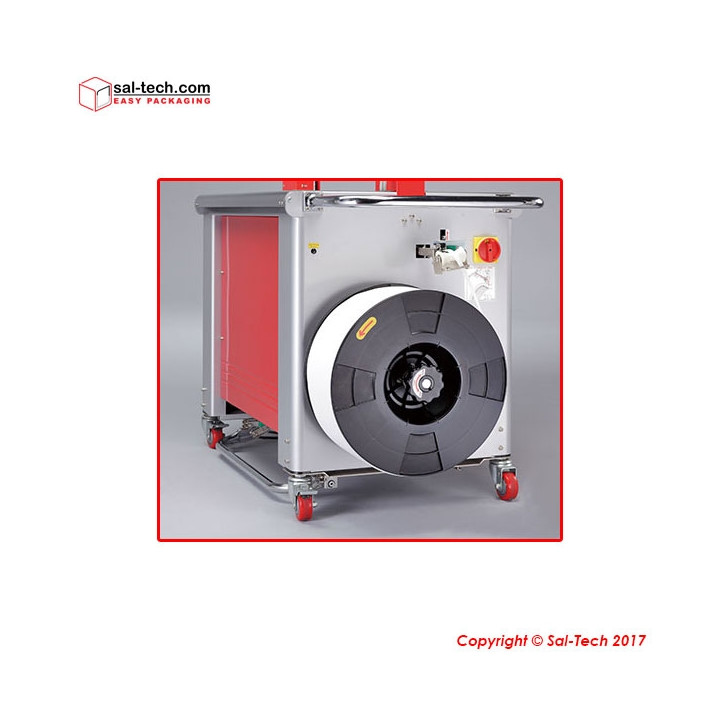

05	Waist-High Quick Coil Change	Makes coil change fast and efficient, eliminating downtime.
06	Turnable Operating Control Panel	Makes PLC Control easier as it may be accessed from both front and back. Seen on the upper right side of the machine.
07	Automatic Strap Ejector	Disregards and eliminates unnecessary straps for when the machine is powered accidentally, then eradicates downtime.
08	Dispenser Release Switch	Installed to have strap feeding from strap dispenser simpler.
09	Sensor Controlled Heater	Sealing feature is sensor controlled, guaranteeing consistency, quality, and productivity.
10	Low Voltage	All motors are of low voltage, hence safer for use.

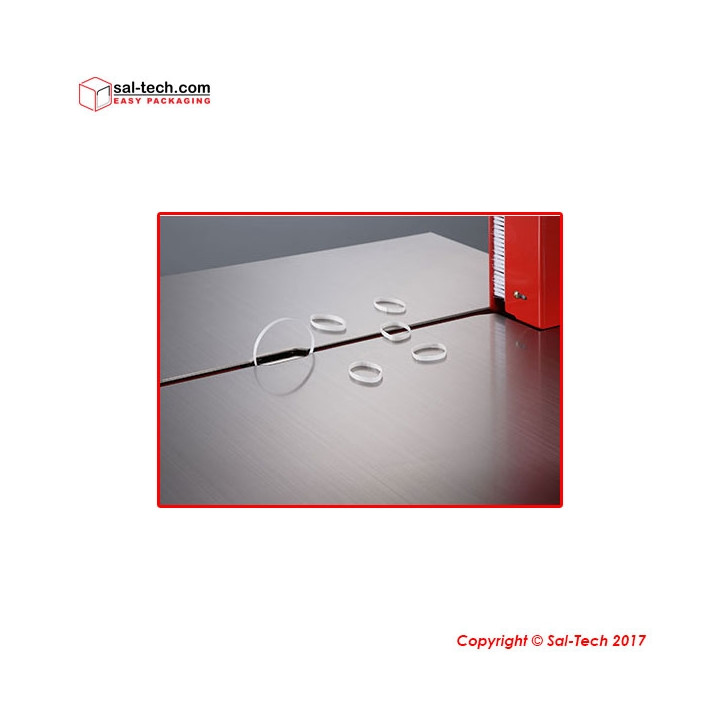

11	Strap End Ejector	Automatic strap ejectors help eliminate downtime as it dispels unnecessary straps mechanically.
12	Front Foot Bar Switch	Ergonomic design for easy machine operation.
13	Modifiable Table Height	Adjustable table height between 820mm and 920mm.

Specifications

	TP-702P-12	TP-702P-59
Strap Type	PP	PP
Strap Size	12mm	5mm, 6mm, 9mm
Speed	44 straps/minute	47 straps/minute
Tension Range	1kg – 45kg	1kg – 32kg
Machine Weight	226kg	224kg
Electrical Requirement	230V 50Hz, 1P Siemens Plug or Request for Other Voltage Version
