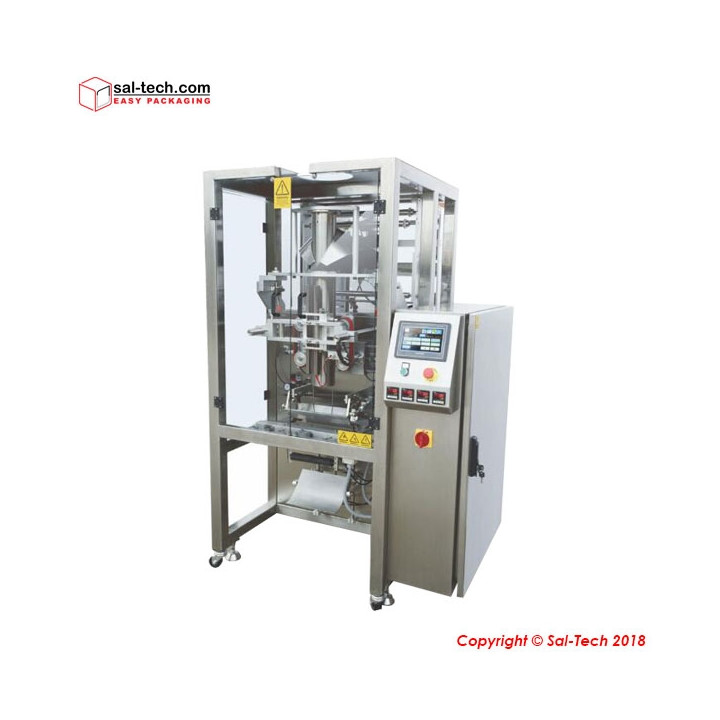

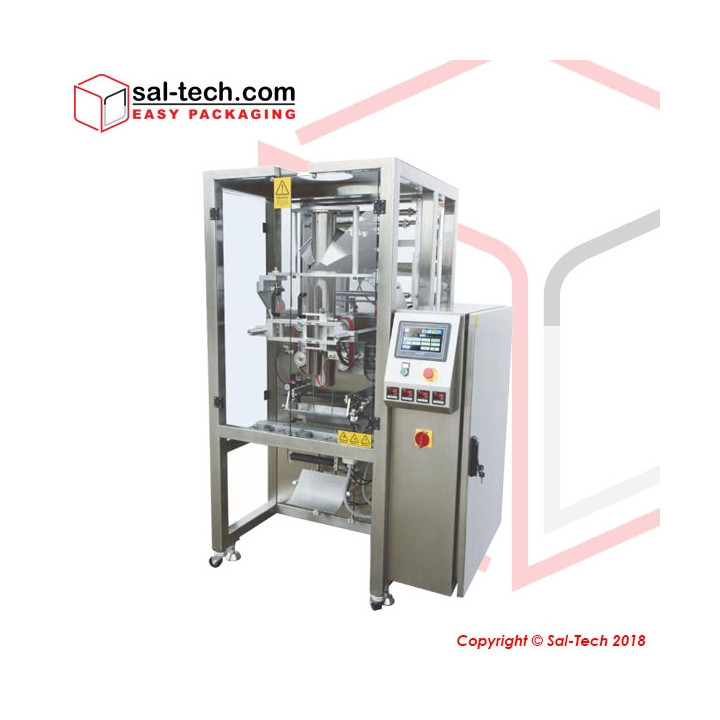

STEP PM620

Reference 48631040 Items available 0 Condition New

kr0.00

Tax excluded

A New generation vertical packaging machine for pillow bag style (Stainless steel frame), Accurate and Stable Bag Pulling System and makes perfect sealing.

Out-of-Stock

STEP PM620 is a Large Vertical Form Fill and Seal Machine designed for High speed, high efficiency to pack products such as Powder, solids, granule, liquid, paste etc. Easy for operators and easy to maintain.

Features:

5.7" touch screen control panel, PLC program
Bag pulling driven by servo motor
Automatic adjustment of bag length
Automatic eye mark tracking
Horizontal sealing by pneumatic
PID temperature control
Self-diagnose function
No film auto stop
Output Sum Up

Specifications
Model	PM-620
Filling Range	≤ 3000
Bag Length(mm)	≤ 500
Bag Width(mm)	≤ 295
Film width(mm)	≤ 620
Capacity(bags/min)	≤ 35

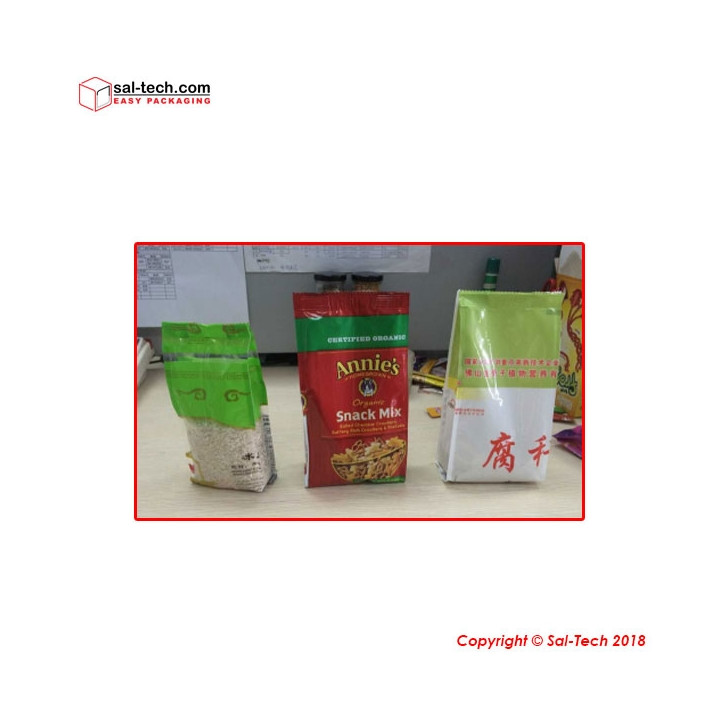

Bag style	Pillow or Gusset
Power source	230v/50Hz 1-phase / Siemens Plug or Request for Other Voltage version
Compressed air	6kg/min@06Mbar 6Litres/min@0.6Mbar
Dimension(mm) (LxWxH)	1345x1240x1660
STEP Item No.	48631040

Options:

• SS304 /SS316 structure
• Gusset bag device
• Nitrogen Inflating
• Linking bag cut-off
• Anti-static
• Hole punching
• Easy-tear notch
• Coding Function
