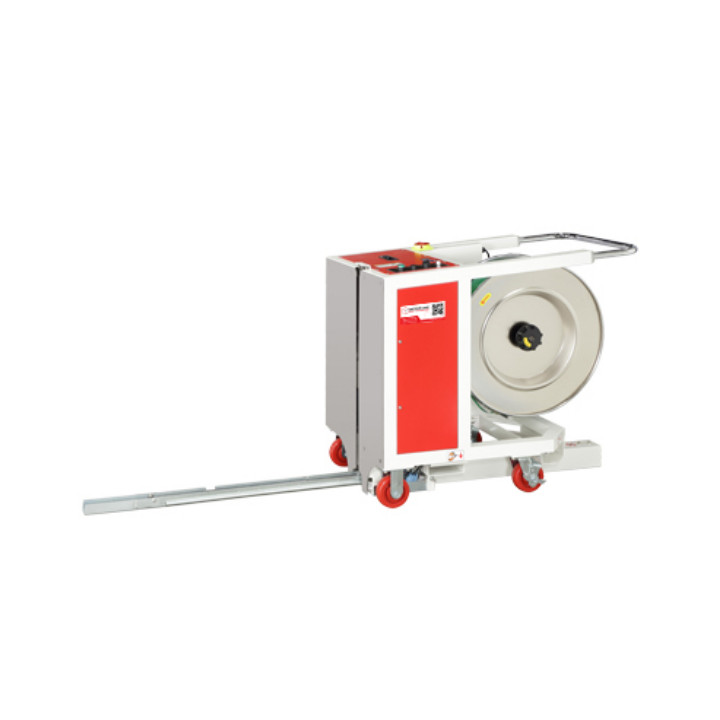

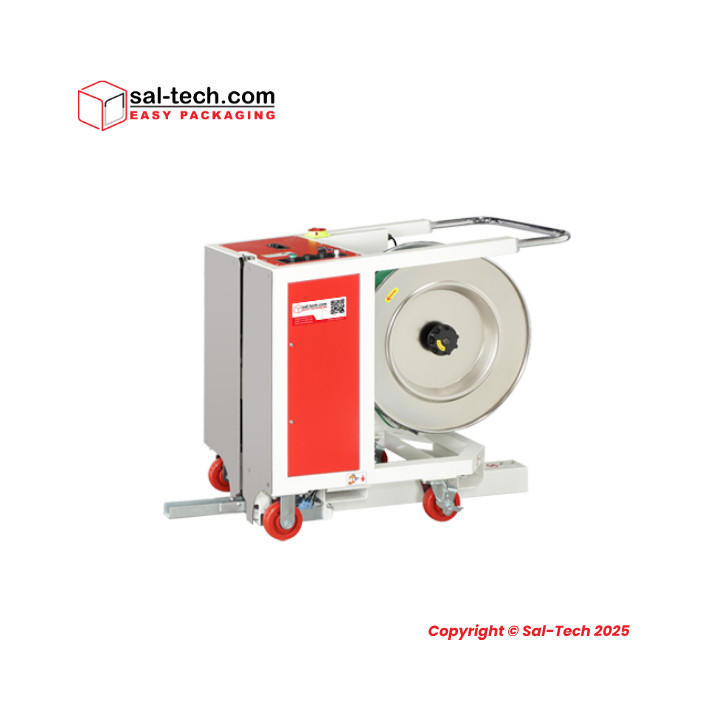

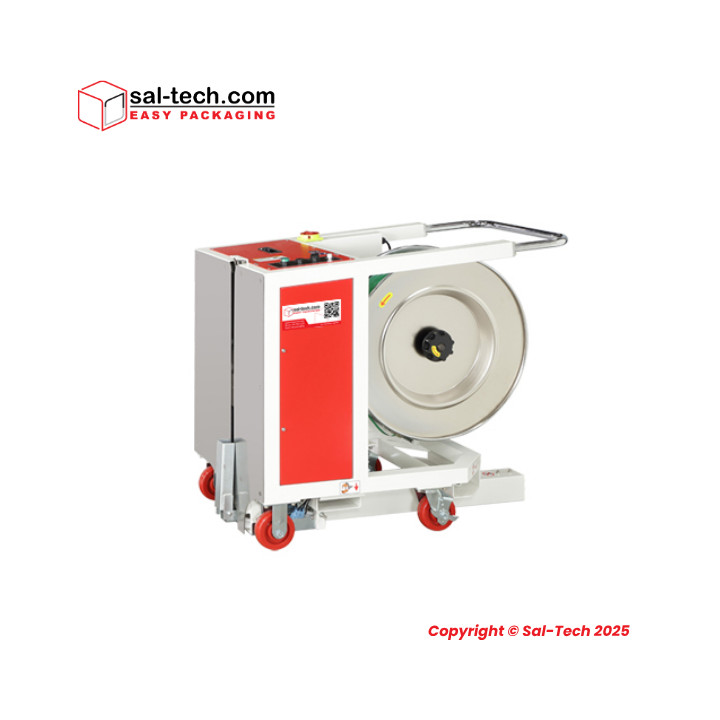

STEP TP-602MV Semi-Auto Pallet Strapping Machine – 9 / 12 / 15.5 mm

Semi-Auto Pallet Strapping Machine

The STEP TP-602MV Semi-Auto Pallet Strapping Machine is a mobile solution designed to simplify vertical strapping of palletized goods. Available for 9 mm, 12 mm and 15.5 mm PP and PET strap, it combines a retractable sword with friction-weld sealing to make pallet strapping faster and easier for the operator.

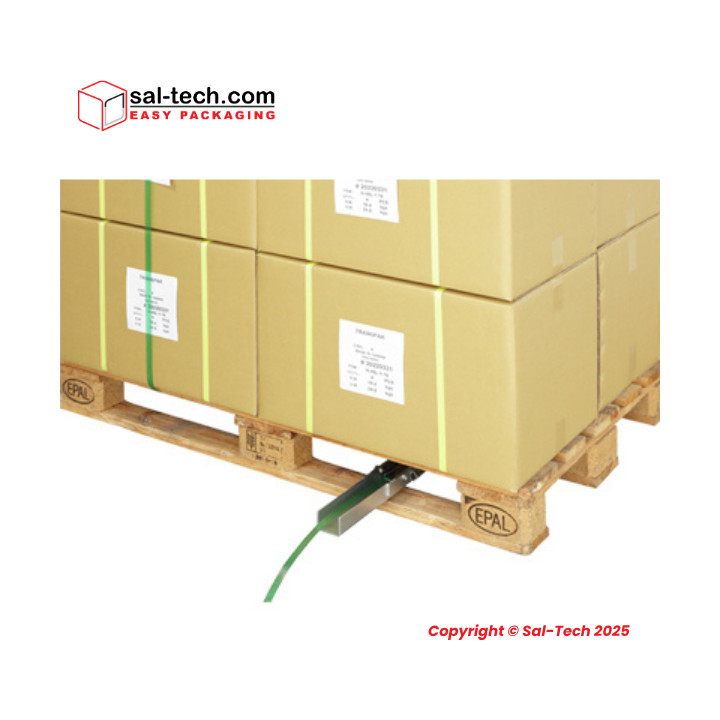

Instead of manually feeding strap underneath the pallet, the retractable sword guides the strap through the pallet void and returns it to the operator. This reduces unnecessary movement around the load and provides an efficient solution for low to moderate pallet-strapping requirements.

With a tension range of 70–1,500 N (7–150 kg), robust construction and mobile design, the TP-602MV is suitable for warehouses, distribution centres, production facilities and packaging areas handling palletized products.

Available Strap Widths

The STEP TP-602MV is available in three strap-width configurations:

9 mm – Item No. 41001009
For applications requiring narrower PP or PET strapping.

12 mm – Item No. 41001012
Standard general-purpose configuration for pallet strapping applications.

15.5 mm – Item No. 41001015
Wider strap configuration for applications requiring 15.5 mm PP or PET strapping.

Key Features

• 9 / 12 / 15.5 mm Strap Options — Select the strap width suitable for the application.
• PP & PET Compatible — Designed for both polypropylene and polyester strapping.
• Retractable Sword — Guides strap through the pallet void for efficient vertical strapping.
• High Tension — Adjustable tension range from 70 to 1,500 N (7–150 kg).
• Friction-Weld Sealing — Heat-free friction-weld technology creates a secure strap joint.

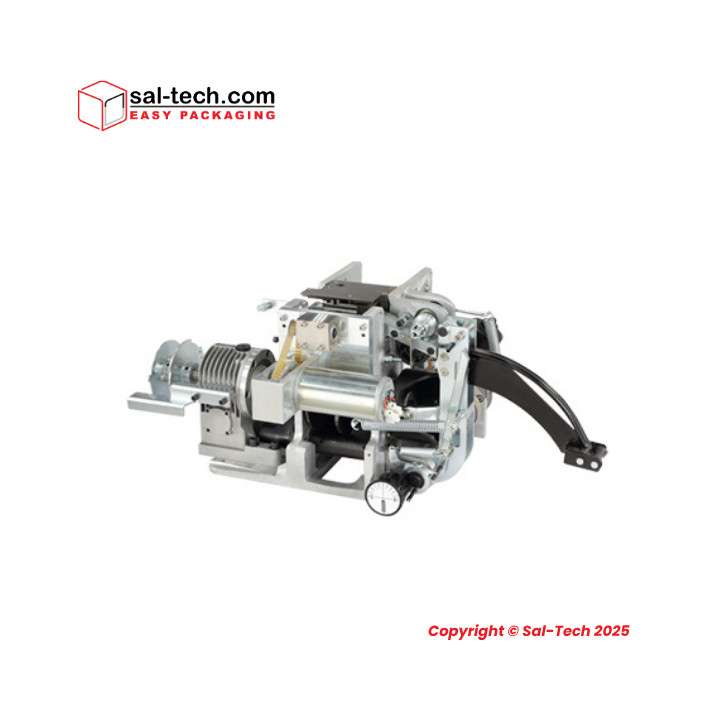

• Lubrication-Free Strapping Head — Robust head design helps simplify routine operation and maintenance.
• User-Friendly Control Panel — Straightforward controls for everyday operation.
• Adjustable Weld-Cooling Time — Allows the sealing cycle to be adapted as required.
• Manual Feeding — Operator-controlled strap feeding for flexible pallet handling.
• Error Message Indicator — Supports troubleshooting by providing machine status information.
• Good Mobility — Mobile construction allows the machine to be positioned where pallet strapping is required.
• Low Sealing Height — 485 mm sealing height supports convenient pallet-strapping operation.
• Two Operation Modes — Provides flexibility for different operating requirements.
