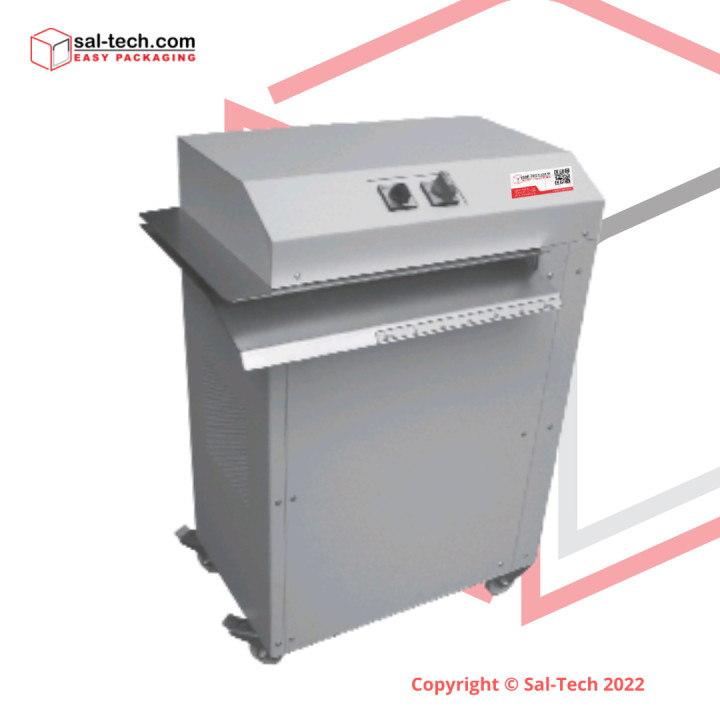

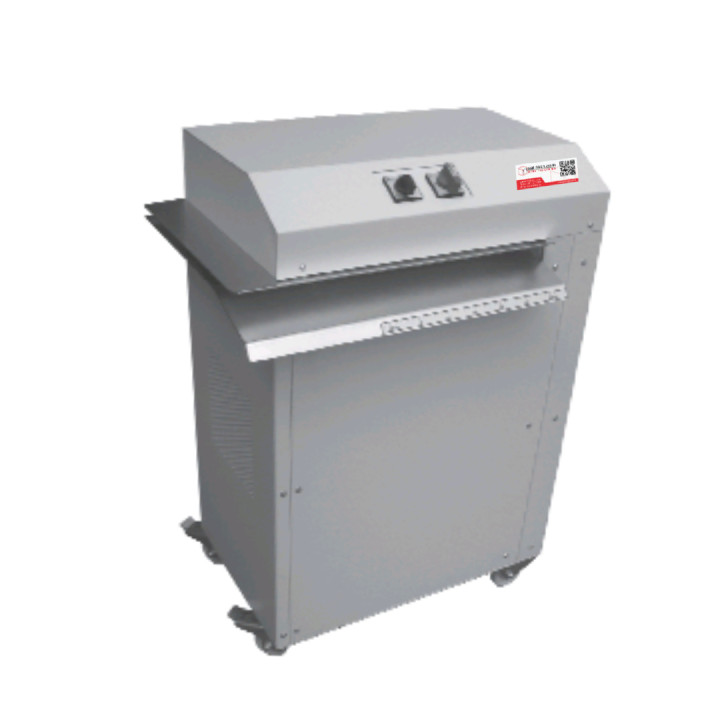

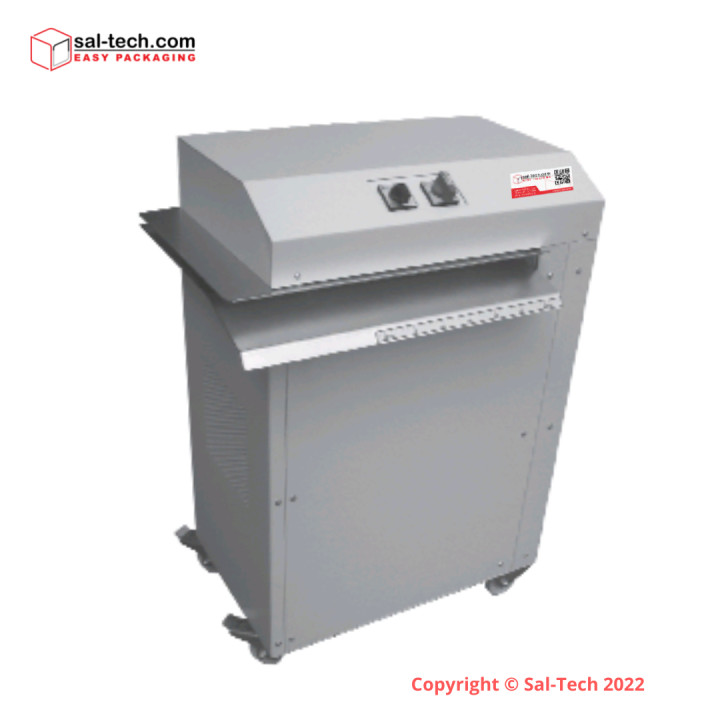

STEP PacMaster S 4x110 mm, 220 V/60 Hz, 3 phase, 4-pole 20 A

Reference 41700010 Items available 0 Condition New

kr41,900.00

Tax excluded

STEP PacMaster S efficiently recycles waste cardboard into high-quality packing materials, boasting a throughput of up to 7 cubic meters per hour and a 2,600-watt motor. Its design prioritizes safety and ease of use, featuring an emergency stop and mobile castors, making it ideal for any warehouse or shipping department.

Out-of-Stock

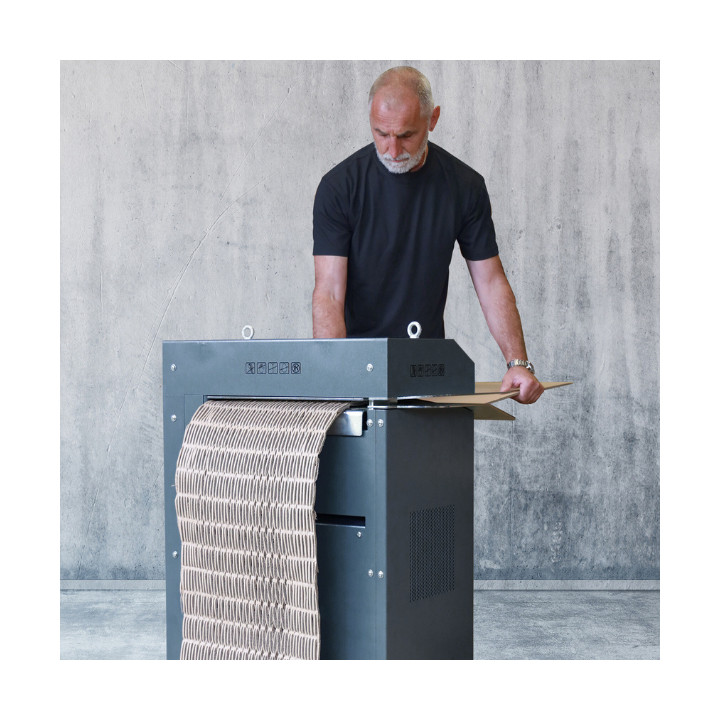

STEP PacMaster S is a game-changing cardboard recycling solution, designed to convert waste into high-quality packaging material with exceptional efficiency. This robust machine features a powerful 2,600-watt motor and achieves a throughput of up to 7 cubic meters per hour, making it ideal for busy warehouses and shipping departments. With advanced safety features like an emergency stop switch and secure castors, the PacMaster S ensures a safe, sustainable, and cost-effective packing process.

Revolutionizing Cardboard Recycling for Efficient Packing Solutions

1. Lockable Main Switch: Includes an emergency stop for safety.

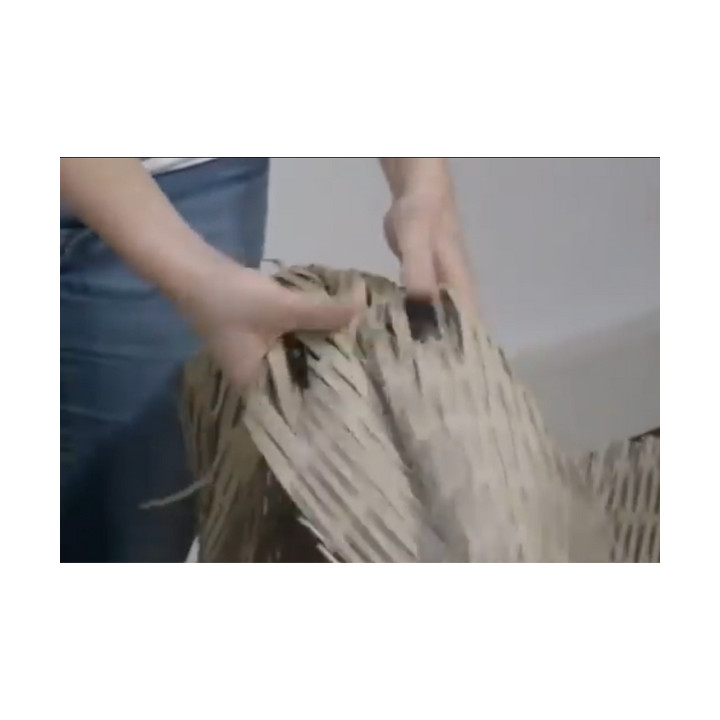

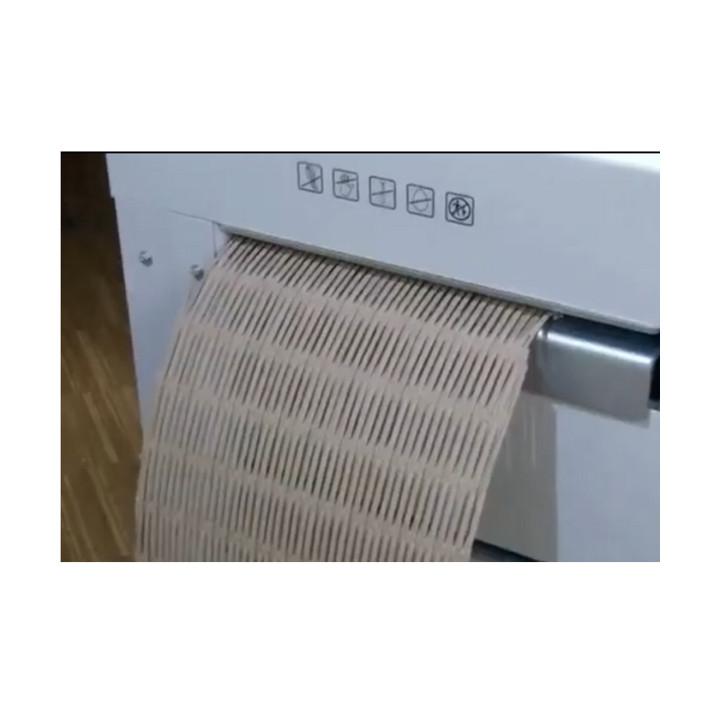

2. Cutting Size Guide: Ensures accurate conversion of cardboard into packaging pads.
3. High Throughput: Capable of processing up to 7 cubic meters of cardboard per hour.
4. Quiet Operation: Has a noise level of 62 dB when idle.
5. Safety Castors with Brakes: Enhances mobility and stability during use.

Specifications	STEP PacMaster S 4x110 mm	STEP PacMaster VS 4x110 mm
Model	220 V/60 Hz, 3 phase, 4-pole 20 A	220-240 V/50-60 Hz, D/F-plug
Weight	approx. 176kg	approx. 205kg
Cutting Width	4 x 110mm	4 x 110mm
Cutting Capacity	2 layers cor. board quality (max. thickness of cor. boards 18mm)	3 layers cor. board quality (max. thickness of cor. boards 18mm)
Inlet guide auxiliary cutter	NA	20mm
Inlet guide, cutting system	15mm	20mm
Working width cutting system	425mm	425mm
Cutting speed	0.18 m/sec.	0.09 - 0.29 m/sec.
Power consumption	3.9 kW	1.9 kW
Power output	2.2 kW	1.1 kW
Intermittent Service	24 min	30 min - 15 min
Supply voltage	400 V/50Hz, 230 V/50Hz, 415 V/50Hz, 220 V/50Hz, 200 V/50Hz, V/60Hz	230 V/50Hz 240 V/50Hz 220 V/50Hz
Pre-fusing	16 A 25 A	16 A 13 A
Width	685 mm	620 mm
Depth	470 mm	500 mm
Height	950 mm	1020 mm
Noise Level	approx. 68.5 dB (A)	approx. 68.5 dB (A)
Item No.	4170010	4170020
