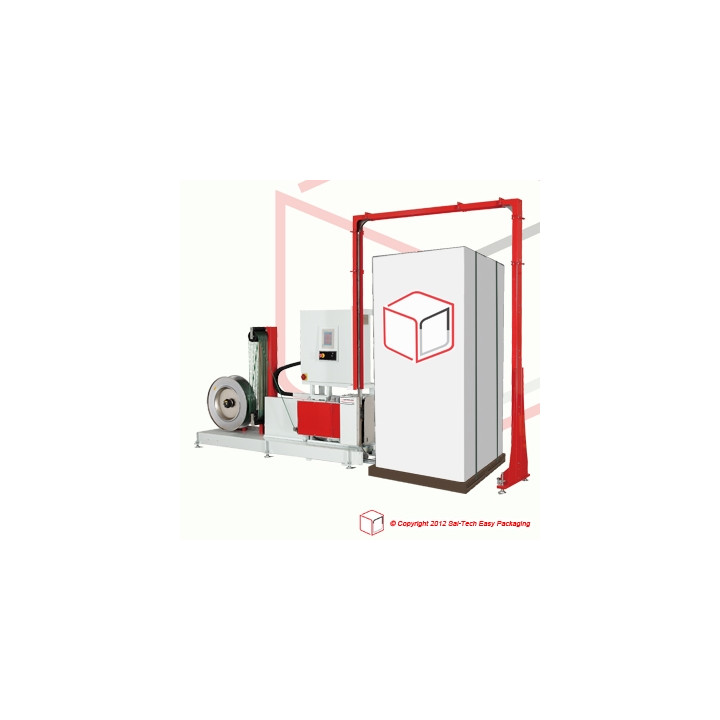

STEP TP703 Pallet Strapping Machine Series

STEP TP-733V (VM, VLM) Pallet Strapping Machine Series POLLUX

Reference 41203120 Items available 0 Condition New

kr159,900.00

Tax excluded

STEP TP-733V (VM, VLM) is a series of strapping equipment that is appropriate for vertical pallet packaging requirements. Designed to enhance strap packing with its innovative features, easy maintenance and simple user interface.

Project machine to be full specified before production to order

Vertical Pallet Strapping Machine STEP TP-733V SERIES

Fully Automatic Vertical Pallet Strapping Machine — V, VM, VLM Models

The STEP TP-733V series is a fully automatic line of vertical pallet strappers using PP and/or PET strap. Across the V, VM, and VLM models, pallets come out neatly sealed with a professional finish — built around performance, efficiency, and innovation in equal measure.

Standout Feature

Friction Weld Sealing Technology delivers a tight, secure seal with no fumes and no odor — cleaner sealing without sacrificing strength.

Key Features

Strapping Head — Tough enough for continuous operation, yet built for easy maintenance.

Touch Panel — Siemens PLC control with a touch panel for straightforward adjustment, troubleshooting, and operation.

Weld Sealing — Friction Weld Sealing Technology gives a tight seal with no fumes and no odor.

Sealing & Cooling Time — Both are adjustable to match different business needs.

Arch — Built for easy arch-size changes, so goods fit the strapping frame precisely.

Index Strapping Head — Moves during strapping to keep the strap positioned as tightly as possible, for higher compression efficiency.

Movable Strap Lance — Adds flexibility to how the strap is threaded and positioned.

Specifications

	TP-733VLM	TP-733VM	TP-733V
Electrical Requirements	220V / 380V / 400V / 415V — 50/60Hz — 3PH
Cycle Time	~11.5 sec/cycle	~8.5 sec/cycle	~8 sec/cycle
Capacity (2 Parallel Straps)	72 pallets/hour	78 pallets/hour	90 pallets/hour
Capacity (2 Pair Straps, Intersected)	30 pallets/hour	31–33 pallets/hour	90 pallets/hour
Strap Width	PET/PP: 9mm*, 12mm, 15.5mm, 19mm
Strap Thickness	PET: 0.5–1.0mm \| PP: 0.7–1.05mm
Tension Range (Standard)	1100N – 3200N (110kg – 320kg)
Tension Range (Option)	200N – 1200N (20kg – 120kg)
Dimensions (W x D x H) Standard arch: 1400W x 2450H mm	4945W x 676D x 2549H mm	4528W x 676D x 2549H mm	3688W x 676D x 2549H mm
Machine Net Weight	445kg	—	—
Min. Package Size (9/12/15.5mm strap)	400W x 662H mm	400W x 562H mm	400W x 300H mm
Min. Package Size (19mm strap)	400W x 712H mm	400W x 612H mm	400W x 350H mm
Maximum Package Size	(Arch W-100) x (Arch H-150) mm	(Arch W-100) x (Arch H-235) mm	(Arch W-100) x (Arch H-350) mm
Index Strapping Head Stroke (Standard)	max. 500mm		—
Index Strapping Head Stroke (Option)	max. 700mm		—
Strap Core Inner Diameter	406mm
Power Consumption	1.35kW		0.9kW
Environment Temperature	0 – 40°C (32 – 104°F)

* 9mm width is limited to 0.6–1.0mm thickness PET strap.
* Strap thickness should be more than 0.7mm when applying PET strap to arch size 3250(H)mm or 2000mm(W) x 2850(H)mm.
* Strap width is limited to 15.5mm/19mm with thickness above 0.9mm when applying PP strap to arch size 3250(H)mm.
* Maximum tension and strapping speed depend on strap type, width, thickness, and quality.

Air Consumption of Top Press (Option)

Arch Height	200kg (80mm)	500kg (125mm)
1650H	34.4 L/cycle	84.8 L/cycle
2050H	45.8 L/cycle	113.1 L/cycle
2450H	57.3 L/cycle	141.4 L/cycle
2850H	68.8 L/cycle	169.7 L/cycle

Options

— Floating head
— Top press
— Failure indicator
— Operation desk (standing)
— Strap dispenser towards transport track
— Tension of 200N – 1200N (20kg – 120kg)

Available In Different Models

STEP TP-733V — closed strap track, fixed strapping head
STEP TP-733VM — closed strap track, index strapping head
STEP TP-733VLM — with movable lance, index strapping head
