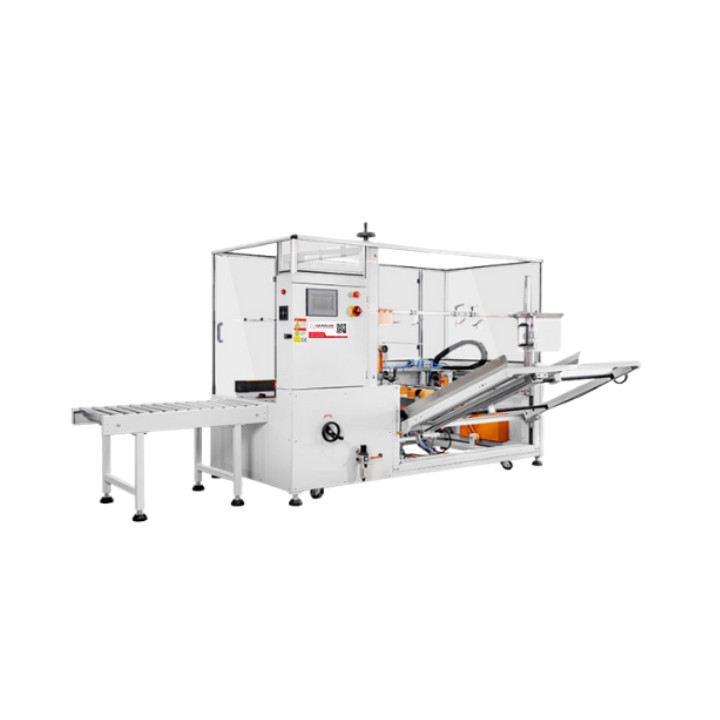

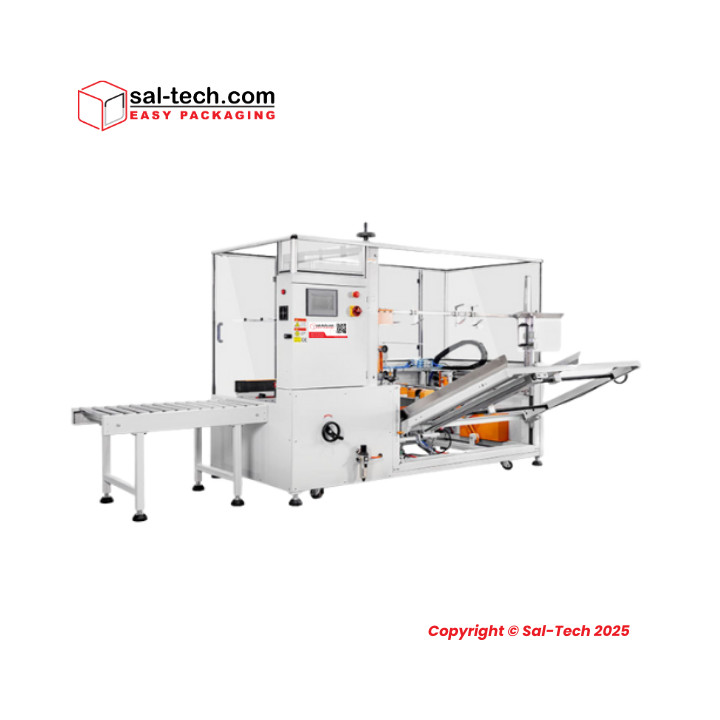

STEP K50 Carton Erector

Reference 42121050 Items available 0 Condition New

kr89,900.00

Tax excluded

Automatic carton erector with high-speed forming, precise sealing, and compact footprint for streamlined packaging lines.

#ON STOCK#

The STEP K50 Carton Erector automates the box forming process with efficiency and precision. Designed for medium to high-volume operations, this machine boosts productivity by reducing manual labor and ensuring consistent box quality. Featuring adjustable settings, easy maintenance, and high reliability, the K50 is the ideal choice for businesses looking to scale their packaging operations.

Features
1. High-Speed Box Forming: Automates the erecting process with consistent speed and precision.
2. Adjustable Carton Size Compatibility: Handles various box dimensions for flexible use.
3. Low Power & Air Consumption: Operates efficiently while minimizing utility costs.
4. Compact Machine Design: Saves floor space and integrates easily into production lines.
5. Simple Operation & Maintenance: User-friendly controls and easy access for maintenance tasks.

Specifications
Model	STEP K50
Power Supply	110/220V, 50/60Hz, 1Phase
Power	240W
Air Pressure	6kg/cm²
Air Consumption	450NL/min
Applicable Carton Size	L200–450 × W150–400 × H100–350mm
Table Height	620–720mm
Machine Size (LxWxH)	2000 × 1900 × 1450mm
Machine Weight	400kg
Item Number	42121050
