STEP TP-602MV Semi-Auto Pallet Strapping Machine 12mm Strap
Previous Next

#ON STOCK#

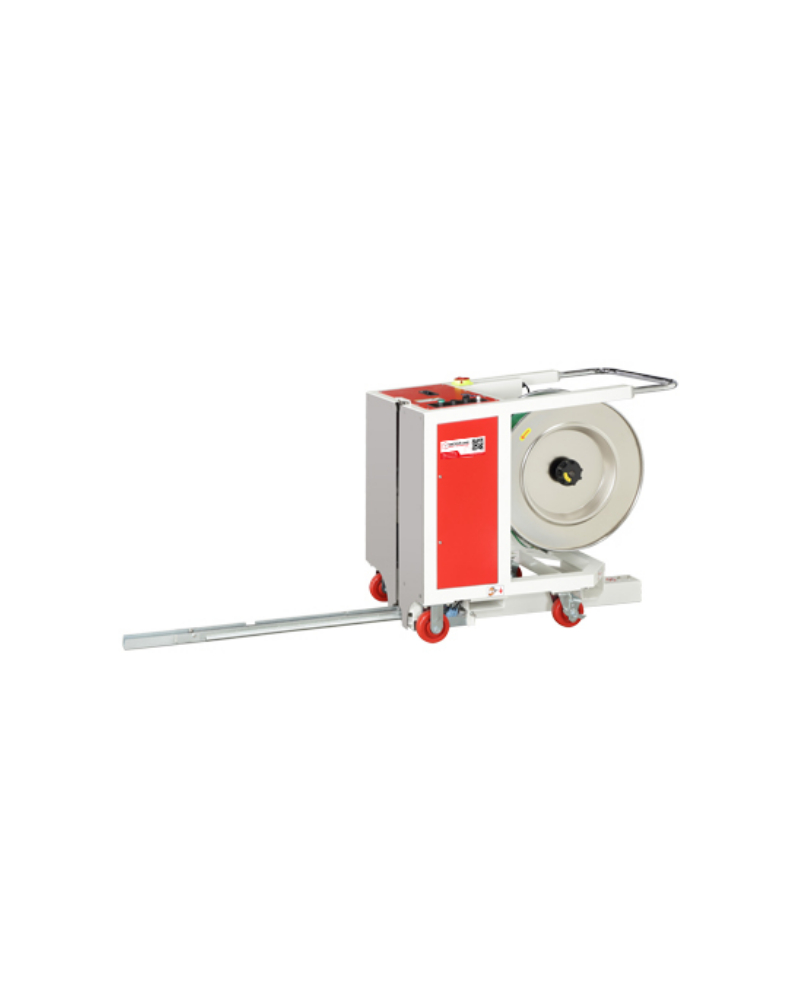

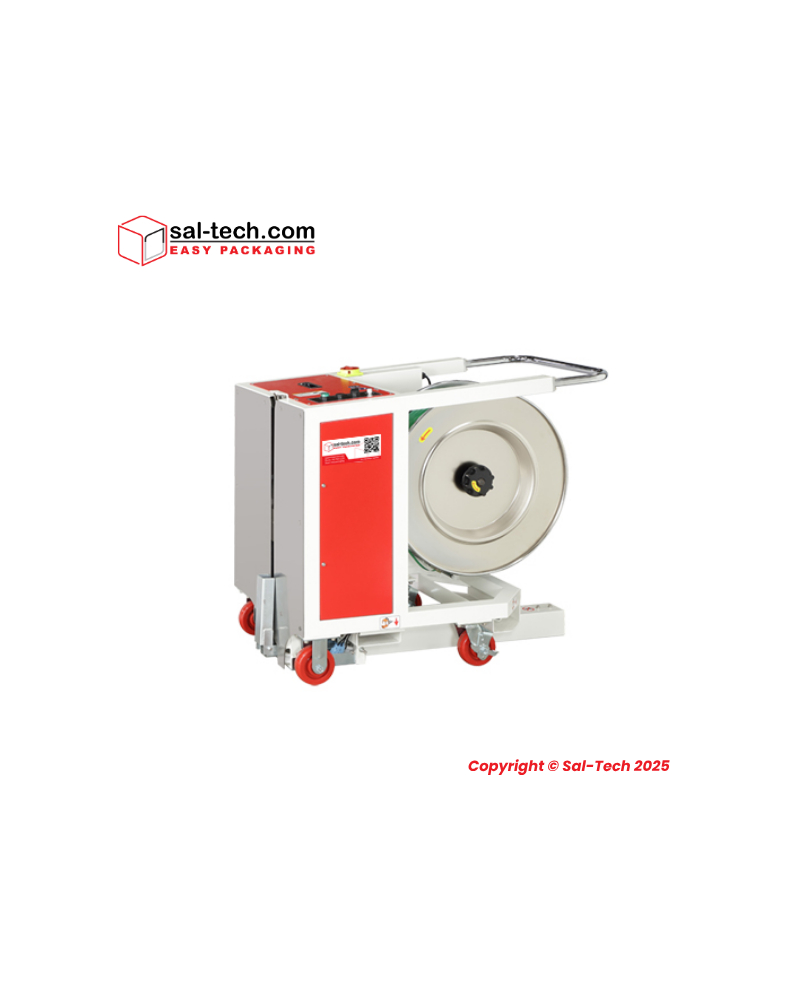

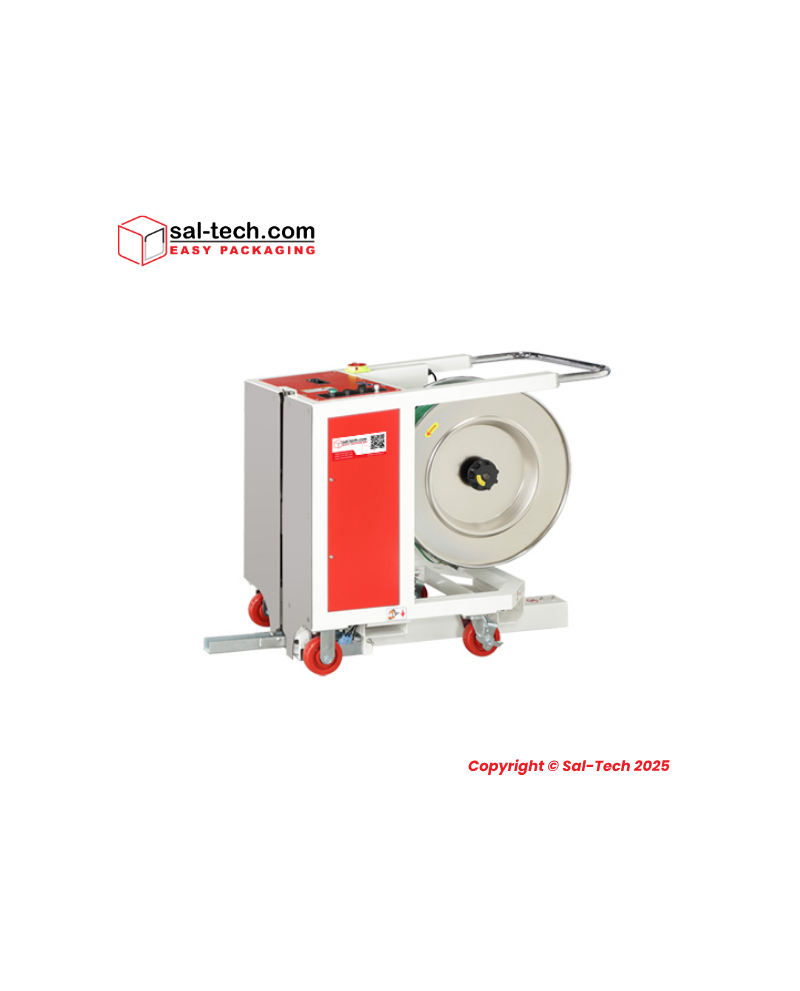

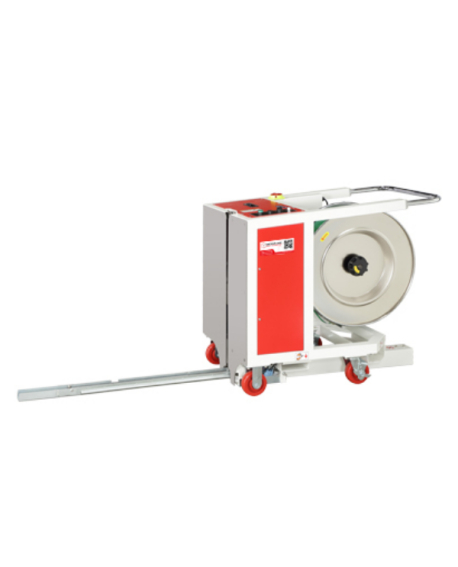

STEP TP-602MV Semi-Auto Pallet Strapping Machine 12mm Strap

41001012

New

1 Item

Portable semi-automatic pallet strapping machine for vertical applications with 12mm strap width. Features retractable sword, friction weld sealing, and user-friendly operation.

More details

49,950.00 DKK

The STEP TP-602MV Semi-Auto Pallet Strapping Machine is a reliable solution for low to moderate pallet strapping needs. Designed for vertical strapping applications, it supports both PP and PET straps with a strap width of 12 mm. Its retractable sword easily feeds strap through pallet voids without moving the load, saving time and space. With high tension capabilities up to 150 kg, compact structure, and robust construction, the TP-602MV ensures operational efficiency while being easy to maneuver and operate.
Features:

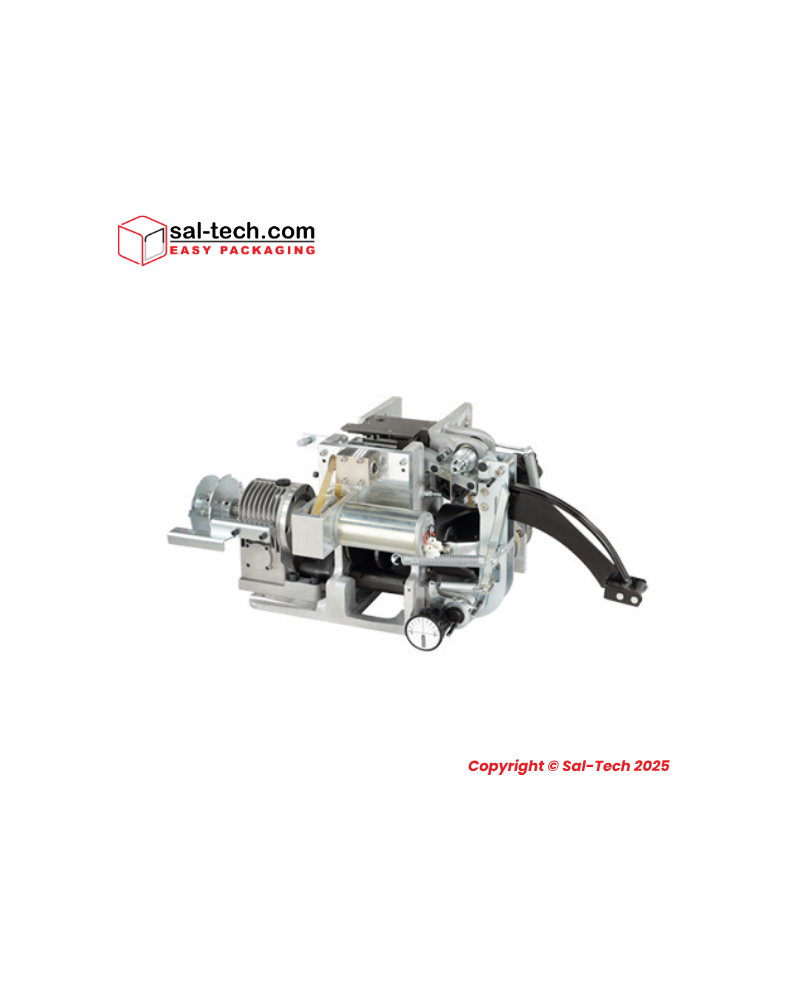

1.Robust and lubrication-free strapping head
2.Retractable sword for vertical strapping
3.Friction weld sealing technology
4.User-friendly control panel
5.High tension (up to 150 kg)
6.Low sealing height for convenience
7.Adjustable weld-cooling time
8.Error message indicator
9.Enhanced mobility with compact design
10.Manual feeding
11.Two operation modes
Specifications
Specifications
Details
Sealing method
Friction
Strap width
12 mm
Strap thickness
PP: 0.65 - 0.9 mm (0.025" - 0.038")
PET: 0.55 - 0.75 mm (0.022" - 0.029")
Strap reel diameter
Standard: 406 mm (16")
Options: 200 mm (8"), 230 mm (9"), 280 mm (11")
Machine dimensions
Width: 571 mm (22.48")
Depth: 2096 mm (82.52")
Electrical connection
230V 50Hz 1 Phase
Options: AC 110V/220V/230V/240V (50/60Hz), 1 Phase
Weight
162 kg (357 lbs)
Noise emission
85 dB (A)
Ambient temperature
5°C to 40°C (41°F to 104°F)
Item No.
41001012
Application:

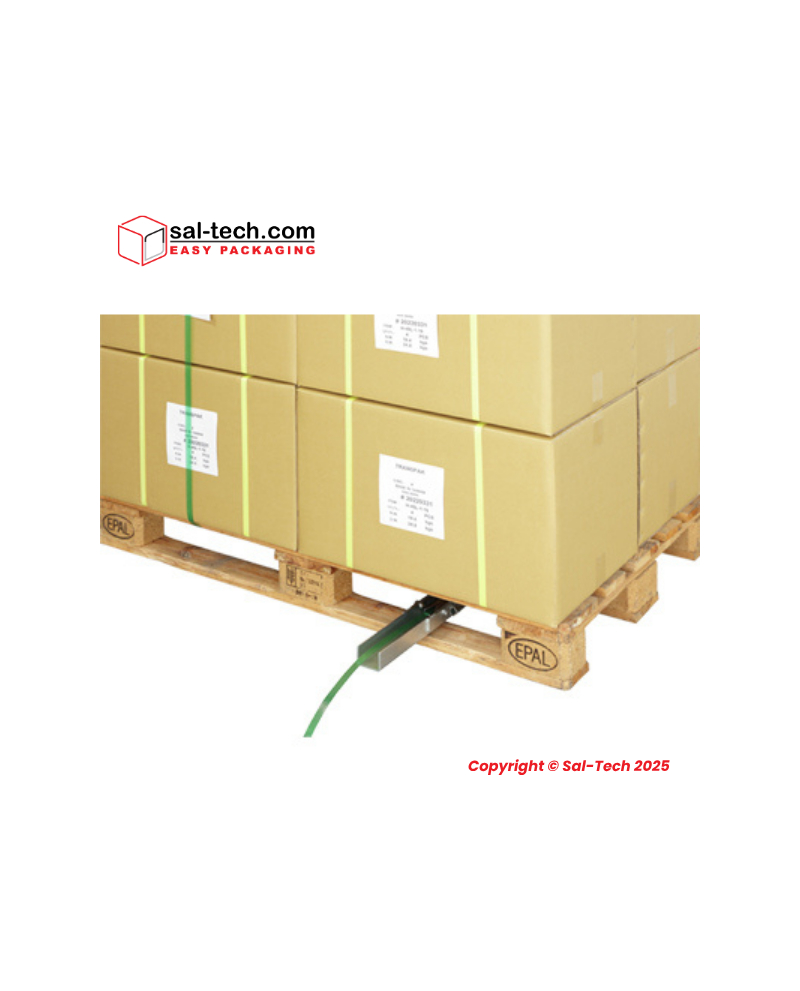

Ideal for warehouses, logistics centers, and packaging areas, the TP-602MV excels in vertical pallet strapping for carton boxes and bulky loads. Its retractable sword mechanism makes it suitable for strapping stacked goods on pallets without repositioning the load.
