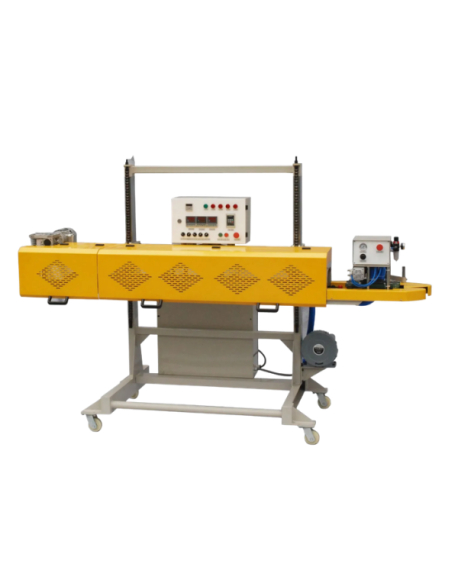

STEP FBH-32D Automatic Heat Sealer for Heavy-Duty Plastic Bag

42854020

New

FBH series automatic heat sealer for heavy-duty plastic bag can continuously seal thick PE or PP plastic bags and laminated bags of paper/PE, AL/PE film with high performance and speed. It is widely used in the fields of chemical material, medical material, rice, foodstuff, feeds etc.

More details

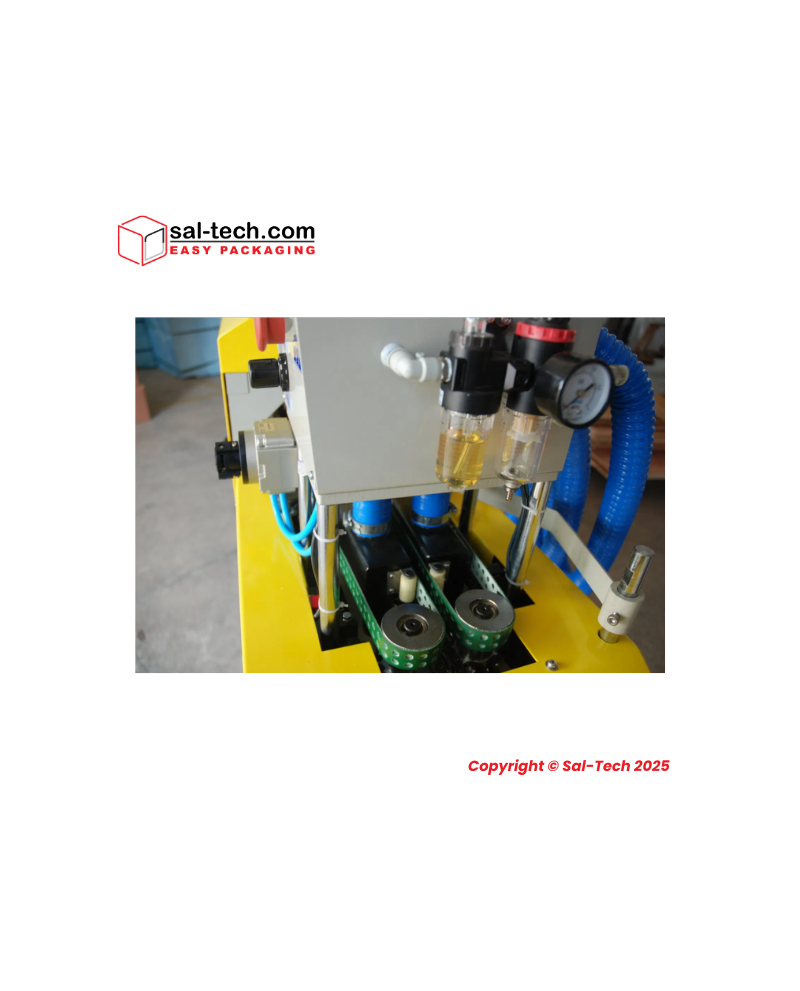

This series machines adopt Poly Tetra Fluoro Ethylen (TEFLON) sealing belt, which could make the bags quickly cool down after heating, with surface smooth and plain, so as to guarantee its sealing quality.

Specification Details

Model

STEP FBH-32D Automatic Heat Sealer for Heavy-Duty Plastic Bag

Voltage (V/Hz)

(3PH) AC380/50

Gross Power (kW)

4.5

Deduster Power (kW)

0.75

Sealing Speed (m/min)

0 ~ 12

Height from Sealing Center to the Floor (mm)

800 ~ 1400

Air  Source Pressure (Mpa)

0.6

Heating Power (kW)

0.5 x 6

Temperature Range

0 ~ 300

Sealing Width

8 ~ 10 (customizable)

Height Space Request of Bag Top (mm)

180

Dimension ( L x W x H ) (mm)

2830 x 950 x 1800

Net Weight

320

Item Number

42854020
