STEP Gravity Roller Conveyor for Unloading


47302010

New

Robust Extendible Gravity Roller Conveyor for Unloading Container can be use on all types of vehicles of all sizes. Gravity feed telescopic roller conveyor is a simple arrangement of several sections of gravity roller tracks. It is the most economic helpful solution for loading and unloading goods in warehouses.

More details

35,875.00 DKK

STEP Gravity Roller Conveyor for Unloading – this gravity conveyor is a development of the highly successful telescopic design mounted on a large robust box section chassis with an adjustable platform which suits most tailboard heights, fully welded steel construction giving stability & strength.

Intended for off-loading only without the need of a loading dock, the telescopic can be used in conjunction with other conveyor from our extensive range to reach all areas of the warehouse

Features:

• Low inertia 50mm diameter PVC rollers set at 75mm centers allows transportation small & large parcels
• Each deck of track is independently height adjustable by means of a screw jack allowing correct gravity fall
• Smooth transfer between decks is achieved by a series of 38mm diameter steel rollers within a transfer slider section
• Flexible Gravity Double PVC Roller Conveyor Adjustable Height 900 – 1450mm

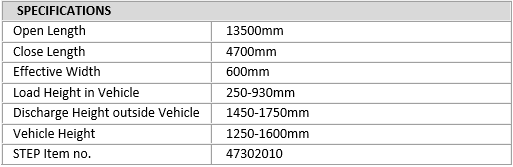

Specifications:
Open Length 13500mm
Close Length 4700mm
Effective Width 600mm
Load Height in Vehicle 250-930mm
Discharge Height outside Vehicle 1450-1750mm
Vehicle Height 1250-1600mm
STEP Item no. 47302010


Options:

Flex roller conveyor 1,5 to 6,0 meters
