STEP GK35-6A

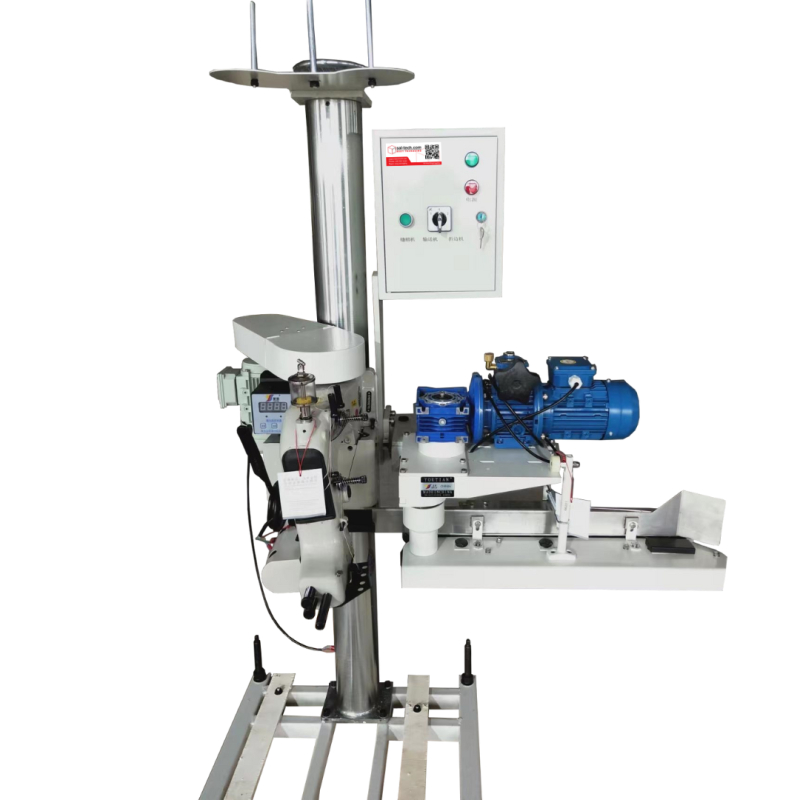

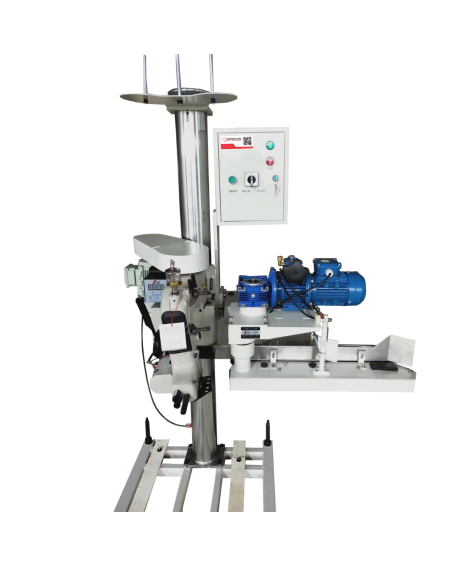

STEP GK35-6A w. Column & Autofolding Aggregate

42818050

New

Automatic single needle machine for plain closing of all kinds of filled bags. The machine will start automatically by photo switch actuated by the bag being fed into the machine.

In the same way, the machine stops after the bag passes through, and at the same time the thread/crepe-tape is cut automatically by built-in air cylinder operated guillotine type cutter

More details

38,575.00 DKK

Application:

  • With folding device and column for adjustable height.

  • Stainless steel version for moist and semi wash down areas.

  • Not suited for direct wash down, but splash or similar will be acceptable.

  • Thread stand 6kg thread coils

  • Capacity 6 – 12 bags per minute or higher depending of infeed conveyor, sack type and sack infeed method and automation

  • Adjustable speed of motors for auto folding and sewing machine

Features:

  1. Stainless Steel Column

  2. Stainless Steel product interface parts

  3. Special protection of steel parts not able to be made of stainless steel in general

  4. Sewing head STEP SK35-6A is not stainless steel, but optimized with special protection of steel parts not able to be made of stainless steel

  5. Stainless steel covers for CE norm certification

  6. IP 21/23 or above protection of electrical components

Diagram, schematic Description automatically generated

SPECIFICATIONS
Model STEP GK35-6A w. Column & Auto folding Aggregate –Mild Steel Version STEP GK35-6A w. Column & Auto folding Aggregate – Stainless Steel Semi Wash Down Version
Product Interface Parts Mild Steel Stainless Steel
Seam Package Altitude 400-900mm 400-900mm
Seam Package Weight 10-50kg 10-50kg
Necessary Electrical Machinery 740W 740W
Outlook Size 1500 x 1500 x 750 (mm) 1500 x 1500 x 750 (mm)
Gross Weight 150kg 150kg
