STEP GPL-5560C Automatic Side Sealing Machine


45205560

New

This Automatic Side Sealing Machine is equipped with a Shrink-wrapping machine, the product is fed on to the Side Sealing machine then goes on to the connected Shrink-wrapping tunnel machine for wrapping.

More details

This Automatic Side Sealing Machine is equipped with a Shrink-wrapping machine, the product is fed on to the Side Sealing machine then goes on to the connected Shrink-wrapping tunnel machine for wrapping. Sealing is superior since cutting knife length is 600mm ensuring efficient cut, side seal system is used for infinite length of the products, Blower is used on shrink film to ensure shrink wrapping is superb and fiber roller is used on the wrapper to keep the products secured and durable.

Features:

Can seal products with infinite length due to its side sealing design

Suited to seal thin and small products, the addition of vertical and horizontal photodetectors ensures the option for switch over

Alarm and Safety devices with PLC Control System are being used

Control Timer and the Photodetector ensures the length adjustment of the shrink film

The sealing height can be adjusted based on the product height

The machine operates well due to imported parts being used

No stoppage in operation needed to change wrappers, easy to use and maintain

For products with different sizes and shapes

Suitable for Hardware, Gifts, Food and Daily necessities among others

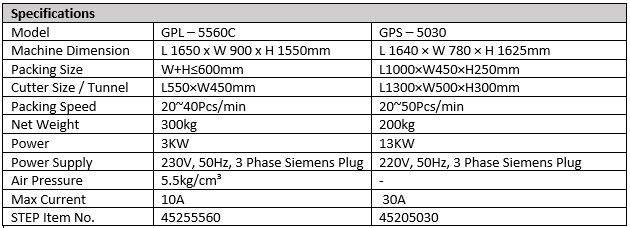

Specifications

Model

STEP GPL – 5560C

STEP GPS – 5030

Machine Dimension

L 1650 x W 900 x H 1550mm

L 1640 × W 780 × H 1625mm

Packing Size

W+H≤600mm

L1000×W450×H250mm

Cutter Size / Tunnel

L550×W450mm

L1300×W500×H300mm

Packing Speed

20~40Pcs/min

20~50Pcs/min

Net Weight

300kg

200kg

Power

3KW

13KW

Power Supply

220V/380V 50/ 60Hz , 3 Phase

220V/380V 50/ 60Hz , 3 Phase

Air Pressure

5.5kg/cm³

-

Max Current

10A

 30A

STEP Item No.

45255560

45205030
