STEP Vacuum Lift ESL120
Previous Next

STEP Vacuum Lift ESL120

47651010

New

This Vacuum Tube Lifter is designed for purposes that will support you to create ergonomic and work stations that meet health and safety standards. These enable ill health-related stoppages to be reduced or avoided. Work free from fatigue, an increase in productivity and a rise in morale can be achieved.

More details

STEP Vacuum Lift ESL120 is a new type of vacuum handling product. It uses a large-flow vacuum blower as the power source. The device uses a spring-like lifting tube like a nose as the main lifting device for carton, bag, wood and others. It is also equipped with a Jib Crane to make it light weight and fast lifting. Suitable to be used on Plastic Bag, Paper bag, Fiber Woven Bag, Half- filled and Full – Filled bags. Various ESL models are available to fit for your requirements.

Features:

•  Customized Design for Shaped Cartons and various material to be lifted
•  Various Suction Pads are available for various types of materials to lifted
•  Brake-like quick release valve offers quick separation with ease
•  Various controller options are based on customer preference and request
•  Suitable for Multiple Applications from truck loading/unloading, pack-in, stacking and unloading from assembly line.

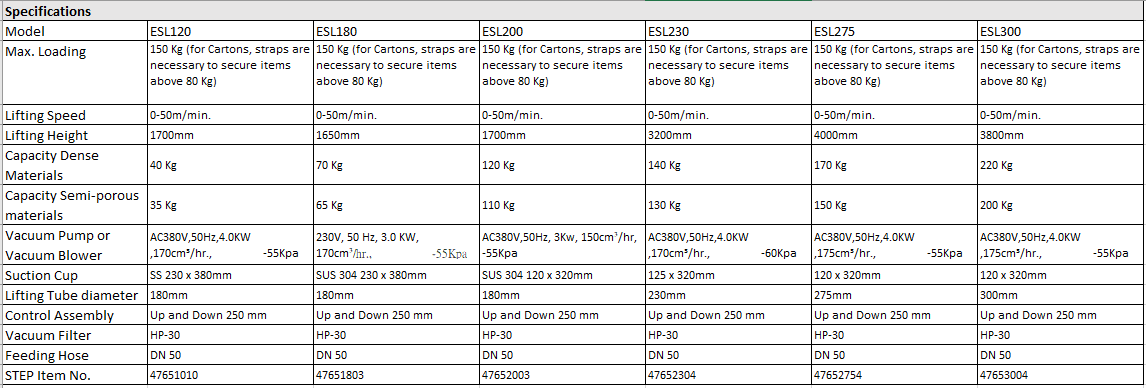

Specifications:
Model ESL120 ESL180 ESL200 ESL230 ESL275 ESL300
Max. Loading 150 Kg (for Cartons, straps are necessary to secure items above 80 Kg) 150 Kg (for Cartons, straps are necessary to secure items above 80 Kg) 150 Kg (for Cartons, straps are necessary to secure items above 80 Kg) 150 Kg (for Cartons, straps are necessary to secure items above 80 Kg) 150 Kg (for Cartons, straps are necessary to secure items above 80 Kg) 150 Kg (for Cartons, straps are necessary to secure items above 80 Kg)
Lifting Speed 0-50m/min 0-50m/min 0-50m/min 0-50m/min 0-50m/min 0-50m/min
Lifting Height 1700mm 1650mm 1700mm 3200mm 4000mm 3800mm
Capacity Dense Materials 40Kg 70Kg 120Kg 140Kg 170Kg 220Kg
Capacity Semi-porous materials 35 Kg 65 Kg 110 Kg 130Kg 150Kg 200Kg
Vacuum Pump or Vacuum Blower AC380V, 50Hz, 4.0Kw, 170cm³/Hr, -55Kpa 280V, 50Hz, 3.0KW, 170cm³/Hr, -55Kpa AC380V, 50Hz, 3Kw, 150cm³/Hr, -55Kpa AC380V, 50Hz, 4.0Kw, 170cm³/Hr, -60Kpa AC380V, 50Hz, 4.0Kw, 175cm³/Hr, -55Kpa AC380V, 50Hz, 4.0Kw, 175cm³/Hr, -55Kpa
Suction Cup SS 230 x 380mm SUS 304 230x380mm SUS 304 120 x 320mm 125x320mm 120x320mm 120x320mm
Lifting Tube Diameter 180mm 180mm 180mm 230mm 275mm 300mm
Control Assembly Up and Down 250mm Up and Down 250mm Up and Down 250mm Up and Down 250mm Up and Down 250mm Up and Down 250mm
Vacuum Filter HP-30 HP-30 HP-30 HP-30 HP-30 HP-30
Feeding Hose DN 50 DN 50 DN 50 DN 50 DN 50 DN 50
STEP Item No. 47651010 47651803 47652003 47652304 47652754 47653004
