Newly Added STEP FP-87.250 Flowpack Machine Series

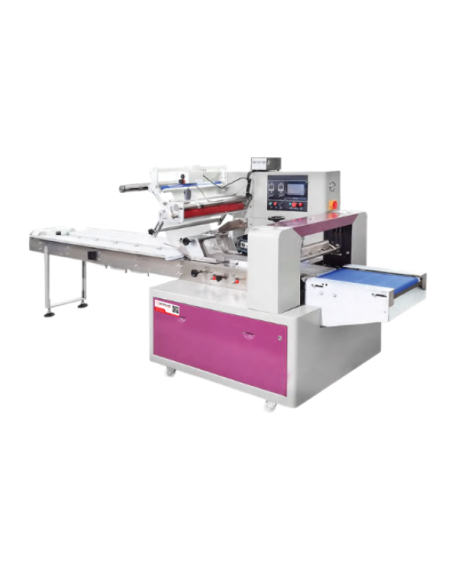

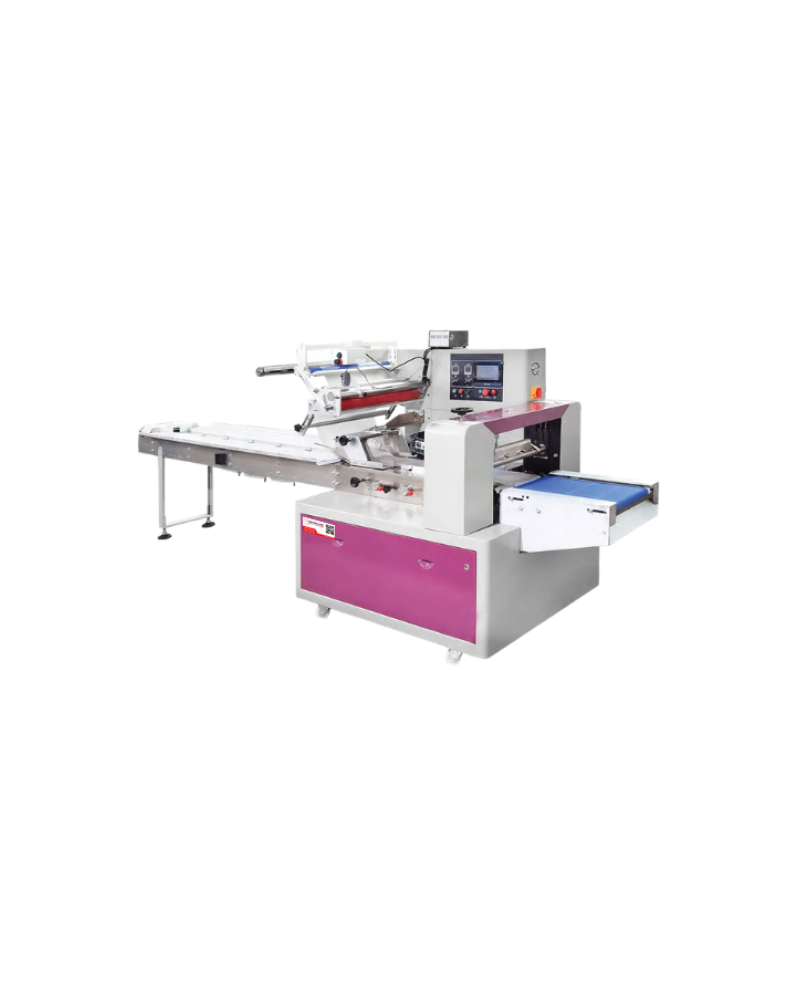

STEP FP-87.250 Flowpack Machine Series

New

The STEP FP-87 Flowpack Machine Series is an upward-film horizontal packing range designed for efficient packaging of food products, pharmaceutical products, consumer goods, hardware components, cartons and other regular-shaped products. Multiple configurations are available for different film widths, product sizes and packaging requirements.

More details

The STEP FP-87 Flowpack Machine Series provides flexible horizontal packaging solutions for a wide range of regular-shaped products.
The featured STEP FP-87.250 configuration uses a three-servo control system that supports stable film feeding, consistent bag formation and easier adjustment for different products and bag sizes.
Key functions include touchscreen operation, adjustable bag length, independent PID temperature control, precise sealing and cutting, automatic fault diagnosis and a position-stop function designed to help reduce unnecessary film consumption.
The series is available in 250, 320, 400, 450, 600, 700, 800 and 900 configurations for different film widths and packaging requirements.
Features
- Three-Servo Control Configuration
- Easy Touchscreen Operation
- Flexible Bag-Length Adjustment
- Packing Speed up to 230 Bags per Minute
- Independent PID Temperature Control
- Precise Sealing and Cutting
- Automatic Fault Diagnosis
- Position-Stop Function to Reduce Film Waste
Item Number
STEP Model
Max. Film Width
Film Width Range
Bag Width
Bag Length
Max. Product Height
Packing Speed
43870250
STEP FP-87.250
250 mm
80–250 mm
25–110 mm
90–330 mm
50 mm
40–230 bags/min
43870320
STEP FP-87.320
350 mm
140–350 mm
55–160 mm
90–330 mm
50 mm
40–230 bags/min
43870400
STEP FP-87.400
400 mm
250–400 mm
110–185 mm
90–330 mm
50 mm
30–180 bags/min
43870450
STEP FP-87.450
450 mm
250–450 mm
Confirm from supplier
Confirm from supplier
Confirm from supplier
30–180 bags/min
43870600
STEP FP-87.600
600 mm
320–600 mm
145–285 mm
120–450 mm
80 mm
30–150 bags/min
43870700
STEP FP-87.700
700 mm
400–700 mm
185–335 mm
150–470 mm
90 mm
30–150 bags/min
43870800
STEP FP-87.800
800 mm
420–800 mm
195–385 mm
180–500 mm
110 mm
30–150 bags/min
43870900
STEP FP-87.900
900 mm
600–900 mm
285–435 mm
180–500 mm
110 mm
30–150 bags/min
