STEP GW Series


43803100

New

STEP GW Series – are Horizontal Coil Wrapping Machines that are designed to be used in exterior wrapping of coiled tubing products. Suitable for Metallurgical Industries and for coils and tubing for Industrial uses. We offer different variations depending on coil specifications and project requirements.

More details

STEP GW200-N Horizontal Coil Wrapping Machine this is one of the variations from the STEP GW Series, this machine is specialized for horizontal wrapping of coiled objects such as hose coils, pipe coils, corrugated coils, cable coils, steel wires, etc. The speed of the ring and roller is adjustable and packing tension can be adjusted to suit the kind of product and wrapping material requirements. The wrapped package is well-protected, sealed and looks tidier, it can greatly improve work efficiency and reduce labor cost.

Features:

• Various components of high-quality brands are used in this machine
• The overlap of packing tape can be adjusted by converter
• Press roller and side rollers adopted to prevent the project from shaking in packing
• Supporting rollers are wrapped by polyurethane to protect the surface of the objects
• Different packing material can be used
• Indicator alarms automatically when trouble occurs
• Friction between wheel and ring is adjustable
• Soft start and soft stop ensure safe operation
• Packing position reset function
• Simply structure, easy for operation and maintenance

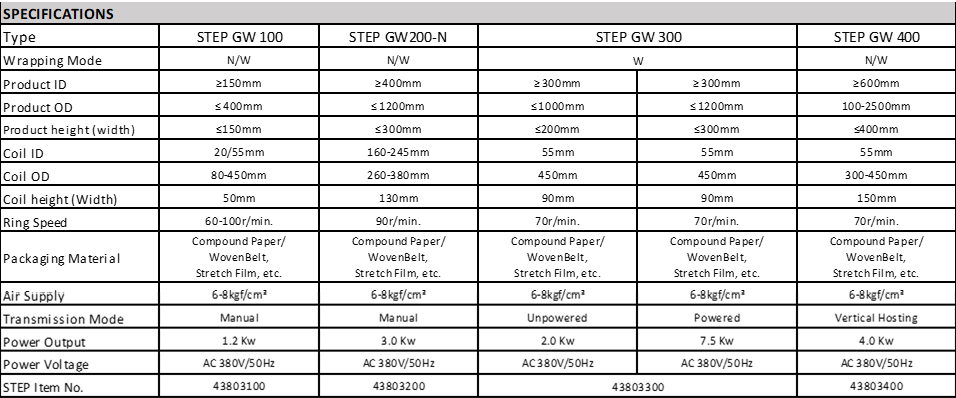

Specifications:
Type STEP GW 100 STEP GW200-N STEP GW 300 STEP GW 400
Wrapping Mode N/W N/W W N/W
Product ID ≥150mm ≥400mm ≥300mm ≥300mm ≥600mm
Product OD ≤400mm ≤1200mm ≤1000mm ≤1200mm 100-2500mm
Product height (width) ≤150mm ≤300mm ≤200mm ≤300mm ≤400mm
Coil ID 20/55mm 160-245mm 55mm 55mm 55mm
Coil OD 80-450mm 260-380mm 450mm 450mm 300-450mm
Coil height (width) 50mm 130mm 90mm 90mm 150mm
Ring Speed 60-100r/min 90r/min 70r/min 70r/min 70r/min
Packaging Material Compound Paper/ WovenBelt, Stretch Film, etc. Compound Paper/ WovenBelt, Stretch Film, etc. Compound Paper/ WovenBelt, Stretch Film, etc. Compound Paper/ WovenBelt, Stretch Film, etc. Compound Paper/ WovenBelt, Stretch Film, etc.
Air Supply 6-8kgf/cm³ 6-8kgf/cm³ 6-8kgf/cm³ 6-8kgf/cm³ 6-8kgf/cm³
Transmission Mode Manual Manual Unpowered Powered Vertical Hosting
Power Output 1.2Kw 3.0Kw 2.0Kw 7.5Kw 4.0 Kw
Power Voltage AC 380V/50Hz AC 380V/50Hz AC 380V/50Hz AC 380V/50Hz AC 380V/50Hz
STEP Item No. 43803100 43803200 43803300 43803400
