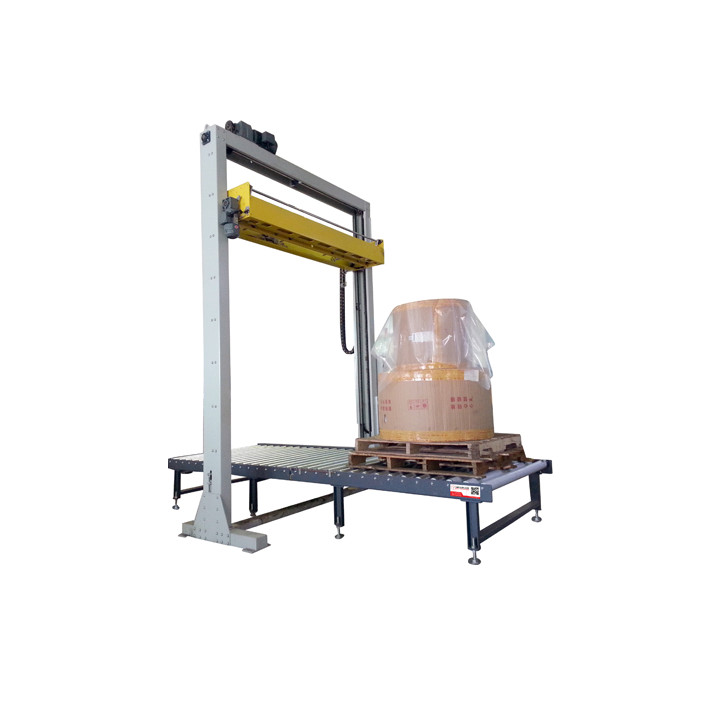

STEP WRAP 4100 Top Film Dispenser Automatisk

Reference 43084100 Items available 0 Tilstand Ny

0,00 kr

Ekskl. moms

STEP WRAP 4100 Top FIlms dispenser kan sommebygges med STEP Wrap 4000 Fuld Automatisk Palleomvikler for vikler af paller enten regntæt eller støvtæt.

Ikke på lager

Del

Product advantage

• In-line use, automatic cover the top of loads.
• Can be integrated with STEP Wrap 4000 Pallet Wrapper Fully Automatic.

Features:

• This is conveyorized wrapper for automated unmanned packing lines.
• Machine automatically detects loads and load height, and starts dispensing process.
• Automatically cut top sheet by motor driven knife.
• Top Sheet changing location for easy sheet roll change.
• Top sheet dispensing speed and conveyor speed variable.
• Top sheet off alarm.
• This machine could be integrated with STEP Wrap 4000 Pallet Wrapper Fully Automatic.

Options:

• Load size and height could be custom made to specific applications.
• Safety fencing for better protection of operators
• Under conveyor.
• Top sheet lifting crane for loading of sheet roll.

Specifications:
Fit for Pallet size	L1220W1016H2400mm
Conveyor line height	750±30mm
Top dispensing unit lifting speed	3m/min
Top Sheet Pulling Speed	12m/min
Top Sheet Size	Width 1700mm max, Length variable
Control	PLC
Working Method	Fully automatic
Cut Method	Knife cutting (rodless cylinder)
Air Pressure	0.4-0.7Mpa
Power	3PH 380V AC, 50 Hz
Rodless Cylinder	Only works with conveyor line
