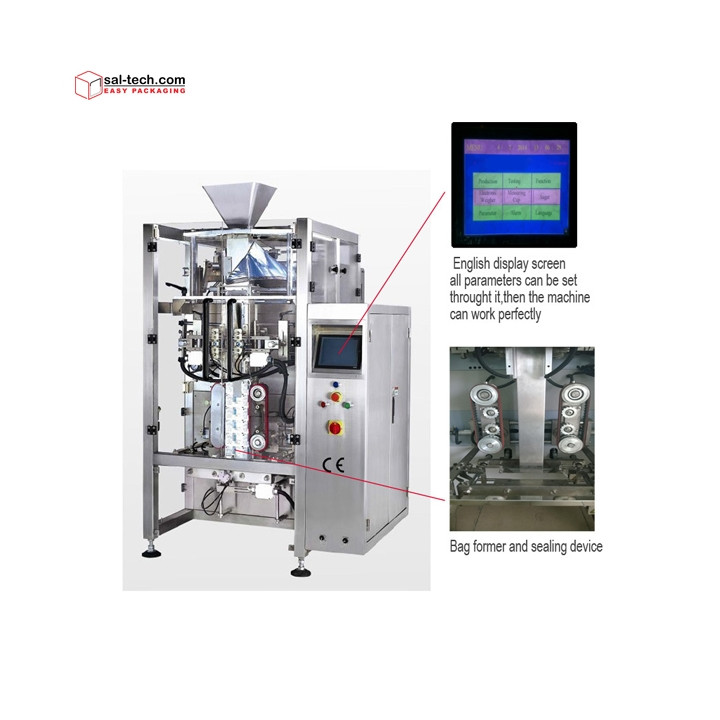

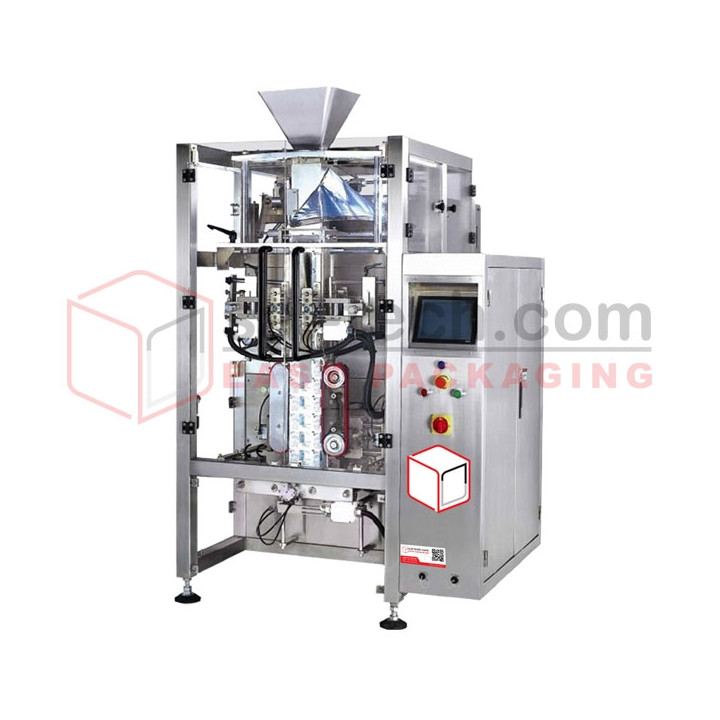

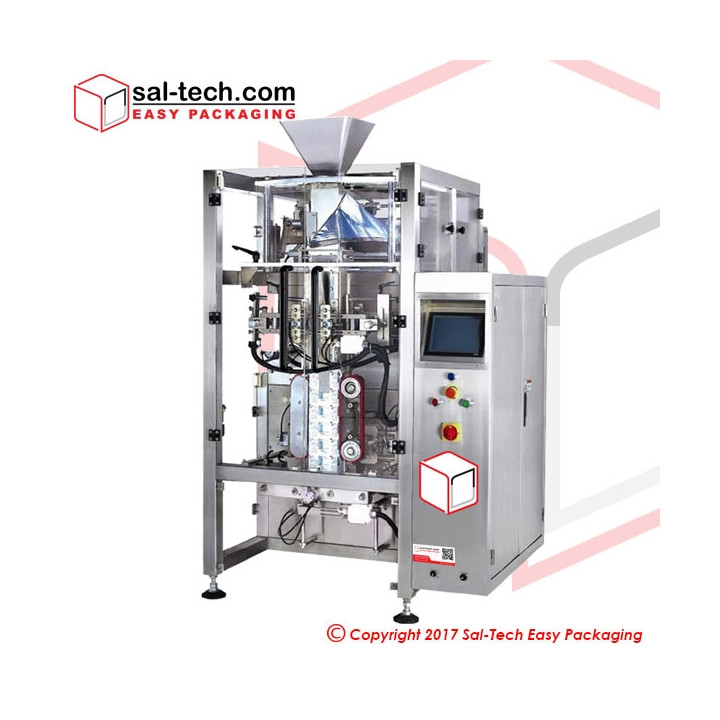

STEP VFFS-620T Quad Sealed Pouch Packaging Machine - Fully Automatic

STEP VFFS-620T quad sealed pouch packaging machine is a fully automatic suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy. It is use to pack such as potato and banana chips, crispy rice, prawn cracker, peanut, biscuit, sweets, nuts, roasted seeds, plastic parts accessories, sugar, salt, frozen food, vegetable etc.

Specifications:

Model: STEP VFFS-620T
Stainless steel 304
Photocell for tracking mark: 1 set
Bag format: 1 set (free)
Date printer: 1 set
Packing film material: complex film only
Bag shape: Gusset Bag
PLC+color touch screen
Double belt for pulling film
Film width: Max. 620mm
Middle width of Front Bag: 90-160mm
Middle width of By Side Bag: 50-100mm
Ironing width: 5-10mm
Bag length: 100-400mm
Packing speed: 10-55bag/min (Max.)
Packing film thickness: 0.04-0.08mm
Power supply: 220V, 60Hz, 5.5 Kw
Net Weight: 720 kgs
Machine Size: (L)2100mm x (W)1210mm x (H)1950mm
