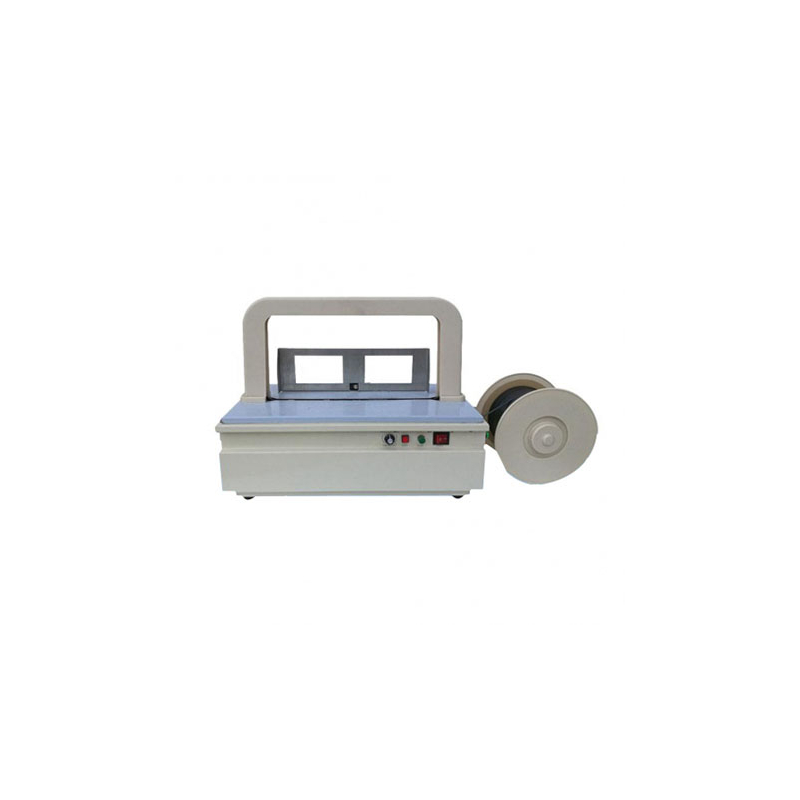

STEP ZD-08 Table Type Mini Automatic Strapping Machine


41081010

New

STEP ZD-08 Table Type Mini Automatic Strapping Machine

More details

21,500.00 DKK


  1.      STEP ZD-08 desk top automatic strapping machine has

two built-in motor, while the belt feeding, tightening has

clearly division. Double motors make this machine works

with strong strapping force and have long service life.

  1.      The machine has three types operation:

manual switch, touch switch, and foot switch.

Customer can change the way of operation easily,

according to different packaging type.

  1.      STEP ZD-08 is equipped with high-power turbo cooling fan,

which can provide the perfect heat dissipation to the strapping

machine circuit board - it can ensure 24 hours continuous operation.

  1.      External belt reel and adaptive reel core makes it easy to install. Besides its automatic strap function can ensure the tape will not be scattered.
  2.      The strapping tension can be set from 30N to 70N by the adjustment knob.





Specifications

Power Supply

110V/220V 50Hz/60Hz

Machine Size (LWH)

765 x 325 x 406 mm

Frame Size (WH)

360 x 180 mm (standard)

Machine Weight

25kgs

Strap Width

8mm

Strap Thickness

0.4m

Strapping Force

1 to 20 kgs (maximum)

Strapping Type

PP/PET

Cycle Time

3 seconds/cycle

Packing Weight

5kgs (maximum)
