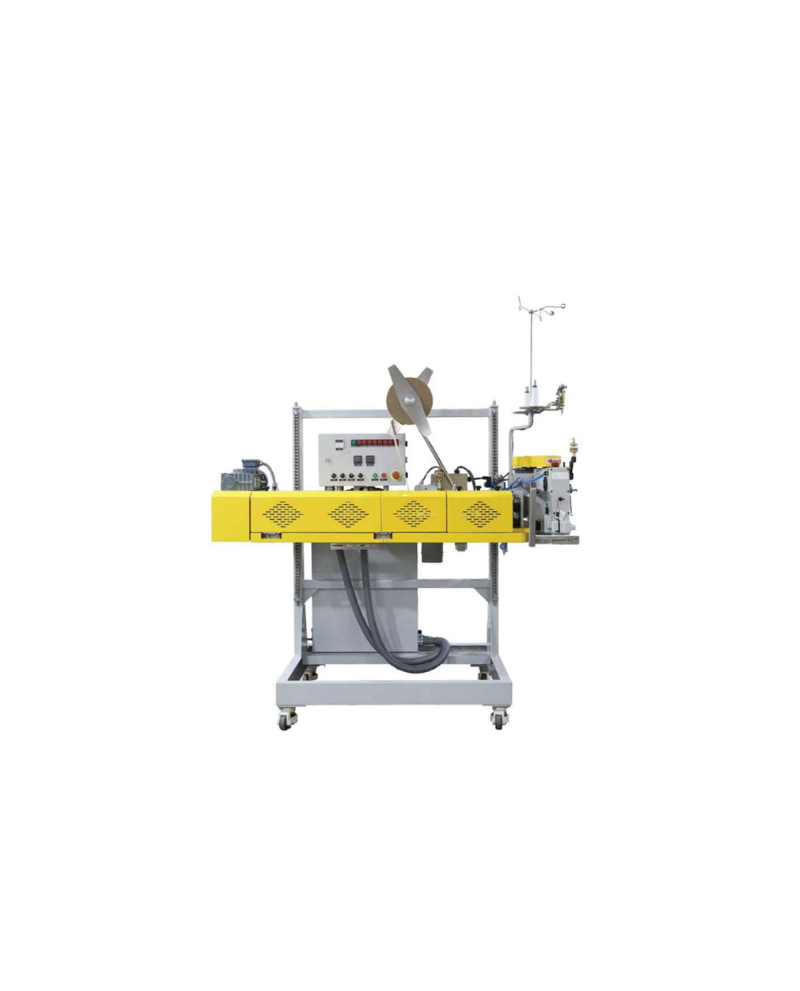

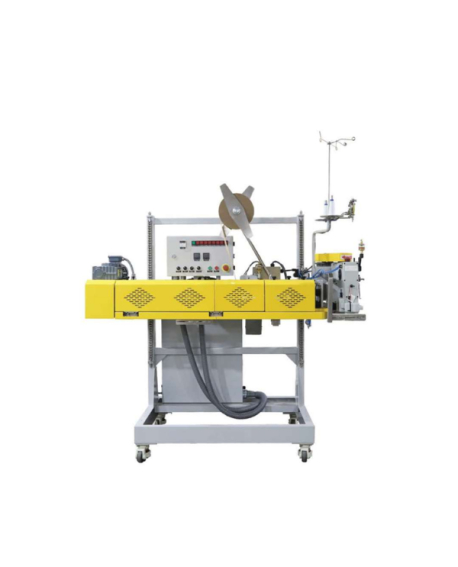

STEP FBK-12C One-Line Sealing and Stitching Automatic Packaging Machine

42853010

New

FBK series automatic sewing and enveloping sealer for heavy-duty bag, fit for packing single layer Kraft paper, multi-layer Kraft paper, paper/plastic laminated bag.

More details

This series machine adopts the advanced technology of light, electricity, and mechanism to guarantee its full automation and high performance.

Specification Details

Model

STEP FBK-12C One-Line Sealing and Stitching Automatic Packaging Machine

Voltage (V/Hz)

(3PH) AC380/50

Gross Power (kW)

3.5

Motor Power of Sewing Machine (kW)

0.37

Sealing Speed (m/min)

8.5  (11  can be customized)

Height from Sealing Center to the Floor (mm)

800 ~ 1400

Air  Source Pressure (Mpa)

0.6

Heating Power (kW)

0.5 x 4

Temperature Range

0 ~ 300

Applications

Multi-layer paper bag, paper PE compound bag and 2 in 1 or 3 in 1 bag

Height Space Request of Bag Top (mm)

180

Dimension ( L x W x H ) (mm)

2200 x 950 x 1800

Net Weight

400

Item Number

42853010
